GXG600 Model 304 Stainless Steel Agitated Filter Dryer Multifunctional

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE、ISO9001
Model Number GXG 600 ( 3 IN 1 )
Minimum Order Quantity One set
Price USD $ 35389 per set
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alias Filtering And Washing Machine Material SS304
Operation Fully Enclosed Discharge Controlled By Automatic Discharging Valve System
Filter Area 0.28 M2 Shell Diameter 600 Mm
High Light

304SS Agitated Nutsche Filter

,

Multifunctional Agitated Nutsche Filter Dryer

,

Agitated Nutsche Filter And Dryer

Leave a Message
Product Description


GXG600 model 304 stainless steel multi-functional agitated filter dryer

 Description of Feed slurry

Slurry name:

Feeding temperature:                            ℃ Density:                     Kg/m3

pH Value: Viscosity:                                 cPs

Name of liquid phase in slurry:________________________

Density:_____________________ Kg/m3

The liquid phase Weight percentage in the slurry ______________% w/w

Atmospheric boiling point:________________

Toxicity and Flammability:□low toxicity □toxic

□highly toxic □combustible □inflammable

□flammable and combustible

Name of solid phase in slurry:________________________

Density:________ Kg/m3 Range of particle size ____________

Solid phase Weight percentage in the slurry _____________% w/w

Characteristics of solid:□ crystal □colloidal □ropiness □grind

Crystallization shape:_____________________

Crystallization temperature :_______________

Melting temperature:________

Bulk density of cake:_________ g/L

Bulk density of dry cake :_________ g/L

Toxicity and Flammability:□low toxicity □toxic

□highly toxic □combustible □inflammable

□flammable and combustible

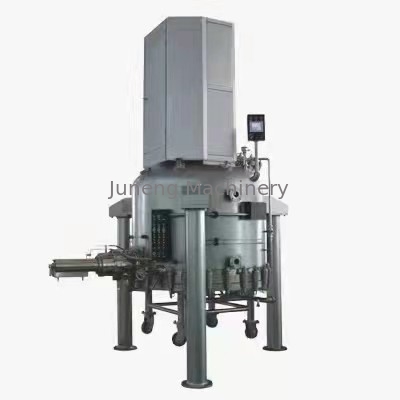

GXG600 Model 304 Stainless Steel Agitated Filter Dryer Multifunctional 0



Process steps

1 . Feeding

Open the feeding valve to feed in the tank, paddle should be in the upper position when feeding, if necessary, can be lowered stirring paddle for low speed stirring, so that the material is evenly distributed. When the material reaches the specified process stop feeding, close the feed valve

2 . Washing

Washing fluid at 0.2 ~ 0.3MPa pressure by the rotating nozzle cleaning, and stirring paddle has been suspended high.

Slurry washing: When a certain amount of washing liquid after the accession to stop adding gradually lower stirring paddle and pulp slurry at an appropriate speed stirring. Stir continuously from top to bottom.

3 . Filter

After washing, upper the stirrer to related position, stop stirring, the liquid will be discharged from bottom. Then repeat the filtering steps until you get perfect material.

If filter finish,make the material is similiar, then make the stirrer blade upper from material surface about 20mm.

4 . Drying

a . open hot water valve, then balance valve, nextly vacuum valve.

b . Pls open the balance valve in advance if upper vacuum down drying condition, to ensure pressure balance. to Concentration of chloride ions in the heating and cooling water should be strictly controlled, to avoid chloride ions on the jacket and the tank corrosion. Pls use of chloride-free water.

c . Open the jacket water inlet valve slowly, and open slightly for water outlet valve. Fully open them when outlet and inlet has temperature gap less than 20℃ to avoid cavitation vibration.



GXG600 Model 304 Stainless Steel Agitated Filter Dryer Multifunctional 1

5 . Material discharge

Sampling analysis before discharge, if ok, then discharge them.

First turn off the heating water valve, slowly open the cooling water valve. Slowly lower the stirring paddle, stirring material accelerated cooling, then the vacuum pump can be opened to exhaust heat.

Before open the discharge valve, pls fill pure nitrogen for balance protection. when the pressure is atmospheric pressure, the impeller through the thrust reverser action, the material discharged from the discharge valve.

GXG600 Model 304 Stainless Steel Agitated Filter Dryer Multifunctional 2

Description

In order to meet the confined production process, filtering washing machine, two -in-one filter has been developed. This production system can realize half automatic or complete automatic operation control.

Maily used for crystallization liquid filtration, washing, drying process. It includes: feeding, beating, filtering, washing, discharging, on-line inspection (optional), etc key steps to prepare for the cleanroom of next mixing process. Besides this Nutsche Filter Dryer also has CIP, SIP functions.


Application

It could be used in various field such as fine chemical, petroleum, printing, foodstuff and pharmaceutical industries and so on.

Nutsche filter dryer are widely used for critical high purity separations of liquids and solids, and now being used in the cbd oil industry.

It is widely used for final step of cbd oil purity process. With pur critical operation as final step, the cbd crystalizing isolation can reach above 98%.



Technical paramaters

 Model  GXG 600 ( 3 IN 1 )
 Filtration area  0.28 m2
 Shell diameter  600 mm
 Work pressure  -0.1~0.3 Mpa
 Nominal volume  0.2 m3
 Filter ckae height  150 mm
 Operation temprature  0~160℃
 Discharge method  Controlled by discharge valve
