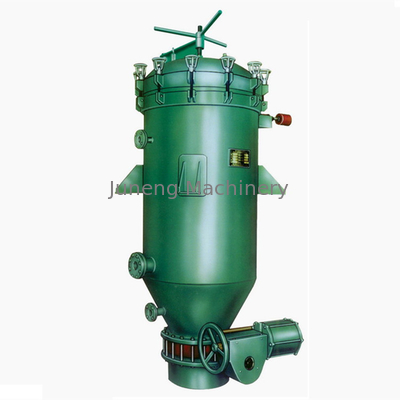

NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration

  • NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration
  • NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration
  • NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration
  • NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration
Place of Origin Jiangsu，China
Brand Name Juneng
Certification ISO/CE
Model Number NYB
Minimum Order Quantity 1 set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 30 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Vertical Pressure Leaf High Efficiency Plate Type Hermetic Filter Function Oil Filter
Structure Leaf Filter Capacity 500-100000LPH
Filtration Area 2m2-100m2 Design Temperature ≤150℃
Design Pressure 0.5Mpa Inlet/outlet Size DN25 DN40 DN50 DN65 DN80
Material Carbon Steel Or Stainless Steel 304
High Light

Crude Oil Decoloration Leaf Pressure Filter

,

NYB Vertical Pressure Leaf Hermetic Filter

,

Leaf Plate Type Hermetic Filter
Leave a Message
Product Description

NYB vertical pressure leaf high efficiency plate type hermetic filter for crude oil decoloration

1.Product Description

NYB high efficiency plate type hermetic filter is a high - efficient , energy - saving and hermetically operated fine filter equipment.This equipment has the advantages of unique structure , compact volume , high efficiency , high transparence of filter liquor , good fineness , no material wastage , without consumption of filter paper , filter cloth and filter element , so the filtering cost is very low and it is convenient to operate , maintain and clean.

NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration 0



2.Decoloration and dewaxing process oil and grease

NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration 1



3.Main technological parameters

 Model

 Filtration area (㎡)

 Filter cake volume (L)
Treatment Capacity
Work Pressure (Mpa)

 Work temperature (℃)

 Machine volume (L)

Machine weight

(Kg)


Oil

 Resin

 Beverage

 Rated pressure

 Max pressure

 NYB-2

 2
30

0.4-0.6

 1-1.5

0.1-0.4












0.1-0.4







0.5







≤150
120
 300

 NYB-4

 4
60

0.5-1.2

 2-3

2-5
250
 400

 NYB-7

 7
105

1-1.8

 3-6

4-7
420
 600

 NYB-10

 10
150

1.6-3

 5-8

6-9
800
 900

 NYB-12

 12
240

2-4

 6-9

8-11
1000
 1000

 NYB-15

 15
300

3-5

 7-12

10-13
1300
 1300

 NYB-20

 20
400

4-6

 9-15

12-17
1680
 1700

 NYB-25

 25
500

5-7

 12-19

16-21
1900
 2000

 NYB-30

 30
600

6-8

 14-23

19-25
2300
 2500

 NYB-36

 36
720

7-9

 16-27

23-31
2650
 3000

 NYB-40

 40
800

8-11

 21-34

30-38
2900
 3200

 NYB-45

 45
900

9-13

 24-34

36-44
3200
 3500

 NYB-52

 52
1040

10-15

 27-45

42-51
3800
 4000

 NYB-60

 60
1200

11-17

 30-52

48-60
4500
 4500

 NYB-70

 70
1400

12-19

 36-60

56-68
5800
 5500

 NYB-80

 80
1600

13-21

 40-68

64-78
7200
 6000
NYB-90 90   1800 14-23 43-72 68-82         7700 6500





4.Decloration and dewaxing process of oil and grease

NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration 2.





5.Main application

1 . Filtration of pressed crude oil and remove mechanical impurities
2 . Filtration of decolored oil and grease with carclazyte





6.Main features

1.With no cloth and filter paper, it greatly reduces filtration costs.
2.The fully closed operation is environmentally friendly without material loss
3.Vibration residue falling greatly reduces labor intensity and realizes continuous operation
4.Residue discharging through the pneumatic valve greatly reduces labor intensity of workers.
5.The residues in the liquids are subject to activated carbon (carclazyte) filtering or bleaching filtering. It can completely replace the plate and frame filter and is a revolutionary device in the filter industry.





7.Detailed images

Stainless steel filter leaf.



Filter leaves installed at the centre liquid pipe are made by multilayer stainless steel which have long service time and could be cleaned up and replaced conveniently.

NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration 3
NYB Vertical Pressure Leaf Plate Type Hermetic Filter For Crude Oil Decoloration 4

Stainless steel butterfly valve.



A whole filter system is made up of NYB type filter, mixing cylinder, transfer pump, piping, valve, electric control system and some assistant equipments.



The filter techniques shall be decided by filter medium.
