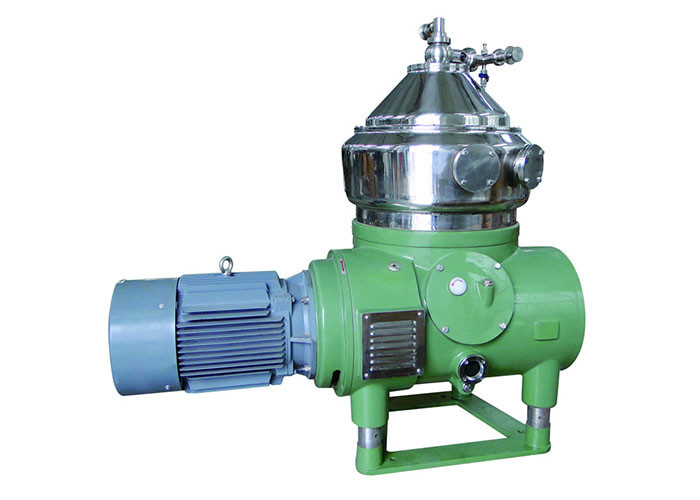

DPFX Series Continuous Discharge Nozzle Separator High Speed Precision

Place of Origin Jiangsu,China
Brand Name Juneng
Certification CE、ISO9001
Model Number DPFX
Minimum Order Quantity One set
Price Negotiable
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT, L/C
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Continuous Discharge Nozzle Separator Power(kw) 15、30、45、75、90
Voltage As Need Material Stainless Steel
Principle Solid-liquid Two Phase Separation Characteristic High Solid Content(max.20%)
High Light

Discharge Nozzle Separator

,

High Speed Discharge Nozzle Separator

,

Continuous Discharge Nozzle Separator

Leave a Message
Product Description

DPFX series stainless steel high speed/precision/efficiency continuous discharge nozzle separator



1.Product description:

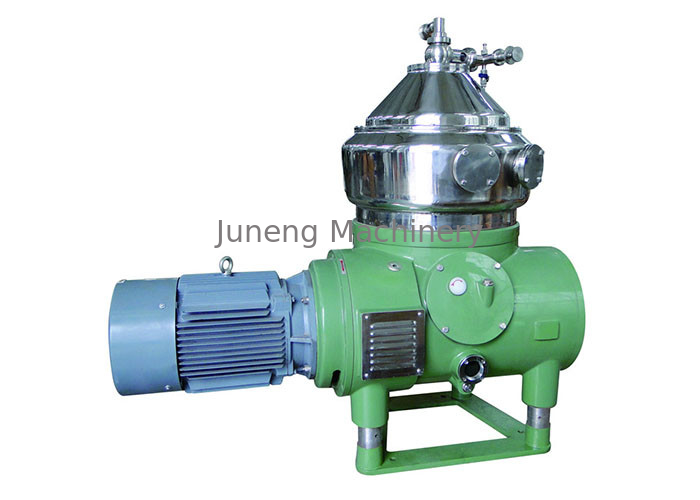

DPFX Series Continuous Discharge Nozzle Separator High Speed Precision 0
SAPARE PARTS
1. O rings
6. Sight glass
2. Bearings
7. Nylon ring
3. Vertical shaft
8. Metal hose
4. Horizontal shaft
9. Pressure gauge
5. Drum disc
10. Motor

Juneng DPFX series nozzle separator is a kind of continuous discharge separator. It features of high speed, high precision and high efficiency.

Outside of the bowl wall, several nozzles are installed. Under the centrifugal force formed by high rotation speed of bowl, insoluble solids which deposit in the sediment chamber will be discharged out continuously.



DPFX series separator is suitable for solid-liquid two phase separation and concentration which with high solid content (max.20%),such as fermentation liquor, alga, kaolinic and so on.





2.Working principle:

This separator is suitable for solid-liquid two phase separation andconcentration which content highsolid content(max.20%), such asfermentation liquor, alga, Kaolinic,and so on.



DPFX Series Continuous Discharge Nozzle Separator High Speed Precision 1

3.Technical data:

Model

Treatment capacity(m³/H)

Inlet pressure(MPa)

Outlet pressure(Mpa)

Motor power(kw) Weight(kg) Outline dimension(mm)

DPFX430

5-20

0.2

≤0.2

15 1250 1519*862*1484
DPFX445 5-25 0.1 ≤0.2 30 1300 1386*1265*1484
DPFX470 7.5-30 0.2 ≤0.2 30 1720 1780*1154*1710
DPFX550 25-30 0.2 ≤0.2 45 2500 1860*1300*1860
DPFX630 30-70 0.1 ≤0.2 75 3000 2130*1595*2242
DPFX720 45-90 0.2 ≤0.2 75,90 3200 2130*1595*2242







4.Performance characteristics and application scope of separator



(1)All parts in contact with materials are made of high-grade stainless steel, which can effectively reduce the corrosion of the separated materials and the surface of the parts in contact, and meet the requirements of food hygiene. The separated light phase material is output by the centripetal pump, and the maximum output pressure can reach 0.3MPa. The machine adopts the form of upper feeding and has low requirements for the inlet pressure of materials.



(2)Drive the motor to the rated speed with the frequency converter, and drive the motor to run slowly and stably.



(3)The slag discharge action of the sliding piston is automatically controlled by computer program and PLC, which can realize partial slag discharge and full slag discharge. The amount of partial slag discharge can be adjusted, the degree of automation is high, the adaptability to process adjustment is strong, the adjustment is convenient, and the operation labor intensity of workers can be greatly reduced.



DPFX Series Continuous Discharge Nozzle Separator High Speed Precision 2

5.Introduction of Company:



Juneng Group has set-up a 1st class in-house laboratory for chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetism inspection, ultra-sonic inspection and etc. This is to imply with the latest advance instrumentations and rigorous working attitude to ensure every part of product is stable and reliable.



6.1 Packing

DPFX Series Continuous Discharge Nozzle Separator High Speed Precision 3



6.2 Exhibitions We Attended.

DPFX Series Continuous Discharge Nozzle Separator High Speed Precision 4DPFX Series Continuous Discharge Nozzle Separator High Speed Precision 5
