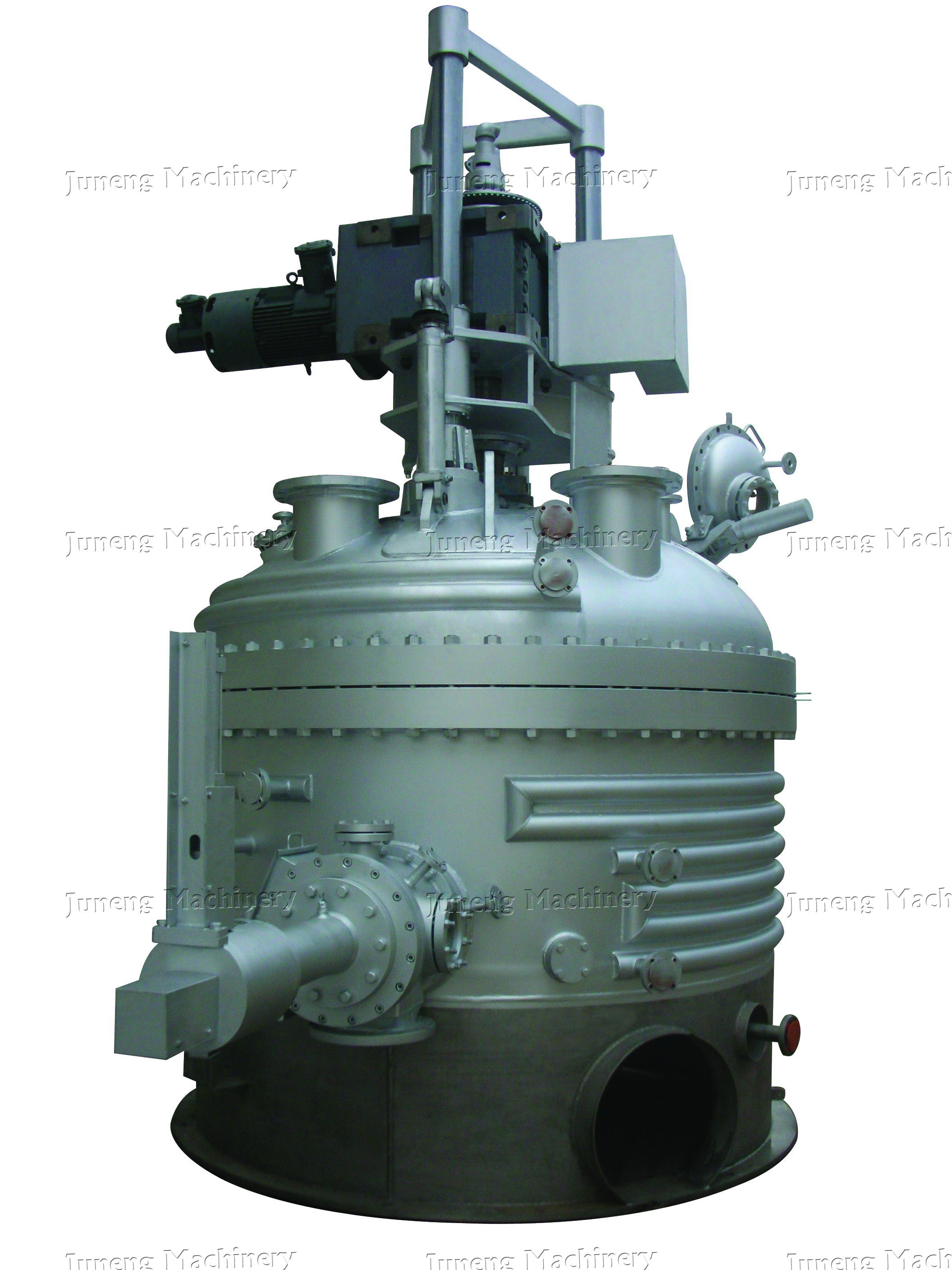

Muti Functions Agitated Nutsche Filtration Washing Dryer Machine

  • Muti Functions Agitated Nutsche Filtration Washing Dryer Machine
  • Muti Functions Agitated Nutsche Filtration Washing Dryer Machine
  • Muti Functions Agitated Nutsche Filtration Washing Dryer Machine
  • Muti Functions Agitated Nutsche Filtration Washing Dryer Machine
Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number GXG
Minimum Order Quantity 1 set
Price USD36000-200000/set
Packaging Details seaworthy packing
Delivery Time 60 work days
Payment Terms L/C, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Muti-functions Agitated Filtration Washing Dryer Filter Machine Service Machinery Overseas Material Carbon Steel, Stainless Steel 304/316, Hastelloy
After Warranty Service Video Technical Support, Online Support, Spare Parts Structure Vertical Compact Structure
Function Seperation Type Liquid Filter
High Light

Agitated Filtration Washing Dryer Filter

,

Muti Functions Agitated Nutsche Filter Dryer

,

Agitated Nutsche Filter Dryer Machine
Leave a Message
Product Description

Muti-functions agitated filtration washing dryer filter machine



1.Product Description

GXG series multi-functions filtering,washing,drying(three in one)machine is a solid-liquid equipment with the functions of filtration,washing,drying reaction and residue discharging automatically. This filter can be divided into two in one structure ( filtering and washing) and three in one structure (filtering, washing and drying).

Muti Functions Agitated Nutsche Filtration Washing Dryer Machine 0



2.Applications

It is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.





3.Main technological parameters

Model
Filtration area ㎡

 Shell
diameter (mm)


 Work
pressure (Mpa)


 Nominal
volume (m3)


 Filter cake
height (mm)

GXG-600
0.28
600
-0.1~0.3
0.2
150
GXG-800
0.5
800
-0.1~0.3
0.5
180
GXG-1200
1.1
1200
-0.1~0.3
1.3
250
GXG-1600
2.0
1600
-0.1~0.3
2.8
350
GXG-2000
3.1
2000
-0.1~0.3
4.8
400
GXG-2400
4.5
2400
-0.1~0.3
6.5
450
GXG-2600
5.3
2600
-0.1~0.3
8.7
450
GXG-2800
6.0
2800
-0.1~0.3
12
450
GXG-3000
7
3000
-0.1~0.3
13
500
GXG-3200
8
3200
-0.1~0.3
14.5
500
  GXG-3400   9   3400   -0.1~0.3    15    500
  GXG-3600   10   3600   -0.1~0.3    20    500
  GXG-3800   11.3   3800   -0.1~0.3    23    500







4.Main features

1) Solid-liquid separation can be realized under pressure or vacuum state. Filter cakes evenly distributed when filtering which has good effect.

2) Full enclosed filter, no leakage, no pollution

3) Stirring system can stepless speed regulating and multi-function work. It can enlarge furthest for the cake space, thus filter cake can be fully cleaned; the time of drying is reduced greatly, with high efficiency.

4)Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.

5) Discharge valve can discharge automatically which can lower labor intensity.

6) Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.

7) Adopting horizontal placing filter material, one time completely filtering no remains. Filter material has unique sealing structure which is easy to be changed.

8)Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.







5.Our company

Muti Functions Agitated Nutsche Filtration Washing Dryer Machine 1

Branch of Juneng in Nanjing

Juneng Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation .
