DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number DHZ470
Minimum Order Quantity 1 set
Price USD23000-150000/set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Juneng DHZ Series Stainless Steel Solid-liquid Separation Disc Centrifuge For Olive Oil Core Components PLC, Engine, Bearing, Motor
Dimension(L*W*H) 1800*1200*1800mm Capacity 100-150 T/D
Application Vegetable Oil After-sales Service Provided Field Installation, Commissioning And Training
High Light

Disc Centrifuge For Olive Oil

,

DHZ Series Disc Oil Separator

,

Stainless Steel Disc Oil Separator

Leave a Message
Product Description

Juneng DHZ series stainless steel solid-liquid separation disc centrifuge for olive oil



1.Product description

This separator is widely used for degumming, desoaping and water washing in vegetable oil continuous refining process, is one of the best equipment for modern oil refining.



Meanwhile, it is also applicable for separating suspension liquid e.g. two liquids, liquid and solid that have different specific gravities in such industries as light industry, chemical, medicine and food, etc.

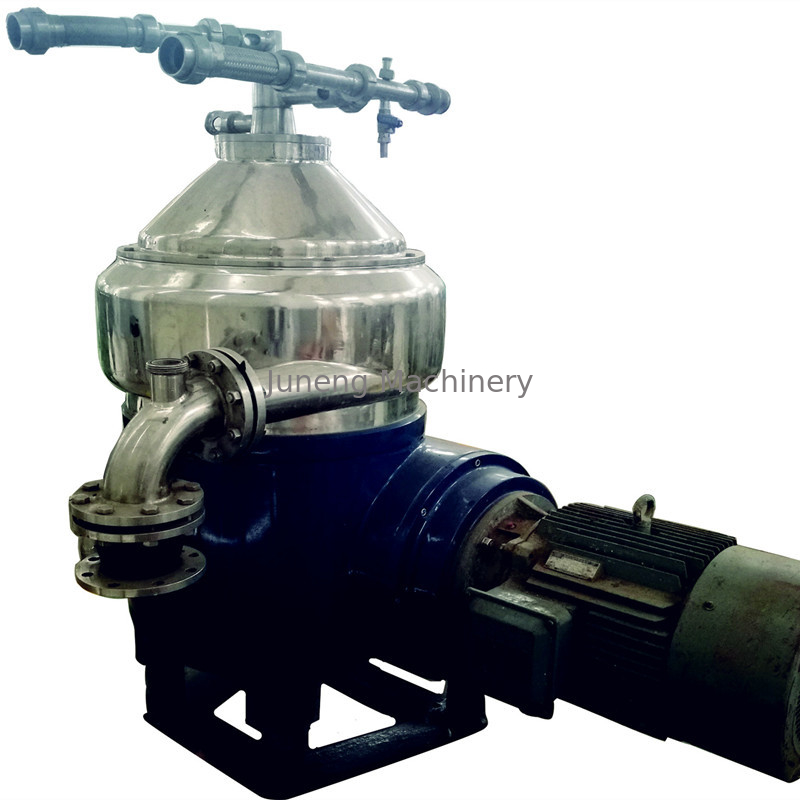

DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 0




2.Technical data

Model

DHZ470

Speed of drum

Approx. 6600 rpm

Capacity (m3/h)

3-10

Equivalent settling area

72x107cm²

Motor power (Kw)

15

Weight

~1880Kg








3.Operation principle

The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the material (hybrid liquid) passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface, the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the soap residue will flow toward the big centripetal pump. The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump.





4.Production process

DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 1
DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 2
DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 3

Separator process workshop



Drum processing



Process center



DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 4
DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 5
DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 6

Ultrasonic testing



Dynamic balancing test



Assembling

5.Test & Inspection



QA & QC / Test

1. Material Test Report 6. Spare Parts Inspection

2. Magnetic Particle Examination 7. Nondestructive Examination

3. Metallographic Analysis Sampling 8. Dynamic Balancing Test

4. Liquid Penetrant Examination 9. Radiographic Examination

5. Over Speed Test 10. Performance Test



DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 7



DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 8







DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 9





DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 10





DHZ Series Disc Centrifuge For Olive Oil Stainless Steel Solid Liquid Separation 11
