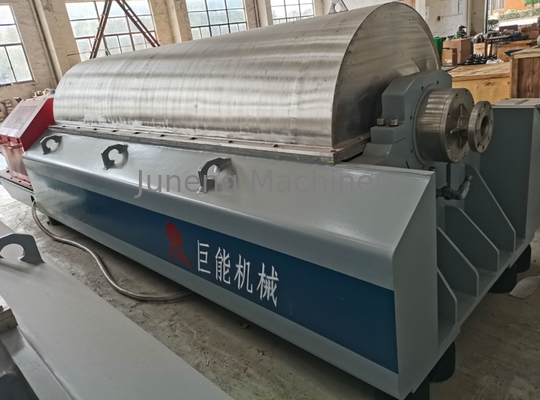

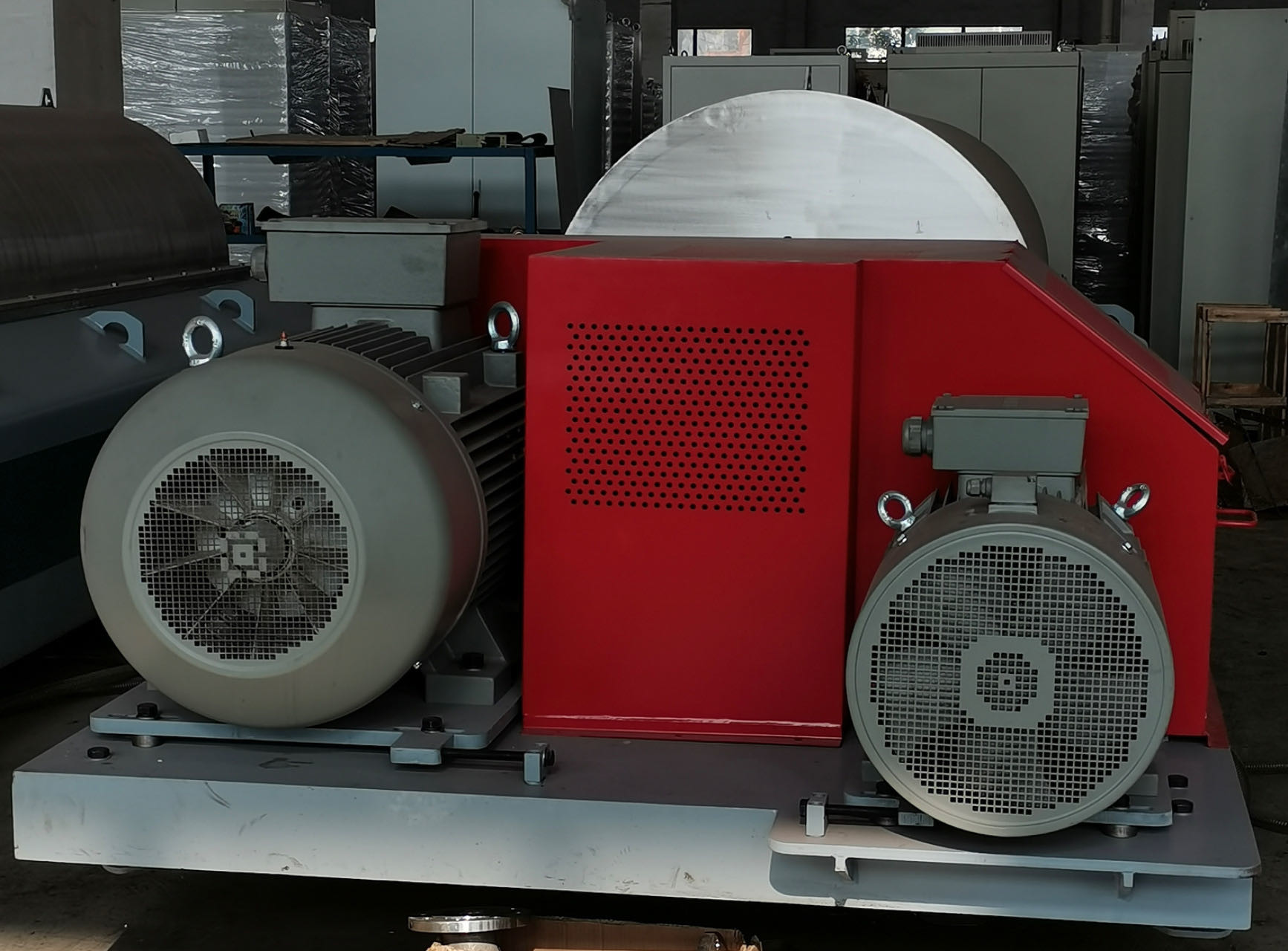

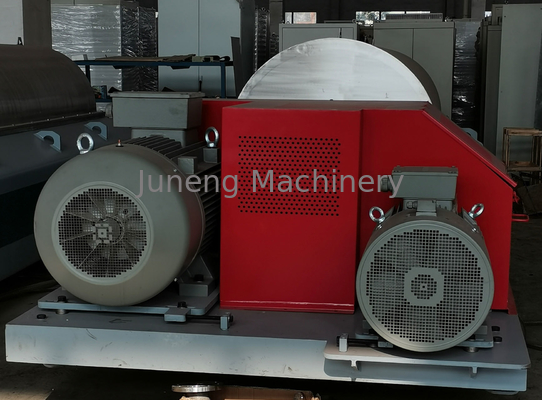

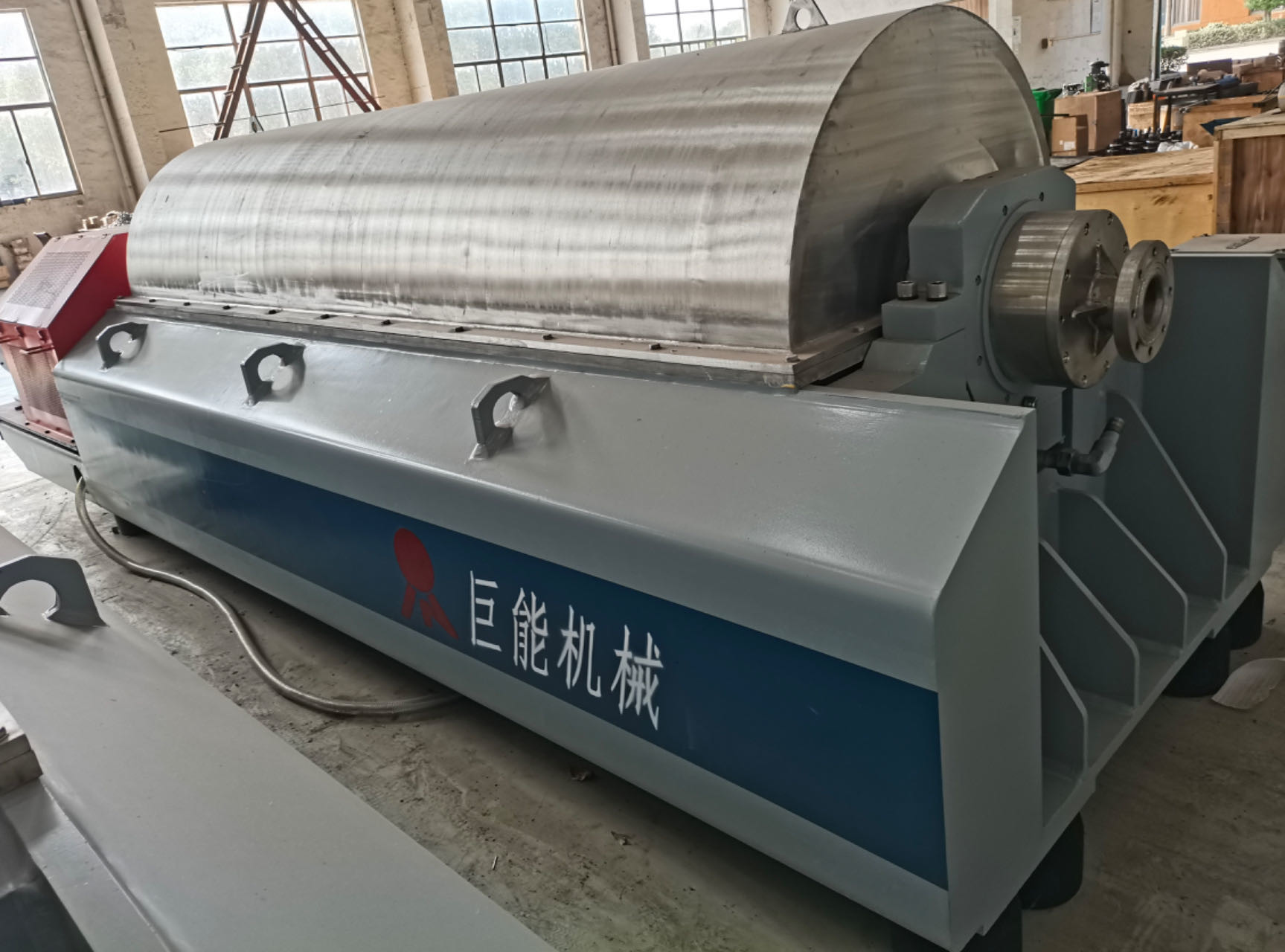

Solid-Liquid Separation Decanter Centrifuge Stainless Steel Three Phase 620mm
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | Juneng |
| Certification | CE/ISO |
| Model Number | LWS620 |
| Minimum Order Quantity | 1 set |
| Price | USD15000~100000/set |
| Packaging Details | seaworthy packing |
| Delivery Time | 60 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Solid-liquid Separation Stainless Steel Three Phase Decanter Centrifuge 620mm | Material | Stainless Steel |
|---|---|---|---|
| Main Motor Power(kw) | 90 | Vice Motor Power(kw) | 22 |
| Dimension(L*W*H)(mm) | 4950*1900*1450 | Weight(kg) | 8500 |
| Bearing | SKF | ||
| High Light | Solid-Liquid Separation Decanter Centrifuge,Decanter Stainless Steel Centrifuge,620mm Decanter Steel Centrifuge |
||
Product Description
solid-liquid separation stainless steel three phase decanter centrifuge 620mm
Introduction
Centrifugal sedimentation is the working principle of this centrifuge, it can separate two phases (suspended solid liquid and liquid) or three phases (solid-liquid-liquid), solid phase is pushed out by spiral continually; this equipment is a constant and high effective equipment which used in separating solid-liquid.
Technogical parameters
Working principle
Three phase decanter centrifuge
The centrifuge consists of two rotors ,one is called " drum " , and the other is " screw unloader " ( referred to as a screw ) . When the drum rotate at high - speed , with the slurry along the drum , by centrifugal force , and this centrifugal force is many times greater than gravity , so that the solid particles will be separated from the liquid in the centrifuge drum axis , sedimentation to the inner wall of the drum . A screw unloader located in the drum rotates below the speed of the drum and pushes the deposited solid particles to the slag outlet . The differential speed between the outer drum and the screw unloader ( affects the slag pushing Speed ) depends on the gear ratio of the differential and its speed . The two - phase liquid is divided into two layers by centrifugal force . The heavy phase layer is drawn out by the centripetal pump against the wall of the drum and discharged from the heavy phase outlet . The light phase layer is close to the screw end , thrown out by centrifugal force from the overflow port , and then discharged from the light phase outlet . The whole work is continuously completed between the closed upper and lower shells .
Product process
Separator process workshop
Drum processing
Process center
Ultrasonic testing
Dynamic balancing test
Assembling
Product structure
Product structure
The centrifuge is a countercurrent horizontal spiral discharge sedimentation centrifuge for sludge dewatering. The main engine is composed of drum (stainless steel 2205), screw (stainless steel 2205+316L) and differential system. The differential speed is automatically fed back and adjusted according to the load change, and the pushing power is automatically compensated to ensure the constant dryness of the solid slag and get a drier solid slag.
It is poured by an integral centrifuge, and then processed by precision turning after solution treatment. The solid phase slag discharge port is equipped with replaceable tungsten carbide wear-resistant bushing. The inner wall of the centrifuge drum is welded with anti-skid wear-resistant strips to prevent the solid particles from tangential rotation and wear on the inner wall of the drum.
Advantages.
1. Lower cake transportation costs due to very dry solids
2. Better recovery of nutrients due to very high separation efficiency
3. Lower fresh water consumption compared to other processes
4. Continuous and fully automatic operation
5. 24 h operating reliability
6. Optimum wear protection
7. Energy saving design
8. Easy to operate
9. Easy to maintain
10. Simple assembly/dismantling
Application
1. Washing and dehydration of starch
2.Dehydration of soybean wheat proteins
3.Dehydration of fish meal and fish
4.Dehydration of brewers' grains
5.Purification of juice and dehydration of fruit fiber
6.Separation and purification of animal and vegetable oil
7.Separation and purification of coal tar
8.Clarification and purification of gypsum
9.Classification and dehydration of starch
10.Classification and dehydration of Kaolin and graphic
11.Classification and dehydration of dyes and pigments
12.Classification and dehydration of mineral thick liquid
Our company
| Product Name | |
| Centrifuge | |
| Dryer |
Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.
