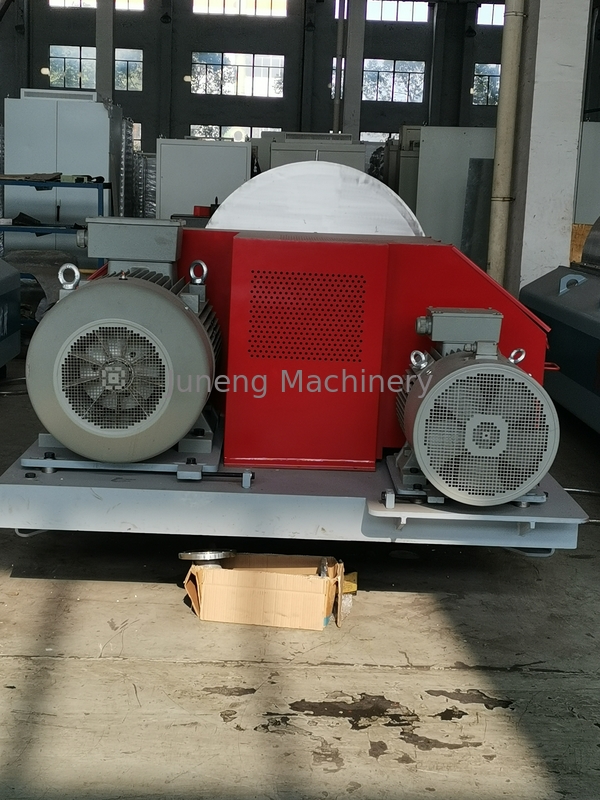

Household Kitchen Waste Disposal Decanter Centrifugal Dewatering Three Phase

Household kitchen waste disposal centrifugal dewatering three phase decanter centrifuge

Introduction

The horizontal spiral discharge sedimentation centrifuge is a mechanical equipment that uses the principle of centrifugal sedimentation to continuously separate the materials containing density difference in the suspension.

Juneng was engaged in solid-liquid separation in 1983, among which the horizontal spiral centrifuges were widely used in various industries: kitchen waste, gutter oil, aerobic excess sludge dewatering, anaerobic excess sludge dewatering, plant extract clarification, cyanobacteria treatment, sludge dewatering, medical fermentation liquid treatment, PVC dewatering, kaolin grading, starch concentration, petroleum and petrochemical, mining, construction and other industries, ensuring the quality of Juneng machinery.

Technogical parameters

Working principle

The centrifuge consists of two rotors,one is called "drum", and the other is "screw unloader "(referred to as a screw). When the drum rotate at high-speed, with the slurry along the drum, by centrifugal force, and this centrifugal force is many times greater than gravity, so that the solid particles will be separated from the liquid in the centrifuge drum axis, sedimentation to the inner wall of the drum. A screw unloader located in the drum rotates below the speed of the drum and pushes the deposited solid particles to the slag outlet. The differential speed between the outer drum and the screw unloader (affects the slag pushing Speed)depends on the gear ratio of the differential and its speed. The two-phase liquid is divided into two layers by centrifugal force. The heavy phase layer is drawn out by the centripetal pump against the wall of the drum and discharged from the heavy phase outlet.The light phase layer is close to the screw end, thrown out by centrifugal force from the overflow port, and then discharged from the light phase outlet. The whole work is continuously completed between the closed upper and lower shells.

Advantages of Juneng Decanter Centrifuge

1.All-round anti-wear protection, wear-resistant parts are equipped to the drum inner wall, slag outlet, outer circle of the slag discharge port, the spiral blade, and the spiral distributing port etc. which are easy to replace on site and greatly reduce maintenance costs.

2.According to the characteristics of the product (processing material)working conditions, optimize the drum length to diameter ratio, speed and drum cone structure.

3.Intelligently adjust the differential speed and torque according to the product concentration and flow changes. When the feed concentration changes during the dewatering process,the centrifuge can intelligently adjust the slip and torque of the drum and screw.
4.Choose a planetary gear differential with heavy load and large transmission ratio.
5.The centrifuge, occupying a small space, is simple to install and debug. This machine is fully sealed operated, which create thegood production environment.
6.The double frequency conversion control is adopted by the main motor and the differential device auxiliary motor to
realize stepless speed regulation, which is applicable to a wide range of materials.

Application area

Our company





Product Name	Juneng Machinery Factory
Centrifuge	Juneng Machinery (China) Co.,Ltd(Nanjing)
Filter	Jiangsu Juneng Machinery Co.,Ltd(North)
Dryer	Juneng Machinery (China) Co.,Ltd(Nanjing)



Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.
