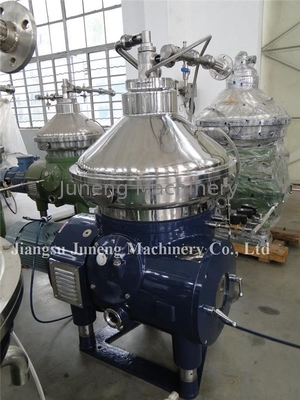

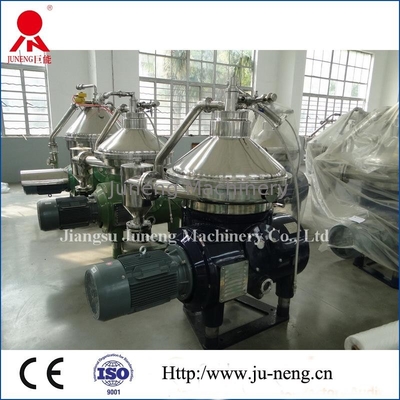

Disk Bowl Centrifuge Oil Separator , Automatic Separator Machine For Fish Meal

Place of Origin Jiangsu China
Brand Name Juneng
Certification ISO CE
Model Number DHYY360, DHYY470,DHYY550,DHYY700
Minimum Order Quantity 1 set
Price USD 10000-100000
Packaging Details Packed by international standard fumigation wooden case
Delivery Time 30 days after order
Payment Terms L/C, T/T
Supply Ability 1000 set per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Animal Oil Separation Control System PLC Automatic Control
Voltage 220V/380V/400V/440V/460V Power 7.5 Kw, 15 Kw, 22 Kw, 30 Kw
Function Three Phase Separation Warranty Date 12 Months
High Light

disc stack centrifuges

,

oil separator machine

Leave a Message
Product Description

Product Description

Cpmpared with general vegetable oil, animal oil has has its irreplaceable unique flavor that can boost people's appetute. Animal oil contains certain nutrition and provides very high energy. During the dep processing in the breeding industry, the use of separators can help oil recovery in the processing of subsidiary materials, which not only enhances profits, but also reduces pollution emission.
Three separation disc type separator centrifuge for animal oil factory  is mainly used in refining meat oil from animals such as fishmeal facotry,animal oil factory, the capacity from 10t/d~600t/d.
It has advantages of high speed, smooth operating, compact structure, small footprint, all sealed of the inlet and discharge, low noise, good separation. The materials of centrifuge which contact with the parts are stainless steel which meets the requirements of food grade.
Disk Bowl Centrifuge Oil Separator , Automatic Separator Machine For Fish Meal 0

Product Principle
 The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the feed passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface, the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the residue will flow toward the big centripetal pump. The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump.
Disk Bowl Centrifuge Oil Separator , Automatic Separator Machine For Fish Meal 1

Product model list

Model Flowrate Inlet pressure Outlet pressure Power Weight
DHYY360 1200-2500 LPH  0.05 MPA 0.1-0.25 MPA 7.5 KW 1280 KG
DHYY470 2500-7000 LPH 0.05 MPA 0.1-0.25 MPA 15 KW 1880 KG
DHYY550 5000-15000 LPH 0.05 MPA 0.1-0.25 MPA 18.5 KW 2200 KG
DHYY700 15000-30000 LPH 0.1 MPA 0.2 MPA 30 KW 3300KG

Product Advantage
This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
1. Continuous feeding
2. High separation factor
3. Automatic residue discharging
4. Concise bowl design without frequent washing
5. Hydraulic coupling driving with longer service
5. PLC system automatic control
Disk Bowl Centrifuge Oil Separator , Automatic Separator Machine For Fish Meal 2
Application
1. Purifiation of animal fat
2. Purification of fish oil
3. Kitchen waste oil
4. Separation of fish pressed liquid
5. Waste oil
6. Hogwash oil
Disk Bowl Centrifuge Oil Separator , Automatic Separator Machine For Fish Meal 3
Separator on site
Disk Bowl Centrifuge Oil Separator , Automatic Separator Machine For Fish Meal 4

Out team
Disk Bowl Centrifuge Oil Separator , Automatic Separator Machine For Fish Meal 5
Our service
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.
7. Sufficient spare parts in stock are available .
8. Technicians are availabled for overseas service.
9. 24 hours technical consultation .
10. The customer could get trained by our experienced tecnician.
11. Routine tracing will be done timely.
12. Guide you do the normal maintenance.
13. Suggestions and any comments &reflection from customer would be treated in priority.
14. Markting team will visiting if you need.

FAQ
1) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.

2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed,advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing,transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.

3)Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .

4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .

5) Q: What's the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.

6) Q:Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time
