High Efficiency Plate Hermetic Filter Carbon Steel Stainless 13T/H
| Place of Origin | Jiangsu，China |
|---|---|
| Brand Name | Juneng |
| Certification | ISO/CE |
| Model Number | NYB-45 |
| Minimum Order Quantity | 1 set |
| Price | USD20000-50000 |
| Packaging Details | seaworthy packing |
| Delivery Time | 50 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Carbon Steel/ Stainless High Efficiency Low Filtering Cost Plate Type Hermetic Filter | Capacity | 9-13T/H |
|---|---|---|---|
| Filtration Area | 45m2 | Material | Carbon Steel, Stainless Steel |
| Design Temperature | 100-150 ℃ | Design Pressure | 0.5Mpa |
| High Light | High Efficiency Plate Hermetic Filter,Hermetic Carbon Steel Filter,13T/H Hermetic Steel Filter |
||
Product Description

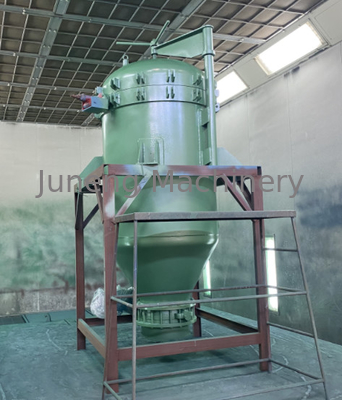

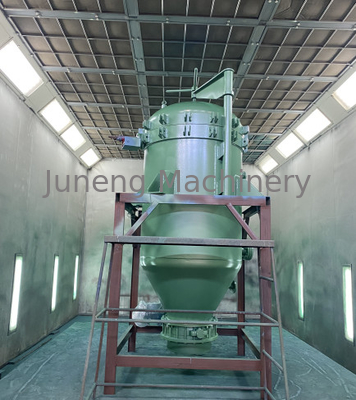

Carbon steel/ stainless high efficiency low filtering cost plate type hermetic filter
Product Application
NYB serial high Efficiency Plate Type Hermetic filter belong to the fine filter, it is designed by advanced technology of similar products at home and abroad and combining the situation in China. They are widely used in lots of industries, such as chemical industry, coating material, petroleum industry, foodstuff, pharmacy and so on.
This equipment with special structure, small occupy volume, high efficiency, and the low filtering cost, and the operation is easy and there is no environmental pollution.
Main technological parameters
|
Parameter name |
NYB-2 | NYB-4 | NYB-7 | NYB-10 | NYB-12 | NYB-15 | NYB-20 | NYB-25 | NYB-30 | NYB-36 | NYB-40 | NYB-45 | NYB-50 | NYB-60 | NYB-70 | NYB-80 | NYB-90 |
|
Filtration area(m2) |
2 | 4 | 7 | 10 | 12 | 15 | 20 | 25 | 30 | 36 | 40 | 45 | 50 | 60 | 70 | 80 | 90 |
|
Reference processing capacity(oil)(T/H) |
0.4-0.6 | 0.5-1.2 | 1-1.8 | 1.6-3 | 2-4 | 3-5 | 4-6 | 5-7 | 6-8 | 7-9 | 8-11 | 9-13 | 10-15 | 11-17 | 12-19 | 13-21 | 14-23 |
|
Reference processing capacity(resin)(T/H) |
1-1.5 | 2-3 | 3-6 | 5-8 | 6-9 | 7-12 | 9-15 | 12-19 | 14-23 | 16-27 | 21-34 | 24-39 | 27-45 | 30-52 | 36-60 | 40-68 | 43-72 |
|
Reference processing capacity(Beverages)(T/H) |
1-3 | 2-5 | 4-7 | 6-9 | 8-11 | 10-13 | 12-17 | 16-21 | 19-25 | 23-31 | 30-38 | 36-44 | 42-51 | 48-60 | 56-68 | 64-78 | 68-72 |
|
Max working pressure(Mpa) |
0.45 | ||||||||||||||||
|
Design pressure(Mpa) |
0.50 | ||||||||||||||||
|
Working temperature℃ |
≤150 | ||||||||||||||||
|
The air pressure needed by the actuating mechanism of the vibrator and butterfly valve(Mpa) |
0.40～0.60 | ||||||||||||||||
| Residual oil in cake after blow dry | ≤20% | ||||||||||||||||
|
Impurities contained in oil |
≤0.01%⑶～0.0005% | ||||||||||||||||
|
External dimensions L×W×H(mm) |
620x600x1550 | 770x740x1800 | 1310x1000x2200 | 1510x1060x2400 | 1610×1250×2500 | 1710×1350×2650 | 1710×1350×2950 | 1810×1430×3020 | 2030×1550×3150 | 2030×1550×3250 | 2130×1560×3350 | 2130x1560x3550 | 2230×1650×3670 | 2310×1750×3810 | 3050x1950x4500 | 3210×2100×4500 | 3300x2200x4650 |
| Weight(Kg) | 300 | 400 | 600 | 900 | 1100 | 1300 | 1700 | 2000 | 2500 | 3000 | 3200 | 3500 | 4000 | 4500 | 5500 | 6000 | 6500 |
The primarystructure
The filter is mainly composed of filtering tank, filter plate, residue discharging mechanism and cover removing mechanism and so on.
Detailed Image
Filter plate
The filter leaves are the main working part of a filter. It is composed of multiple layers of stainless steel gauze with different dimensions and the filtrate channel is located at its center and the periphery of the filter gauze is the rectangle or circular cross section frame made of stainless steel plate which is used as the filtrate collecting channel and is riveted with the filter plate and filter plate frame. There is the joint of the discharge gate at the under-part of the filter gauze that is plugged into the liquid collecting tube. The socket between the joint and the liquid collecting tube is sealed with “O” ring.
Butterfly Valve
Main Features
1.With no cloth and filter paper, it greatly reduces filtration costs.
2.The fully closed operation is environmentally friendly without material loss
3.Vibration residue falling greatly reduces labor intensity and realizes continuous operation
4.Residue discharging through the pneumatic valve greatly reduces labor intensity of workers.
5.The residues in the liquids are subject to activated carbon (carclazyte) filtering or bleaching filtering. It can completely replace the plate and frame filter and is a revolutionary device in the filter industry.
