High Capacity SS304 Scraper Continuous Centrifugal Solid Liquid Separator

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE
Model Number GKH1600
Minimum Order Quantity One set
Price USD $ 129850 / Set
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT
Supply Ability 40 set / months
Product Details
Alias Siphonic Scraper Centrifuge Material SS304
Control Both Automatic And Manual Are Available Operation Periodic Cycle Operation Of Feeding,dehydration,washing And Discharging
Drum Speed 950 Rpm Loading Capacity 996 Kg
High Light

Centrifugal Solid Liquid Separator

,

SS304 Centrifugal Filter Separator

,

Horizontal Scraper Discharging Centrifuge

Leave a Message
Product Description

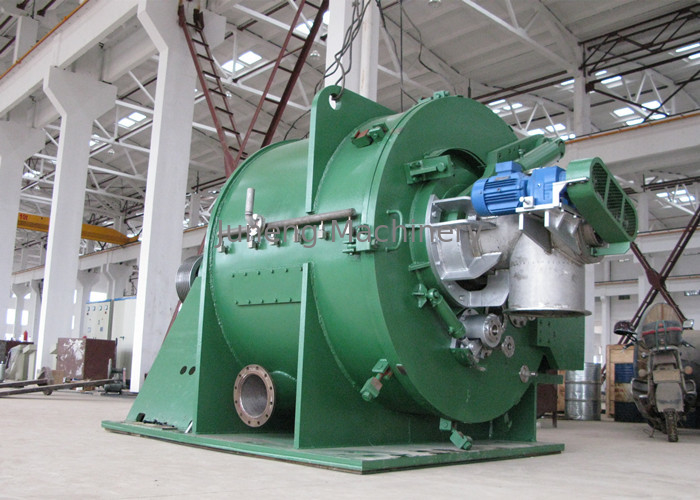

High capacity SS304 scraper continuous centrifugal solid liquid separator





Structures and Properties:

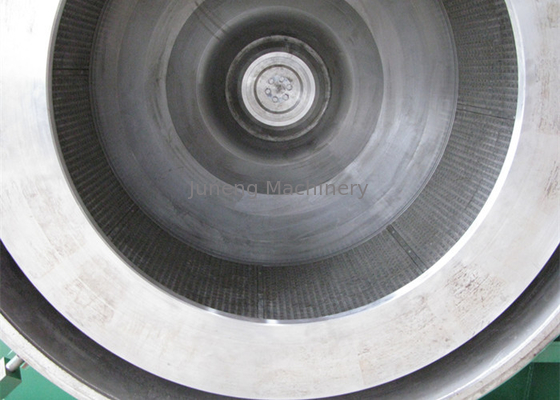

When the drum driven the motor runs at full speed, the feed valve automatically opens up and the suspension liquid goes through the feed pipe into the drum, where the liquid phase passes through the filter gauze and the screen openings on the drum and is kicked off by the centrifugal force and flows out of the tangential discharging outlet, while the solid phase is retained inside the drum.



When the set time is reached, the feeding stops,After a given period of thime of separation and dehydration, the washing valve acts and the deaning liquid passes through the washing pipeinto the drum to wash the filter cake.



Upon the completion of washing, further separation is conducted till the required degree of dryness of the cake is reached. Then discharging starts: The scraper holder rotates enabling the scraper to cut into the cake layer and the cake is scraped off and discharged from the material hopper.



Applications:



Model GKH centrifuge is the filter equipment characterized with continuous running, scraper discharging and intermittenent operation, applicable to the separation of the suspension liquid containing medium sized granules or fine granules(0.01mm- 5mm).



It can also be used for the separating of the suspension liquid containing short fibers(with the fiber length less than 4mm), with the concentration of the suspension liquid being 10%-60%.



With hydraulic and electric joint control mode adopted, this series of centrifuges are capable of high degree of automization, with such working processes as by means of PLC for full automatic control.



The horizontal scraper discharging centrifuge has good adaptability to the material to be processed and thus can be widely used in such industrial fields as chemical, light industry, food, pharmacy, etc. for the separating of over 100 kinds of substances including ammonia sulphate, sodium sulphate, anthracene, boric acid, starch, pesticide, synthetic resin, sodium cyanide, potassium chloride, sodium bicarbonate, etc.



Successfully Application



Starch Vitamin B
VC natrium Calcium phosphate
Saleratus Polyacrylonitrile





Technical Paramaters



Mofel GKH 1600
Drum diameter 1600 mm , about 62.99 inch
Drum length 1000 mm , about 39.37 inch
Drum speed 950 rpm
Maximun separation factor 799
Motor power 132 Kw
Loading capacity 996 Kg
Weight 16550 Kg
Wet base capacity 6.5-10 t / h
Moisture 5-35 %
Solid phase loss ≤ 0.05%



Features



GKH series siphonic centrifuge is especially used in the occasion of the higher production, lower moisture in residue of the cake and sufficient washing.



It is widely used in industry area of the solid-liquid separation of the raw material and intermediate products, such as foodstuff, pharmacy, chemical, national defence and so on.



Juneng Machinery



The Company now has its 4 production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation.



Now we are working on the stock of the hot equipment , trying our best to shorten the delivery time.





Exhibition



We are the big fan of the exhibitions at home and overseas,  such as AchemAsia 2019,  Canton Fair , Achem , Food Tech 2019 etc.







High Capacity SS304 Scraper Continuous Centrifugal Solid Liquid Separator 0





Our service



1 . Compliance to delivery lead time



2 . 12 months guarantee period from machine arriving date.



3 . The customer could get trained by our experienced tecnician



4 . We always keep certain inventory level of spare parts, which means the replacement can be sent to you timely



Cetificate



ISO 19001 : 2005, ISO 14001 : 2015, OHSAS 18001 : 2007,



ASME U 38793



CE



BV
