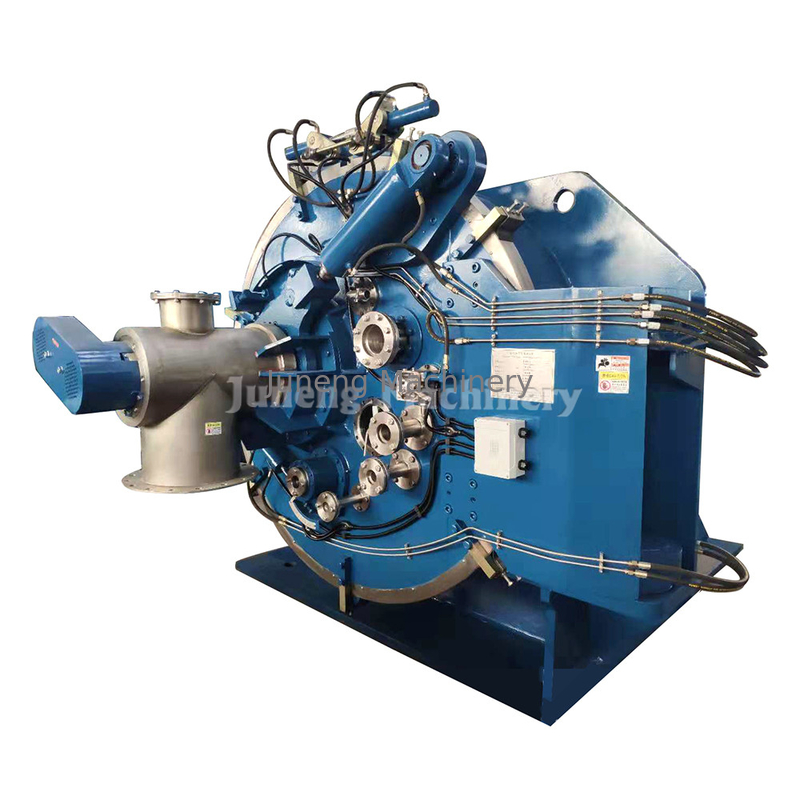

Continuous Automatic Good Quality Peeler Centrifuge For Corn Starch
|Control||Both Automatic And Manual Are Available||Operation||Periodic Cycle Operation Of Feeding,dehydration,washing And Discharging|
|Drum Speed||950 Rpm||Loading Capacity||996 Kg|
Corn Starch Peeler Centrifuge,
Continuous Peeler Centrifuge Machine,
SS304 Peeler Centrifuge Machine
Continuous automatic good quality peeler centrifuge for corn starch
It is applicable for two-phase (solid-liquid) separation in the chemical, pharmaceutical, environmental protection, mining, food and other industries.
Corn starch, cassava starch, sweet potato starch, potato starch, banana taro starch, the kudzu root starch, wheat starch
Working Principle for GKH Separation Centrifuge Introduction
Solid Liquid Separation/Cleaning/Dewatering
Food Grade Centrifuge
GKH horizontal siphon peeler/scraper discharge centrifuges main apply to separate / clean/ dewater kinds of material , especially that are sticky poder material like starch, soda ash, PVC, NaCl, fertilizer and so on , widely used in food, industry, chemistry .
GKH Series are centrifuges with scraper discharge and automatic batch operation at full speed. they are capable of full automatic (PC controller) . Matching electric and hydraulic controller , it can control all the process of the feeding ,separating ,washing and discharge at full speed
Principle For GKH Separation Centrifuge Motor
The motor drives the bowl at full speed, and the materials to be separated fed into and distributed on the wall of the bowl with the aid of the tine.
Under the action of centrifugal force, the liquid phase through out the filter bag and the bowl, move out via the unloading pipe.
With the increase of filter cake, the tine relatively is rotating, when tine rotate reaches at a certain Angle, touch the limit switch and cut off time relay, the feed valve closed, stop feeding.
And washing valve automatically open at the same time, washing liquid by washing tube spray on the filter cake, after the filter cake washing adequately, close the washing valve, while the machine is continuously dehydrating and drying, and then the scraper rotatably scrape and discharge the cakes, then move out the machine by gravity.
|Drum diameter||1600 mm , about 62.99 inch|
|Drum length||1000 mm , about 39.37 inch|
|Drum speed||950 rpm|
|Maximun separation factor||799|
|Motor power||132 Kw|
|Loading capacity||996 Kg|
|Wet base capacity||6.5-10 t / h|
|Solid phase loss||≤ 0.05%|
GKH series siphonic centrifuge is especially used in the occasion of the higher production, lower moisture in residue of the cake and sufficient washing.
It is widely used in industry area of the solid-liquid separation of the raw material and intermediate products, such as foodstuff, pharmacy, chemical, national defence and so on.
The Company now has its 4 production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation.
Now we are working on the stock of the hot equipment , trying our best to shorten the delivery time.
We are the big fan of the exhibitions at home and overseas, such as AchemAsia 2019, Canton Fair , Achem , Food Tech 2019 etc.
1 . Compliance to delivery lead time
2 . 12 months guarantee period from machine arriving date.
3 . The customer could get trained by our experienced tecnician
4 . We always keep certain inventory level of spare parts, which means the replacement can be sent to you timely
ISO 19001 : 2005, ISO 14001 : 2015, OHSAS 18001 : 2007,
ASME U 38793
