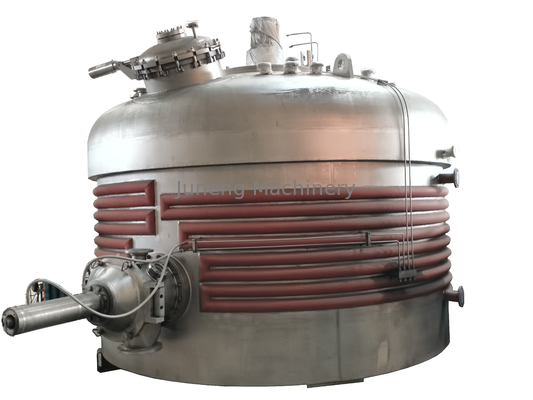

GXG Filtering Washing Drying Machine With Outer Coil

GXG Filtering Washing Drying Machine With Outer Coil Which Can Keep Warm

1.Product Description

GXG series multi-functions filtering,washing,drying(three in one)machine is a solid-liquid equipment with the functions of filtration,washing,drying reaction and residue discharging automatically. This filter can be divided into two in one structure ( filtering and washing) and three in one structure (filtering, washing and drying).

2.Main applications

It could be used in various field such as fine chemical, petroleum, printing, foodstuff and pharmaceutical industries and so on.

Nutsche filter dryer are widely used for critical high purity separations of liquids and solids, and now being used in the cbd oil industry.

It is widely used for final step of cbd oil purity process. With pur critical operation as final step, the cbd crystalizing isolation can reach above 98%.

1 . Feeding

Open the feeding valve to feed in the tank, paddle should be in the upper position when feeding, if necessary, can be lowered stirring paddle for low speed stirring, so that the material is evenly distributed. When the material reaches the specified process stop feeding, close the feed valve

2 . Washing

Washing fluid at 0.2 ~ 0.3MPa pressure by the rotating nozzle cleaning, and stirring paddle has been suspended high.

Slurry washing: When a certain amount of washing liquid after the accession to stop adding gradually lower stirring paddle and pulp slurry at an appropriate speed stirring. Stir continuously from top to bottom.

3 . Filter

After washing, upper the stirrer to related position, stop stirring, the liquid will be discharged from bottom. Then repeat the filtering steps until you get perfect material.

If filter finish,make the material is similiar, then make the stirrer blade upper from material surface about 20mm.

3.Advantages

1, Full enclosed filter, no leakage, no pollution
2, Solid-liquid separation can be realized under pressure or vacuum state. Filter cakes evenly distributed when filtering which has good effect.
3, Stirring system can stepless speed regulating and multi-function work. It can enlarge furthest for the cake space, thus filter cake can be fully cleaned; the time of drying is reduced greatly, with high efficiency.
4, Discharge valve can discharge automatically which can lower labor intensity.
5, Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.
6, Adopting horizontal placing filter material, one time completely filtering no remains. Filter material has unique sealing structure which is easy to be changed.
7, Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.
8, Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.

4.Main technological parameters

5.Detailed Images

Machine Parts

Name: Inside of shell

Brand: Juneng

Original: China

Domestic famous engines, strong driving force

Main Features

Name: Brush
Brand: Juneng
Original: China
Domestic famous engines, strong driving force

6.Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
