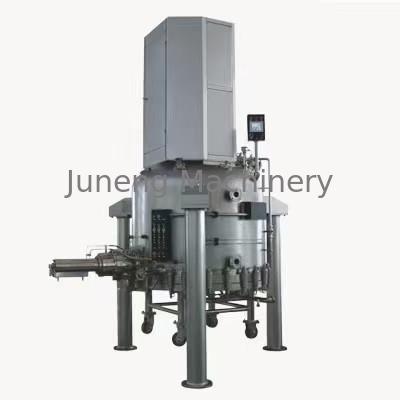

Filtering,washing,drying(three in one) multi-functions pressure filter

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number GXG
Minimum Order Quantity 1 set
Price USD36000-200000/set
Packaging Details seaworthy packing
Delivery Time 60 work days
Payment Terms L/C, T/T
Supply Ability 20 sets/month
Product Details
Product Name GXG Filtering Washing Drying Machine With Outer Coil Which Can Keep Warm Function Filtering,drying,washing
Application Industrial Machinery Filter Media Liquid Filtration
Material Carbon Steel, Stainless Steel 304/316, Hastelloy Type Filtering & Drying
Leave a Message
Product Description

Filtering,washing,drying(three in one) multi-functions pressure filter



Product Description

GXG series multi-functions filtering,washing,drying(three in one)machine is a solid-liquid equipment with the functions of filtration,washing,drying reaction and residue discharging automatically. This filter can be divided into two in one structure ( filtering and washing) and three in one structure (filtering, washing and drying).

Filtering,washing,drying(three in one) multi-functions pressure filter 0



Main technological parameters

Model
Filtration area ㎡
Shell
diameter (mm)

Work
pressure (Mpa)

Nominal
volume (m3)

Filter cake
height (mm)

GXG-600
0.28
600
-0.1~0.3
0.2
150
GXG-800
0.5
800
-0.1~0.3
0.5
180
GXG-1200
1.1
1200
-0.1~0.3
1.3
250
GXG-1600
2.0
1600
-0.1~0.3
2.8
350
GXG-2000
3.1
2000
-0.1~0.3
4.8
400
GXG-2400
4.5
2400
-0.1~0.3
6.5
450
GXG-2600
5.3
2600
-0.1~0.3
8.7
450
GXG-2800
6.0
2800
-0.1~0.3
12
450
GXG-3000
7
3000
-0.1~0.3
13
500
GXG-3200
8
3200
-0.1~0.3
14.5
500
GXG-3400 9 3400 -0.1~0.3 15 500
GXG-3600 10 3600 -0.1~0.3 20 500
GXG-3800 11.3 3800 -0.1~0.3 23 500







Main applications

It could be used in various field such as fine chemical, petroleum, printing, foodstuff and pharmaceutical industries and so on.



Nutsche filter dryer are widely used for critical high purity separations of liquids and solids, and now being used in the cbd oil industry.



It is widely used for final step of cbd oil purity process. With pur critical operation as final step, the cbd crystalizing isolation can reach above 98%.

Filtering,washing,drying(three in one) multi-functions pressure filter 1

Main features

1) Solid-liquid separation can be realized under pressure or vacuum state. Filter cakes evenly distributed when filtering which has good effect.

2) Full enclosed filter, no leakage, no pollution

3) Stirring system can stepless speed regulating and multi-function work. It can enlarge furthest for the cake space, thus filter cake can be fully cleaned; the time of drying is reduced greatly, with high efficiency.

4)Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.

5) Discharge valve can discharge automatically which can lower labor intensity.

6) Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.

7) Adopting horizontal placing filter material, one time completely filtering no remains. Filter material has unique sealing structure which is easy to be changed.

8)Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.
