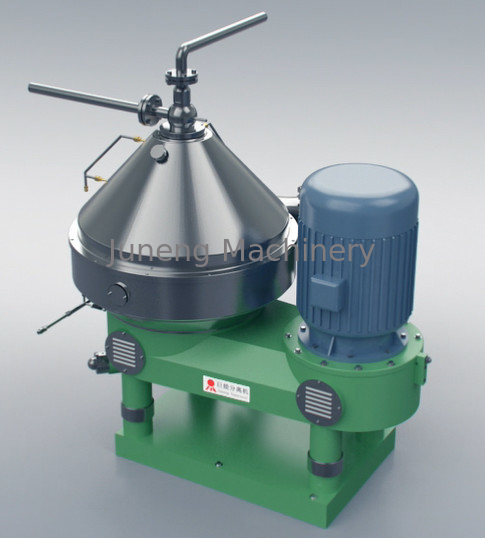

0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve

  • 0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve
  • 0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve
  • 0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve
  • 0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve
Place of Origin Yixing, Jiangsu
Brand Name Juneng
Certification CE\ISO
Model Number DHN616
Minimum Order Quantity One set
Price USD 200000 / set
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT, L/C
Supply Ability 40 sets / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alias Dairy，beverage,beer Disc Separator Centrifuge Which Can Discharge Automatically With Ring Valve Treatment Capacity(L/H) 25000-35000
Inlet Pressure(Mpa) 0.1 Outlet Pressure(Mpa) 0.3
Motor Power(kw) 37 Weight（kg） 3000
Outline Dimension 2185*1728*2082
High Light

beer disc separator centrifuge

,

disc separator centrifuge With Ring Valve

,

0.3 Mpa Disc Separator Centrifuge Machine
Leave a Message
Product Description

Dairy,beverage,beer disc separator centrifuge which can discharge automatically with ring valve



Product description:



With the gradual increasing in people’s living, the dairy and beverage consumer market also continues to expand, as a result the people’s attitudes of consumer also increase strongly from “ drink milk” to “ drink good milk”. So the advanced equipments are very important in the production process.

0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve 0

The centrifugal separator from Juneng has the special design for the centripetal pump and inlet/outlet port will create a soft separation environment for the material to ensure the active ingredient in the material is not destroyed and made the nutritional value and freshness as well as original flavor keep well.



Product Specifications:



Model Treatment
capacity (L/H)		 Inlet
pressure (Mpa)		 Outlet
pressure (Mpa)		 Motor
power (Kw)		 Weight(Kg) Outline
dimension (mm)
DHN360 2000-5000 0.05 0.1-0.35 7.5 1200

1530*1150*1500
DHN380 3000-7000 0.05 0.1-0.4 11 1500 1555*1070*1530
DHN470 5000-10000 0.05 0.1-0.4 15 1600 1800*1200*1750
DHN550 10000-20000 0.05 0.1-0.4 22 2300 1950*1550*1960
DHN616 25000-35000 0.1 0.3 37 3000 2185*1728*2082
DHNZ204 1000-1500 0.05 0.1-0.2 4 520 810*850*1350
DHNZ360 1000-3000 0.05 0.1-0.3 7.5 1200 1530*1150*1500
DHNZ470 3000-7000 0.05 0.1-0.4 15 1600 1800*1200*2030
DHNZ550 5000-10000 0.05 0.1-0.4 22 2300 1950*1550*1960





Application:


DHN series separator is mainly used in milk clarifying industry. This type separator also can be used in apple juice, orange juice, vegetable juice, tea drinks , coffee , beer and other industry which need to separating two different density liquid.




Product competitive advantage:

1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
4, Lower noise
5, Perfect separating affection.



Detailed Images
0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve 1

Machine Parts

Name: Disc of drum

Brand: Juneng

Original: China

Domestic famous engines

Main Parts

Name: Shaft
Brand: Juneng
Original: China
The vertical shaft is to transmit power, is equipped with speed step-up gear (small spiral gear) and hi-speed rotating part.

The cross shaft is to transmit motor power to the vertical shaft and main parts of the drum.

0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve 2
0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve 3

Machine Parts

Name: Drum body
Brand: Juneng
Original: China
The drum is a component to separate material and rotates at high speed, is the heart of the separator.

Main Features

Name: Equipment Base
Brand: Juneng
Original: China
Underframe is the main part for supporting the whole separator and connecting base, all four supporting feet of the baseframe are equipped with damping rubber pads, which can isolate vibration between the separator and building very well.

0.3Mpa Beer Disc Separator Centrifuge Machine Discharge Automatically With Ring Valve 4
