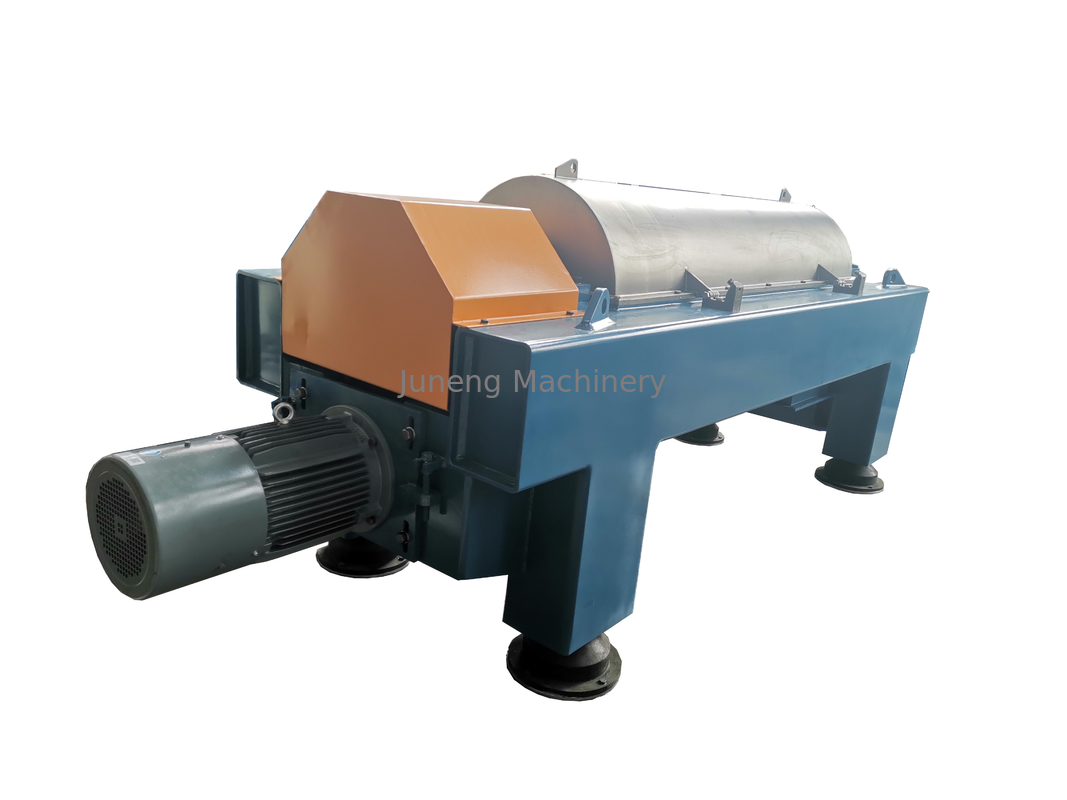

Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel

Place of Origin Jiangsu,China
Brand Name Juneng
Certification CE/ISO
Model Number LW
Minimum Order Quantity 1 set
Price USD15000~100000/set
Packaging Details seaworthy packing
Delivery Time 30-50 days
Payment Terms L/C, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sludge Dewatering Horizontal Screw Decanter Centrifuge Stainless Steel Type Centrifuge
Condition New Core Components PLC,Motor, Pressure Vessel, Bearing
Voltage Design For Different Country Power According To The Model
Weight According To The Model Dimension(L*W*H) Depend On Model Choosing
Drum Diameter Depend On Model Choosing
High Light

horizontal decanter screw Steel centrifuge

,

Sludge Dewatering decanter Steel centrifuge

,

Stainless Steel decanter centrifuge

Leave a Message
Product Description

Sludge dewatering horizontal screw decanter centrifuge stainless steel

Introduction

Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.

The centrifuges which made by our factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.

According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.

Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 0

Advantages :

1. Lower cake transportation costs due to very dry solids

2. Better recovery of nutrients due to very high separation efficiency

3. Lower fresh water consumption compared to other processes

4. Continuous and fully automatic operation

5. 24 h operating reliability

6. Optimum wear protection

7. Energy saving design

8. Easy to operate

9. Easy to maintain

10. Simple assembly/dismantling



Application

1. Washing and dehydration of starch

2.Dehydration of soybean wheat proteins

3.Dehydration of fish meal and fish

4.Dehydration of brewers' grains

5.Purification of juice and dehydration of fruit fiber

6.Separation and purification of animal and vegetable oil

7.Separation and purification of coal tar

8.Clarification and purification of gypsum

9.Classification and dehydration of starch

10.Classification and dehydration of Kaolin and graphic



11.Classification and dehydration of dyes and pigments

Product structure and operation principle

Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 1
Production structure : Main body of scroll discharge centrifuge are consist of column - taper drum , helical pusher , speed difference system , shaft seat , frame , encloser , main and auxiliary motor and electric system . Main motor drive drum , auxiliary motor drive planetary gear differential , so that create different speed between drum and screw , then carry on continual separation in 2 4 hours under the strong centrifugal force which produced by the high speed rotate of separator .

Operation principle : Drum and screw rotate at a certain different speed . The feed enters the drum through a stationary inlet tube and is accelerated smoothly by an inlet rotor . The resulting centrifugal forces make the solids collect on the wall of the drum . Screw conveyor continual moving the solid to conical end of drum , discharge through discharge port after dried in the dry area , however , light liquid forms the inner layer and effusion through overflow port of drum , then discharge through liquid outlet port .



Main specification and technological parameters



Model
Drum diameter mm
Inlet liquid capacity㎥/h
Power of main/auxiliary motor Kw
Weight Kg
Dimension (max) mm
LW250
250
1-4
11/4
1200
2650*720*900
LW(F)250
250
1-4
11/4
1200
2650*720*900
LW250(W)
250
1~5
11/4
1300
2750*720*900
LW350
350
5~15
22/5.5
2000
3585*980*1238
LW(F)350
350
5~15
22/5.5
2000
3585*980*1238
LW350(W)
350
5~18
15/5.5
2200
3412*1090*950
LW(S)350
350
2~10
22/5.5
2000
3676*980*1238
LW450
450
5~20
30/11
3000
4380*1080*1360
LW(F)450
450
5~20
30/11
3000
4380*1080*1360
LW450(W)
450
5~28
30/11
3200
4380*1080*1360
LW(S)450
450
5~15
37/11
3200
4195*1080*1360
LW520
520
10~26
45/15
5000
4840*1160*1465
LW(F)520
520
10~26
45/15
5000
4840*1160*1465
LW520(W)
520
10~35
16742
5000
4840*1160*1465
LW550W
550
10-45
20394
6500
5038*1388*1578
LW650A
650
7-9T
110
8000
4407*2280*1340
LW650(W)
650
25-60
75/22
8000
5500*2280*1340
LW720A
720
8-10T
132/160
11000
4410*3280*1450
LW720(W)
720
35-85
110/30
13000
5600*3280*1450

*** F: Ex-proof, W:Waste water, S: Three phase FS: Ex-- proof and three phase



Produce Process
Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 2
Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 3
Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 4

Separator process workshop



Drum processing



Process center



Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 5
Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 6
Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 7

Ultrasonic testing



Dynamic balancing test



Assembling

Application area

Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 8









Packing & Delivery

Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 9
Packaging
Transport
Ocean shipping sea transportation transport by sea
Container
20'GP, 40'HC or Shipping LCL



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Horizontal Screw Decanter Centrifuge Sludge Dewatering Stainless Steel 10
