Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V

  • Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V
  • Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V
Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number LW350W
Minimum Order Quantity 1 set
Price USD35000-150000/set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 30 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Two-phase Scroll Discharge Decanter Centrifuge Stainless Steel For Dewatering Core Components PLC, Motor
Voltage 380V Weight(KG) 2200
Dimension(L*W*H 3412*1090*950 Drum Speed Appr 3200r/min
Material Stainless Steel
High Light

Water Treatment Decanter Centrifuge

,

Clean Water Diascharge Decanter Centrifuge

,

380V Decanter Diascharge Centrifuge
Leave a Message
Product Description

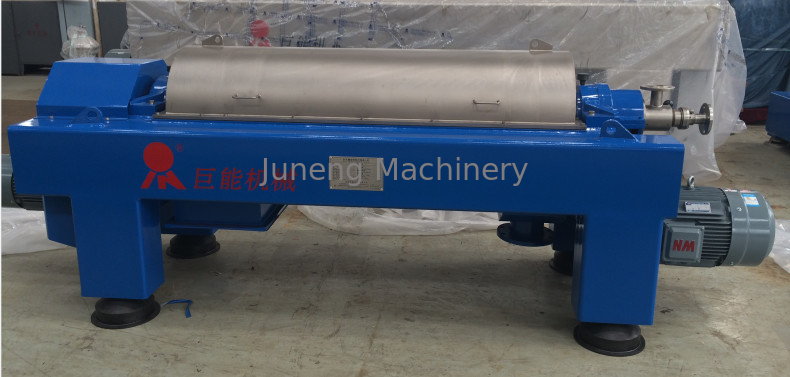

Two-phase water treatment decanter centrifuge clean water diascharge



Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 0






Description

Horizontal Scroll Discharge Centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference . The centrifuges which made by our factory can clarify , dehydrate and classify the suspensions with 0.002-3mm solid - phase particles and thickness range at 0.5~ 40 % . The product can be classify into two type LW counter - current and parallel - current base on its structure feature . According to feed feature , product can be divide into LW two - phase separator , LWS three - phase separator . It is suitable for separating different feed under different process condition , and widely use in pharmaceutical , food , chemical , light industry . Environmental Protection Industry etc.

Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 1

                                                                       Two phase



Operation principle : Drum and screw rotate at a certain different speed . The feed enters the drum through a stationary inlet tube and is accelerated smoothly by an inlet rotor . The resulting centrifugal forces make the solids collect on the wall of the drum . Screw conveyor continual moving the solid to conical end of drum , discharge through discharge port after dried in the dry area , however , light liquid forms the inner layer and effusion through overflow port of drum , then discharge through liquid outlet port .

Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 2





Main technological parameters



Model
Drum diameter mm
Inlet liquid capacity㎥/h
Power of main/auxiliary motor Kw
Weight Kg
LW250(W)
250
1~5
11/4
1300
LW350(W)
350
5~18
15/5.5
2200
LW450(W)
450
5~28
30/11
3200
LW520(W)
520
10~35
16742
5000
LW550W
550
10-45
20394
6500
LW650(W)
650
25-60
75/22
8000
LW720(W)
720
35-85
110/30
13000





Advantages

1) Lower cake transportation costs due to very dry solids
2) Better recovery of nutrients due to very high separation efficiency
3) Lower fresh water consumption compared to other processes
4) Continuous and fully automatic operation
5) 24 h operating reliability
6) Optimum wear protection
7) Energy saving design
8) Easy to operate
9) Easy to maintain
10) Simple assembly/dismantling



Product process

Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 3
Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 4
Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 5

Separator process workshop



Drum processing



Process center



Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 6
Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 7
Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 8

Ultrasonic testing



Dynamic balancing test



Assembling





Company profile

Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 9



Juneng Machinery (China) Co., Ltd in Nanjing

We are devoted to centrifuges and dryers, which could used in various industries, such as environmantel protection, food industry, chemical industry and pharmaceutic industry etc.





Our company has a professional design team of horizontal separators, which are researched and manufactured by professionals from the analysis of urban sewage materials, kitchen waste and gutter oil to the design, control and automation of machines.



Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 10

                                         Our team



Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 11

                                   Metallographic analysis



Water Treatment Decanter Centrifuge Clean Water Diascharge Two Phase 380V 12

                               Dynamic balance detection
