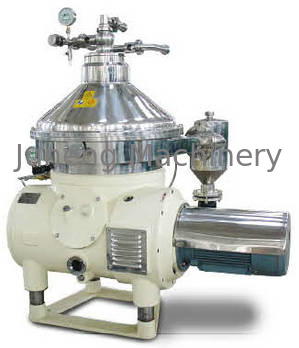

High rotating speed 5T milk cream skimming separator Machine for sale

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE
Model Number DHNZ470
Minimum Order Quantity One set
Price USD $ 30000 - 60000 / SET
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT
Supply Ability 40 set / months
Product Details
Alias Milk Skimming Separator Rotate Part Drum
Drum Material Food Grade Stainless Steel Disc 135
Separation Factor 10500 Equivalent Settling Area 62x107cm²
High Light

Milk Cream separator

,

milk degrease separator

,

Dairy separator

Leave a Message
Product Description

High rotating speed 5T milk cream skimming  separator Machine for sale



Product description:



DHNZ series separator adopts ring valve type automatic slag discharge, and its slag discharge action is automatically controlled by computer program and industrial control computer, which can carry out regular and quantitative slag discharge according to your setting requirements without stopping the feeding



Work Principle:



The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the material (hybrid liquid) passes the separation partition consists of disk string, by taking the neutral holes in disk as the interface.



The liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area.



The liquid in lower specific gravity (light phase) will move inward, converge to the bottom centripetal pump.



Heavy and light phase respectively output from the lower and upper centripetal pump. Heavy slag is regularly discharged to achieve continuous production



Outline and Compositions of the Product



The separator mainly consists of inlet/outlet, drum, cover, vertical shaft, cross shaft, stand, motor and automatic control box, etc




Introduction of Company:



Juneng Group has set-up a 1st class in-house laboratory for chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetism inspection, ultra-sonic inspection and etc.



This is to imply with the latest advance instrumentations and rigorous working attitude to ensure every part of product is stable and reliable.





Product competitive advantage:



1, High rotating speed

2, Operating stability

3, Completely sealed up of the inlet and outlet system

4, Lower noise

5, Perfect separating affection.




Product Specifications:



Model

Treatment
capacity (L/H)

Inlet
pressure (Mpa)

Outlet
pressure (Mpa)

Motor
power (Kw)

Weight(Kg)

Outline
dimension (mm)

DHNZ470

3000-7000

0.05

0.1-0.4

15

1600

1800*1200*2030
