DL4P2S Stainless Steel Vertical Industrial Bag Filters With PP Filter Bag

Place of Origin Jiangsu Yixing
Brand Name Juneng
Certification CE、 ASME U、ISO9001
Model Number DL-4P2S
Minimum Order Quantity 1 SET
Price USD $ 1492/Set
Packaging Details wooden case
Delivery Time 45-60 days
Payment Terms TT
Supply Ability 300 Set/month
Product Details
Product Name Bag Filter Material SS304
Structure Bag Filter Housing + Filter Bag Material Of Bag PP
Usage Liquid Filter After-sales Service Engineers Available To Service Machinery Overseas
High Light

stainless steel bag filter

,

high temperature filter bag

Leave a Message
Product Description



Industrial Bag Filter / DL4P2S Stainless Steel Bag Filter Manufacture Price with PP Filter Bag


Description



DL bag-type filters are  kinds of filter equipment with unique structure, small volume, easy and agile operation,

energy conservation, high efficiency, leak-free working mode and strong adaptability.

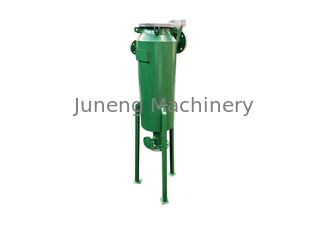

DL4P2S Stainless Steel Vertical Industrial Bag Filters With PP Filter Bag 0

Stainless steel bag filter



Bag filter is a new design filtration equipment. It's supported by metal baskets. The liquid flows into the filter,solid stopped by filter bag,and clean liquid flows out.



Model
DL-4P2S
Filter area (m2)
2
Inlet/outlet Caliber (inch)
3
Max Flow Rate (m3/h)
80
Nominal Filtration Precision (microns)
1,5,10,15,25,40,50,60,75,80,100......1200



Feature:

  1. 1.Well sealed, no side leaking
  2. Large effective filtration area
  3. High filtration efficiency
  4. Filter bag can be replaced easily
  5. Small product size, large filtration capacity
  6. Steady quality, long using life.


Application scope



Paint, beer, vegetable oil, medicine, cosmetic, petroleum product, chemical textile, light sensitive chemical, electroplate liquid, milk,mineral water, hot solvent, emulsion, industrial water, sweet water, resin, printing ink, industrial wastewater, fruit juice, edible oil and wax and so on.



Most customer buy this bag filter for lubrication oil.


The precision can be 0.5~ 200um. And can be custom-made according to different requirments.
