NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption

China NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption supplier
NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption supplier NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption supplier NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption supplier NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption supplier NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption supplier

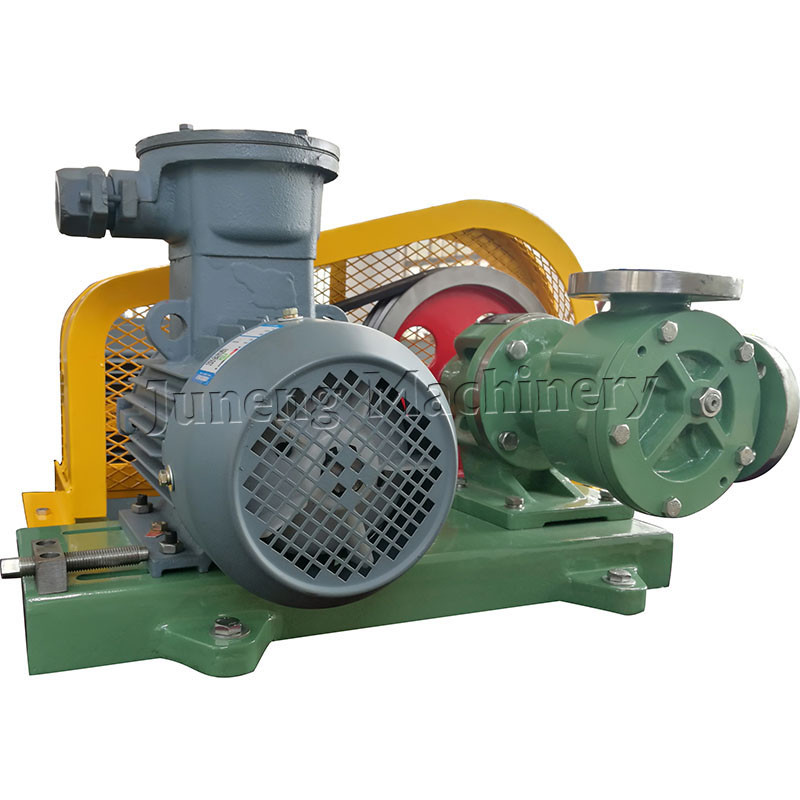

Large Image :  NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption

Product Details:

Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: ISO
Model Number: NCB 12/0.5

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD$ 1279 / set
Packaging Details: Standard Wooden Case
Delivery Time: 60 days
Supply Ability: 40 set / months
Contact Now
Detailed Product Description
Other Name: Gear Pump Drive: Motor
Motor Speed: 290 Rpm Motor Power: 4 Kw
Pressure: 0.5 Mpa Flow: 12 M3/h



NCB fuel oil Transfer Gear Pump / Belt Drive Centrifugal Transfer Pump





Product description:



NCB Series Inside Engaged Gear Pump is a volumetric pump for transporting liquid, which has advanced structure and good performance.



This pump employs the inside engagement for gears, the pitch circles of both inside and outside gear are at one side, another side is separated by “swing link” on the pump cover and forms up feeding and discharging chamber.



NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption



The driving inside gear on the main shaft drives the pinions to rotate in same direction, in the feeding chamber, the gear teeth are separated each other, this forms up negative pressure surface, so it sucks in liquid.



Gear teeth enter into the engagement surface continuously in the discharging chamber and extrude liquid out.

Product Specifications:



Model
Flow
m3/h
Pressure
Mpa
Motor Model

Motor Power
KW
Assembly style
Outline dimension
LxWxH (mm)
NCB1.2/0.3
1.2
0.3
Y90L-6
1.1
Belt driven
or
Coupler
driven
or gear box driven
234x140x140
NCB1.8/0.3
1.8
0.3
Y100L-6
1.5
254x153x153
NCB3/0.3
3
0.3
Y132S-8
2.2
254x153x153
NCB6/0.5
6
0.5
Y100L-4
3
700x420x323
NCB8/0.5
8
0.5
Y100L-4
3
700x420x323
NCB12/0.5
12
0.5
Y132M-4
4
800x550x420
NCB16/0.5
16
0.5
Y160M-6
5.5
800x550x420
NCB20/0.5
20
0.5
Y160L-6
7.5
800x550x420
NCB12/0.7
12
0.7
Y160M-4
7.5
990x780x510
NCB18/0.7
18
0.7
Y160L-6
11
990x780x510
NCB24/0.5
24
0.5
Y160M-4
11
990x780x510
NCB30/0.5
30
0.5
Y160L-4
15
990x780x510
NCB15/1.5
15
1.5
Y180L-6
15
1230x1009x740
NCB20/0.7
20
0.7
Y160L-6
11
1230x1009x740
NCB25/0.7
25
0.7
Y180L-6
15
1230x1009x740
NCB35/0.5
35
0.5
Y160L-4
15
1230x1009x740
NCB40/0.5
40
0.5
Y200L-6
18.5
1340x1022x650
NCB50/0.5
50
0.5
Y200L-6
18.5
1340x1022x650
NCB60/0.5
60
0.5
Y200-6
22
1340x1022x650
NCB70/0.5
70
0.5
Y225M-6
30
1340x1022x650
NCB80/0.5
80
0.5
Y250M-6
37
1590x1356x840
NCB100/0.5
100
0.5
Y280S-6
45
1590x1356x840
NCB120/0.5
120
0.5
Y280M-6
55
1590x1356x840



Application:



It is applied to convey liquid from all kinds of light or volatility to deep sticky, even to half-solid. It is widely used in petroleum, chemistry, oil, paint etc.



NCB Fuel Oil Centrifugal Transfer Pump Belt Drive Low Power Consumption



Product competitive advantage:



The inner gearing principle is adopted for this pump. The annular and external gear pitch circles closely lean against one side, the other side is separated by covering with “ crescent plate” .



The annular gear driver the external gear for the same direction rotation. It has the advanced structure, fine quality, small volume, large flow, low noise, durable service life.
