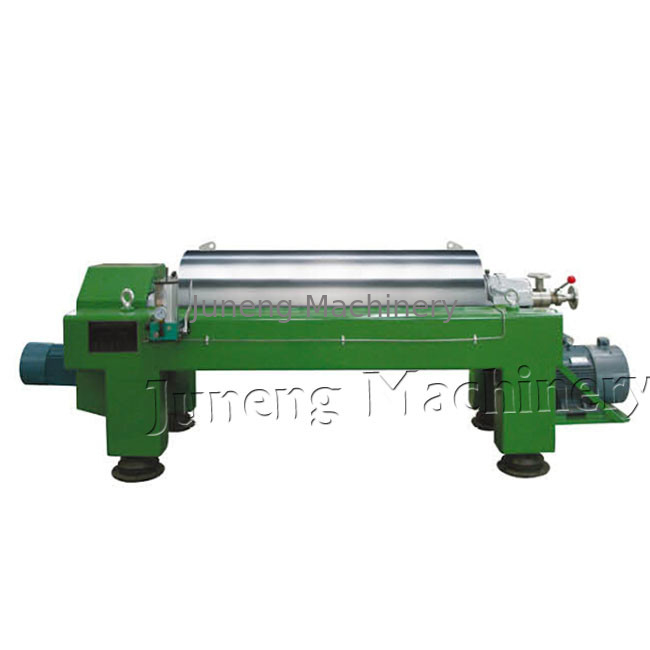

3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage

China 3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage supplier
3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage supplier 3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage supplier 3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage supplier 3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage supplier

Large Image :  3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage

Product Details:

Place of Origin: JIANGSU YIXING
Brand Name: Juneng
Certification: CE , ISO9001&ISO14001
Model Number: LW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000~100000/set
Packaging Details: seaworthy packing
Delivery Time: 30~50 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets /months
Contact Now
Detailed Product Description
Alias: Centrifuge Control: Automatic Control
After-sales Service Provided: Overseas Service Center Available Application: Oil, Water Treatment
Motor: 2 Motor Power: According To Model


Jiangsu Juneng 3 phase decanter centrifuge machine for oil obtaining from cooked cartilage and adipose tissue

Detailed Product Description
Diameter 250mm-720mm  Voltage :  220V, 380V,440V,460V
Speed Inverter Control  Electrical Components:  World Famous Brand
Operation Continuous Separation :  Three phase
Bearing SKF Moc :  SS304, SS316L, SS2205
Control PLC Motor :  2





Product description:


Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.

The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%.





The product can be classify into two type LW-counter-current and parallel-current base on its structure feature. According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator.

It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc…


Model Drum diameter
mm
Draw Ratio
L/D
Speed of drum
r/min
Factor of
separation G
Spiral difference
rotate speed

r/min
Inlet
capacity(m3/h)
Main/assist
motor (KW)
LW250W 250 3.73 4200 2467 2~31 1-7 11/4
LW350W 350 4.4 3600 2540 5~25 5~18 22/5.5
LW450W 450 4.4 3200 2580 5~25 5~28 30/11
LW520W 520 4.1 2850 2365 2~26 10~35 45/11
LW550W 550 4.1 2650 2370 2~26 10~45 55/11





Working principle

3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage





Features

  • All parts coming into contact with the product are made of stainless steel.
  • 3-phase AC motor for controlled torque starting via frequency converter
  • Approximately 80 to 90 % of the oil is recovered.
  • Low personnel costs due to continuous and automatic operation.
  • Highest g-force for higher solids output
  • Adjustable bowl speed via VFD
  • Automatic adjustment of differential speed via VFD
  • Two motor drive
  • Belts for both primary motor and secondary motor





3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage







Application:


Decanter centrifuge is most often used for clarification of liquid containing high concentrations of solid, removing solids from liquid. It is usually used in waste water and PVC sludge industry. And also can be used in sunflower oil, palm oil and tea industry.







Introduction of Company:

Juneng Group employs a team of well-trained professional, adopts advance EPR production management model in cooperation with state–of–the–art apparatus and process i.e. CNC Turner, Machine Center, Highly Accuracy Test Instrumentation, Quality and Process Control System to ensure quality, stability, and reliability of every product.

Juneng’s success is contributed by the commitment of every member of the Company. In addition, the specialty and potential of each member is being respected and disinterred.





Delivery



Packaging Seaworthy wooden case
Transportation Automobile transport to shipping port



3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage



After-sales Service Technical Team

Our company has set up a professional after-sales service technical team. All sell-offs products shall have engineer to guide installation, assist debugging and train operators until they have mastered them.

If problem occurs while the equipment operation, we will immediately process it, promise to feedback within two hours after informed. After-sales service engineer shall be arranged to the site to solve the problems. He will never leave, until the user satisfaction.

3 Phase Horizontal Decanter Centrifuge For Oil Obtaining From Cooked Cartilage
