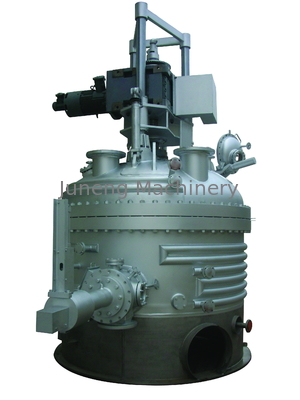

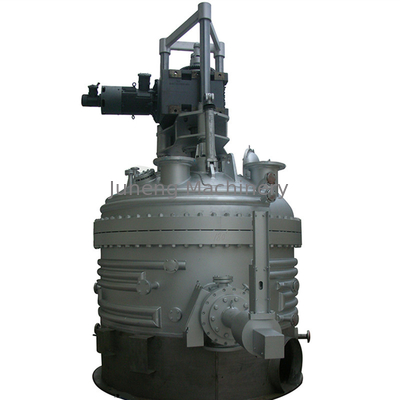

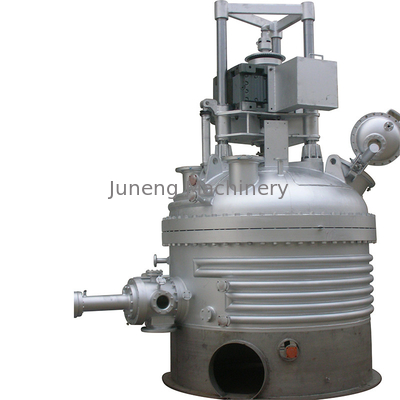

Fully Enclosed SS304 Agitated Nutsche Filter Dryer Filtering And Washing Machine
One set
MOQ
USD $ 27910 per set
Price
Fully Enclosed SS304 Agitated Nutsche Filter Dryer Filtering And Washing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE、ISO9001
Model Number: GXG 600 ( 2 IN 1 )
High Light:

liquid filter drier

,

Agitated Filter Dryer

Payment & Shipping Terms
Packaging Details: Standard Wooden Case
Delivery Time: 60 days
Payment Terms: TT
Supply Ability: 40 set / months
Specifications
Alias: Filtering And Washing Machine
Material: SS304
Operation: Fully Enclosed
Discharge: Controlled By Automatic Discharging Valve System
Filter Area: 0.28 M2
Shell Diameter: 600 Mm
Product Description



Fully Enclosed SS304 Filtering and Washing Machine Agitated Nutsche Filter





Description



In order to meet the confined production process, filtering washing machine, two -in-one filter has been developed. This production system can realize half automatic or complete automatic operation control.



Maily used for crystallization liquid filtration, washing, drying process. It includes: feeding, beating, filtering, washing, discharging, on-line inspection (optional), etc key steps to prepare for the cleanroom of next mixing process. Besides this Nutsche Filter Dryer also has CIP, SIP functions.





Application



It could be used in various field such as fine chemical, petroleum, printing, foodstuff and pharmaceutical industries and so on.



Nutsche filter dryer are widely used for critical high purity separations of liquids and solids, and now being used in the cbd oil industry.



It is widely used for final step of cbd oil purity process. With pur critical operation as final step, the cbd crystalizing isolation can reach above 98%.



Fully Enclosed SS304 Agitated Nutsche Filter Dryer Filtering And Washing Machine 0



Technical paramaters



 Model  GXG 600 (2 IN 1 )
 Filtration area  0.28 m2
 Shell diameter  600 mm
 Work pressure  -0.1~0.3 Mpa
 Nominal volume  0.2 m3
 Filter ckae height  150 mm
 Operation temprature  0~160℃
 Discharge method  Controlled by discharge valve





Process steps



1 . Feeding



Open the feeding valve to feed in the tank, paddle should be in the upper position when feeding, if necessary, can be lowered stirring paddle for low speed stirring, so that the material is evenly distributed. When the material reaches the specified process stop feeding, close the feed valve



2 . Washing



Washing fluid at 0.2 ~ 0.3MPa pressure by the rotating nozzle cleaning, and stirring paddle has been suspended high.



Slurry washing: When a certain amount of washing liquid after the accession to stop adding gradually lower stirring paddle and pulp slurry at an appropriate speed stirring. Stir continuously from top to bottom.



3 . Filter



After washing, upper the stirrer to related position, stop stirring, the liquid will be discharged from bottom. Then repeat the filtering steps until you get perfect material.



If filter finish,make the material is similiar, then make the stirrer blade upper from material surface about 20mm.





4 . Material discharge



Sampling analysis before discharge, if ok, then discharge them.



First turn off the heating water valve, slowly open the cooling water valve. Slowly lower the stirring paddle, stirring material accelerated cooling, then the vacuum pump can be opened to exhaust heat.



Before open the discharge valve, pls fill pure nitrogen for balance protection. when the pressure is atmospheric pressure, the impeller through the thrust reverser action, the material discharged from the discharge valve.
