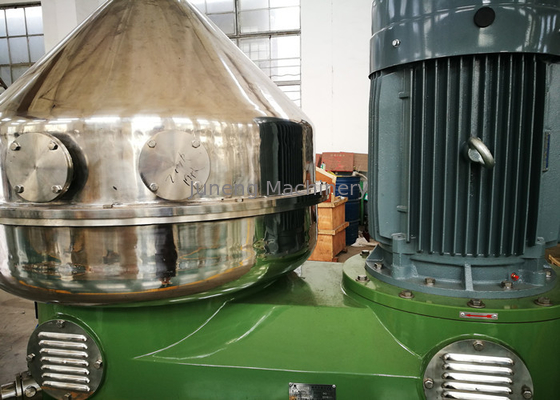

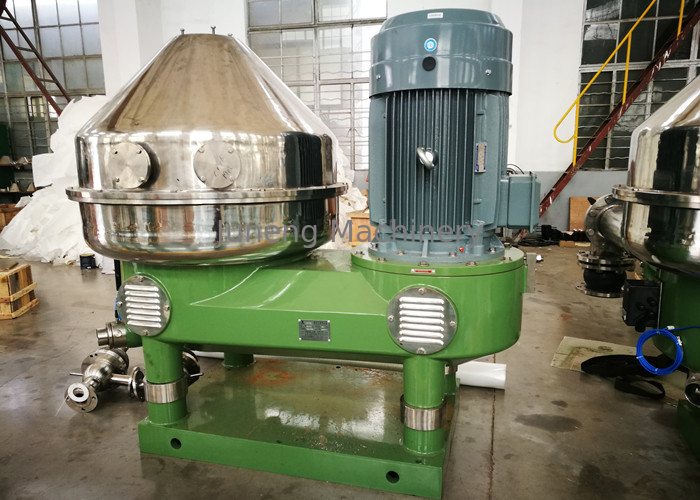

Potato Starch Centrifugal Separators Machine 30 Nozzles Disc Stack SS 304

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification ISO
Model Number DPF720
Minimum Order Quantity One set
Price USD $ 67166 per set
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT
Supply Ability 40 set / months
Product Details
Alias Nozzle Separator Material SS304
Product Sago Palm Starch Processing Capacity 30-60 T / H
Drum Speed 2850-4800 Rpm Motor Power 75/55 Kw
High Light

corn starch separator

,

cassava starch separator

Leave a Message
Product Description



Automatic Nozzle Disc Starch Centrifugal Separators in Corn Starch Plant





Drum System



The drum part is the heart of the separator, all that we need to process is fininshed in this highky rotation drum system. It is composed of drum, drum cover, seal ring, disc rack, disc and 30 nozzles etc.



The drum is forged and processed by numerical control machine, which is made from that high tension and corrosion resistance stainless steel, and tested by NDT for 4 times. Therefore this separator can operate safely and reliably under high-load and high ratation speed for a long time.



Nozzle of the starch separator



The nozzle of starch separator is one of key part and need periodic replacement. It apply bayoner lock design, safe, reliable and easy, one only need to rotate 180 degree with screwdriver, then can take out the nozzle, which means the operator can master it quickly.



Nozzle adopt convenient replacement design, the cover can asending automaticlly, which ease the labor intensity of operator.





Starch separator structurfeatures



1 . Auto-safe lubracation system



2 . Firm metal defense cover



3 . Motor frame with vibration-absorption



4 . The critically manufactured stainless steel shell is hard and durable,and never fading



5 . equipmentSpecial suspension-branch make sure the drum work stably in high rotation speed



6 . Firm vertical shaft, which installed hydraulic ascending and descending system inside, compact structure and convenient operation



7 . The auto-control bearing lubracation system make sure a long-time and reliable work of the drive system



8 . Ciritically processed pedestal pedestal make the machine stable, it has a very canonical machinary dimension



9 . The designed advanced inner-cycling system make sure it regulate separation effect exactly, and have a stable realible separation



Potato Starch Centrifugal Separators Machine 30 Nozzles Disc Stack SS 304 0





General



The starch separator are mainly used in pre-concentration starch, separation of starch and gluten, concentration of gluten(protein), clarify of process water in the after step and so on.
Graining process : Corn / Cassava/ wheat/ potato starch



In the starch separation process, the separator rotates in high speed then creates the centrifugal force, so the separation efficiency is improved. At the same time maximize the production efficiency.



It’s mainly used in pre-concentration starch, separation of starch and gluten, concentration of gluten (protein) , clarify of process water in the after step and so on.





Product competitive advantage:



1 , Big diameter of drum, large area of disk, strong capability of production(separation), excellent effect of separation.

2 , Adopting top-suspension driving, which makes the separator with high rotation stability, largely improves the using life of bearings and main shaft.

3 , Adopting automatic control of lubricating oil circuit, which protects and prolongs the using life of driving system.

4 , Adopting big nozzles , which has big feed capacity, reduces the chances of block, assuring the continuous production.

5 , Fitted with hydraulic system for lifting drum, which makes more easily to check the drum and replace nozzles.

6 , Operating easily, the workers can master the operation regulation in short.





Specifications:



Model

Filtration area

Speed of drum (RPM)

Weight (kg)

 Max capacity

Figure size mm

DPF800

22-115

2750-3300

7800

130 T / H

3200*1800*3100
