Continuous Feeding Disc Oil Separator With PLC System Automatic Control

Place of Origin Jiangsu China
Brand Name Juneng
Certification ISO /CE
Model Number DHZ470
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Packed by international standard fumigation wooden case
Delivery Time 30 days after order
Payment Terms L/C, T/T
Supply Ability 1000 set per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Disc Oil Separator Feature Continuous Feeding
Control System PLC System Automatic Control Voltage 220V/380V/400V/440V/460V
Power 15 Kw Function Three Phase Separation
High Light

disc stack centrifuges

,

oil separator machine

Leave a Message
Product Description

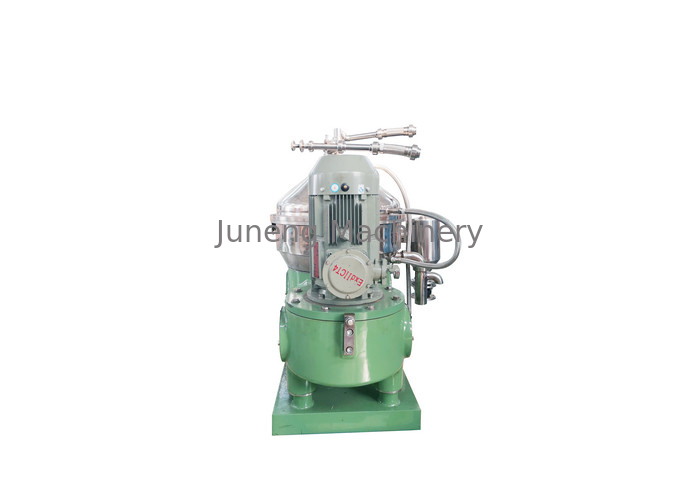

Continuous Feeding Disc Oil Separator With PLC System Automatic Control


Disc Oil Separator Description:

Disc Oil Separator is mainly applied in the purification and clarification of the diesel, light fuel oil, heavy fuel oil and other mineral oil, to remove the water, moisture, mechanical impurities and some harmful substances of the oil. This model is automatic slag type, high separation efficiency, no need to disassemble to slag. It can be automatic controlled according to requirement which greatly reduce the labor intensity of the operating. This machine by the accurate calibration balancing, little vibration, can be long-running and operated safety and reliable.



Disc Oil Separator Advantage

We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
1. Continuous feeding
2. High separation factor
3. Automatic residue discharging
4. Concise bowl design without frequent washing
5. Hydraulic coupling driving with longer service
6. PLC system automatic control

Disc Oil Separator Application

1. Purifiation of animal fat
2. Purification of fish oil
3. Kitchen waste oil
4. Separation of fish pressed liquid
5. Waste oil
6. Hogwash oil
......



Disc Oil Separator Principle

The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the feed passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface,

the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the residue will flow toward the big centripetal pump.

The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump.

Continuous Feeding Disc Oil Separator With PLC System Automatic Control 0

Disc Oil Separator  model list



Model Flowrate Inlet pressure Outlet pressure Power Weight
DHZ360 1200-2500 LPH  0.05 MPA 0.1-0.25 MPA 7.5 KW 1280 KG
DHZ470 2500-7000 LPH 0.05 MPA 0.1-0.25 MPA 15 KW 1880 KG
DHZ550 5000-15000 LPH 0.05 MPA 0.1-0.25 MPA 18.5 KW 2200 KG
DHZ700 15000-30000 LPH 0.1 MPA 0.2 MPA 30 KW 3300KG


Continuous Feeding Disc Oil Separator With PLC System Automatic Control 1
