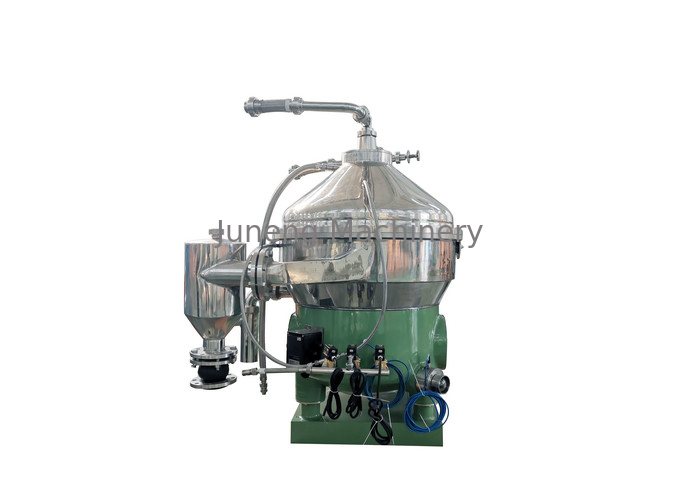

High Performance Oil Water Separator / Liquid Solid Disc Stack Centrifuge

China High Performance Oil Water Separator / Liquid Solid Disc Stack Centrifuge supplier

Large Image :  High Performance Oil Water Separator / Liquid Solid Disc Stack Centrifuge

Product Details:

Place of Origin: Jiangsu China
Brand Name: Juneng
Certification: ISO CE
Model Number: DHZ470

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed by international standard fumigation wooden case
Delivery Time: 30 days after order
Payment Terms: L/C, T/T
Supply Ability: 1000 set per year
Contact Now
Detailed Product Description
Name: Disc Separator Centrifuge Feature: High Performance
Voltage: 220V/380V/400V/440V Power: 15 Kw
After Service: Engineer Availabe To Service On Site

High Performance Oil Water Separator / Liquid Solid Disc Stack Centrifuge



Oil Water Separator Description


Oil Water Separator for edible oil refinery factory is special equipment for oil and fat refining, it has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noist and fine separating affection. Centripetal pump system designed by our professional designer has the traits as stability outlet pressure, large regulating sphere and operating easily. Also this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating testing instrument can view vibrating number at any time. We can make separating and discharing to the best affection from regulate separting parameter directly at the screen.


Oil Water Separator Principle


The disc separator is specially used for the two phase and three phase separation. The two phase separation is to separate the suspended solid from liquid or separate two liquids which have the different specific gravity and are immiscible. The three phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time .



Oil Water Separator ​Application



1. Soybean, Rapeseed, sunflower seed, cotton seed

2. Palm oil, Coconut oil, linseed oil

3. Peanut , Corn Germ , Rice bran oil

4. Special oil, such as sesame oil, orange peel oil, safflower oil and so on


High Performance Oil Water Separator / Liquid Solid Disc Stack Centrifuge
Oil Water Separator model list



Model Flowrate Inlet pressure Outlet pressure Power Weight
DHZ360 1200-2500 LPH  0.05 MPA 0.1-0.25 MPA 7.5 KW 1280 KG
DHZ470 2500-7000 LPH 0.05 MPA 0.1-0.25 MPA 15 KW 1880 KG
DHZ550A 5000-10000 LPH 0.05 MPA 0.1-0.25 MPA 18.5 KW 2200 KG
DHZ550E 6000-15000 LPH 0.05 MPA 0.1-0.25 MPA 22 KW 3000KG
DHZ700 15000-30000 LPH 0.1 MPA 0.2 MPA 30 KW 3300KG
DRZ360 1200-2500 LPH 0.05 MPA 0.1-0.25 MPA 5.5 KW 750KG
DRZ400A 2000-6000 LPH 0.05 MPA 0.1-0.3 MPA 7.5 KW 1150KG
DRZ400E 4000-7500 LPH 0.05 MPA 0.1-0.3 MPA 7.5 KW 1300 KG
DRZ550 6000-18000 LPH 0.05 MPA 0.1-0.3 MPA 22 KW 2200 KG



Oil Water Separator Core capacity



1. Degumming

2. Deacidification

3. Dewaxing

4. Fractionation

5. Water washing

6. Squeezed oil clarification

7. Lecithin deoiling

8. Frying oil refining



Oil Water Separator Details



 High Performance Oil Water Separator / Liquid Solid Disc Stack Centrifuge

Our service


During selection process :
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
After service :
1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
4. 24 hours technical consultation .
5. The customer could get trained by our experienced tecnician.
6. Routine tracing will be done timely.
7. Guide you do the normal maintenance.
8. Suggestions and any comments &reflection from customer would be treated in priority.
9. Markting team will visiting if you need.

FAQ


1) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.

2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed,advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing,transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.

3)Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .

4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
