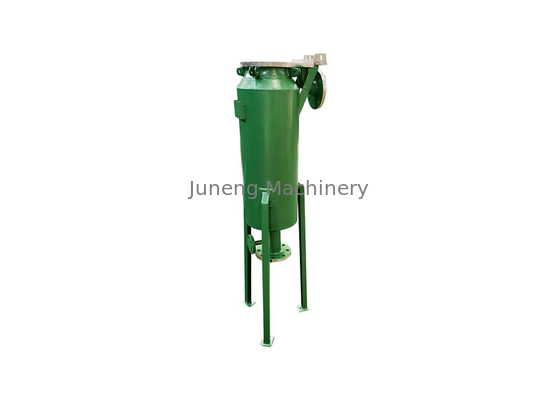

Chemical Vertical Industrial Bag Filters/ Solid Liquid Filtration Filter

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE、 ASME U、ISO9001
Model Number DL-1P1S
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details plywood case
Delivery Time 10-30 days
Payment Terms TT, L/C, D/A, D/P, Western Union
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Vertical Plate Pressure Filter Shell Diameter ∅500
Space Between Filter Leaf 50 Inlet/outlet Caliber DN40
Overflow Port DN25 Application Chemical
High Light

duplex bag filter


high temperature filter bag

Leave a Message
Product Description

Chemical Vertical Plate Pressure Filter / Solid Liquid Filtration Filter


Main features


With such features as small volume, convenient operation, low cost and scientific and reasonable design, the DL series bag filter is a new type of "security" filtering equipment that has thoroughly solved the problem of "four leakages" Its handling capacity ranges from 2 tons/hour to 6 tons/hour.


The equipment can be made of carbon steel or stainless steel. It is mainly composed of cylinder, flat head, mesh tube, filter bag etc. It can be widely used for precision filtration in such industries as biological pharmacy, oil, chemical industry, plant extraction etc.



Product Applications:


Decoration Industry: paint, printing ink


Foodstuff: beer, juice, edible oil, vegetable oil, milk, mineral water,


Pharmaceutical, medicine, vaccine


Cosmetic, perfume


Chemicals, textile chemicals, sensitization chemical, industrial waste water


Petroleum products



Model Filtration area ㎡ Inlet/outlet caliber mm Max flowrate ㎥/h Max work pressure Mpa Max temperature ℃ Nominal filtration precision μm
DL-1P1S 0.25 DN40 10 0.4 120The working temperature is related to the material of filter bag . 1,5,10,15,25,40,50,65,75,80,100……1200
DL-1P2S 0.5 DN40 20
DL-4P2S 2 DN80 80
DL-6P1S 1.5 DN100 60
DL-6P2S 3 DN100 120
DL-8P1S 2 DN125 80
DL-8P2S 4 DN125 160
DL-10P2S 5 DN125 200
DL-12P2S 6 DN150 240
DL-16P2S 8 DN150 320
DL-20P2S 10 DN200 400
DL-24P2S 12 DN200 480
DL-28P2S 14 DN200 560
DL32P2S 16 DN200 640


Our service


During selection process :


  • Professional Engineer wil recommend you the most suitable model according to your requirement.
  • Supply reference process flow chart .
  • Supply on-site installation and operation test
  • Integration for control system and process
  • Customized size and structure




1. Leaf filter installation, Debugging.


Provide leaf filter machine installation files, technical data and related soft copies or videos etc


2. Leaf filter warranty


The provider guarantee the leaf filter could meet production technical standard and performance requirements indicated in the agreement.


Warranty: 12 months for the machine after delivery.


3. Leaf filter technical support


Our company will make occasional call to find problems and solve them in time. Provide technical support timely.


4. 24 hours website hot line service.


For big leaf filters order or project,to dispatch technician is negotiable. Aftersales Guarantee


How could you choose suitable one? Please email us from the following aspects.
