Product description:

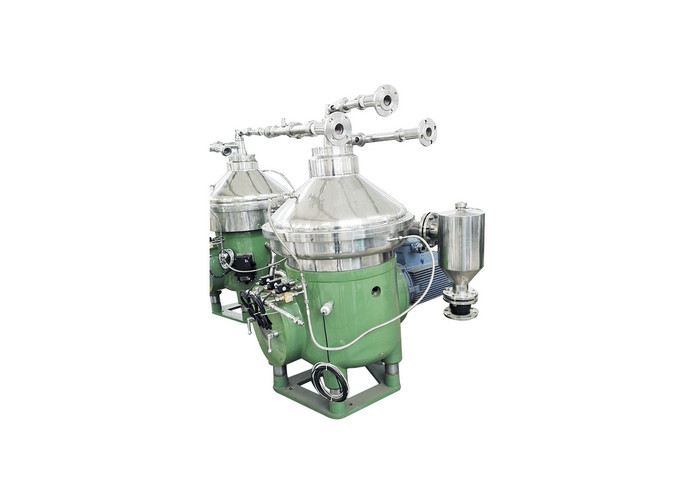

KYDH206SD-23 series disk separators are mainly made up of inlet and outlet mechanism, drum , machine cover, vertical shaft, horizontal shaft, machine base, hydraulic system, etc.


The marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil, heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine

The unfiltered materials (mixed liquid) are transmitted to the heart parts of this machine( the inside of the drum). Under the actions of strong centrifugal force, the materials will pass though the intervals of a group of disk piece bundles. And then, the neutral hole of the disk piece being the interface, the liquid with higher density (heavy phase) will move outward the neutral hole along the disk piece, flowing to the large centripetal pump. The heavy residues will be accumulated in the sediment area, waiting for discharge out of machine. The liquid with lower density (light phase) will move inward and upward along the disk piece wall and gather in the small centripetal pump. The heavy phase and light phase are outputted by the large centripetal pump and small centripetal pump respectively.

Product competitive advantage:

1, There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum.

2, This series of separator outfits various specific gravity rings with different diameter, which can be selected and used according to the density and volume of the materials.


Product Specifications:
