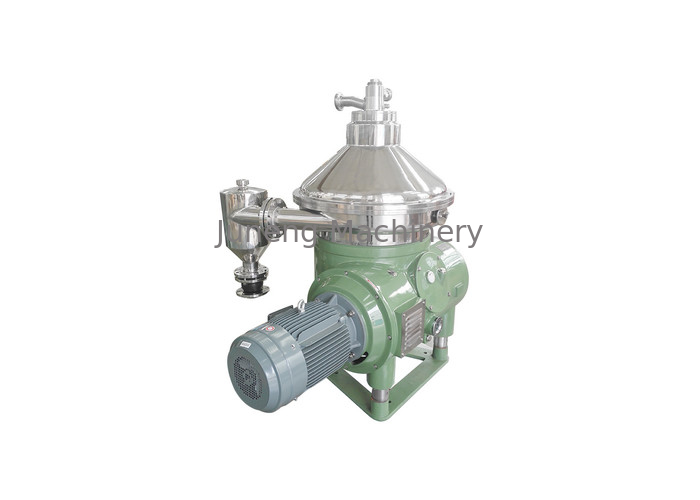

Modular Design Waste Oil Centrifuge Separator , Centrifugal Solids Separator

Product Details:
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE、ISO9001
Model Number: DHSY470
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: negotiation
Packaging Details: Standard Wooden Case
Delivery Time: 50 days
Payment Terms: TT
Supply Ability: 40 set / months
Contact Now

Detail Information

Name: Waste Oil Centrifuge Separator Design: Modular Design
Other Name: Centrifugal Solids Separator Operation: Automatic Operation

Product Description

Modular Design Waste Oil Centrifuge Separator , Centrifugal Solids Separator



Waste Oil Centrifuge Separator Feature



Water Control: Automatic control unlocking water, sealing water and water-seal/water switching.
Pneumatic Control: Filter and adjust compressed air, control three-way changeover pneumatic valve.
Temperature Control: Automatic control the temperature of the oil line, also control separately or with electric control cabinet at the same time.
Buzzer Control: Monitor oil temperature, pressure, over loading, non-discharging and leaking, and offer agroup of passive contactor stretching out to control panel.



Waste Oil Centrifuge Separator Quick Details

  • Condition: New
  • Type: Centrifuge
  • Product Type: biodiesel
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: JUNENG
  • Model Number: DHSY
  • Voltage: 220/380 V
  • Power(W):7.5-22 Kw
  • Weight: 1800-2300 Kg
  • Certification: CE/ISO
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • bowl type: self-cleaning
  • running: PLC

Packaging & Delivery



Packaging Details: standard seaworthy packing
Delivery Detail: 60 days



Specifications



Biodiesel centrifuge for biodiesel from JunengSeparator. For biodiesel processing.Separation of glycerol from methylesters

Juneng separator DHSY, DHSY series disc stack biodiesel centrifuge are specially designed for use in the production of biodiesel and are particularly suitable in the following applications:

= Separation of glycerol from methylesters after esterification and transesterification reactions
= Washing of methylesters
= Purification of glycerol

* inert gas system is also available

Capacity: 1000 - 10 000 L/h

Each biodiesel centrifuge comes complete with control unit, flameproof electric motor, inlet and outlet connections, auxiliary equipment,a spare parts kit and a set of tools.



Quality guarantee


1.Separator manufactured in compliance with quality guaranteen system of ISO9001-2000.
2.The Seller shall guarantee that the separator manufactured in compliance with quality

guarantee standard of JB/T8103-2005.
3.The guarantee period shall be 1 year counted from the date on which the commodity arrives

at the port of destination.


Product competitive advantage:

High speed, stable operation, fully closed of inlet and outlet system, low noise, good separation, high oil rate, fully automatic control , easy to operate.




Product Specifications:



Model

Treatment
capacity (L/H)

Inlet
pressure (Mpa)

Outlet
pressure (Mpa)

Weight(Kg)

Outline
dimension (mm)

DHSY360 1200-2500 0.05 0.1-0.25 1280 1500*1150*1500

DHSY470

4000-7000

0.05

0.1-0.3

1880

1800*1200*1800

DHSY550

6000-15000

0.05

0.1-0.3

2200

1850*1550*2050
