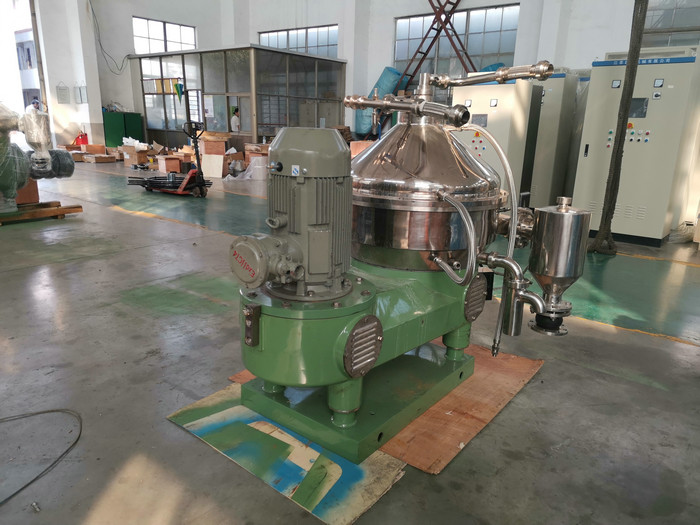

Disc Stack Milk Cream Separator Machine Simple Structure Easy Maintenance

  • Disc Stack Milk Cream Separator Machine Simple Structure Easy Maintenance
  • Disc Stack Milk Cream Separator Machine Simple Structure Easy Maintenance
Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE
Model Number DHN616
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Standard Wooden Packing
Delivery Time 30 days
Payment Terms TT, L/C
Supply Ability 10 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Milk Cream Separator Machine Condition New
Material SUS304/SUS316 Voltage 110-480V
Warranty 12 Months Feature Easy Maintenance
High Light

Milk Cream separator

,

milk degrease separator
Leave a Message
Product Description

Disc Stack Milk Cream Separator Machine Simple Structure Easy Maintenance



Milk Cream Separator Machine Introduction



DHN Disc Stack Centrifuges is mainly used for liquid-solid separation for the material with solids content between 1% ~10% and the diameter of solid particles is bigger than 0.5μm. This machine has strong separation capability, and the separation factor is 9250. It can be operated manually,automatically and remotely. It is simple in structure and easy in maintenance.



The bowl is driven by the motor through the friction clutch and screw gear pair and rotate at high speed around the mainshaft.Stock liquid flows from the center charging inlet on the top of separator to the bottom through the charging pipe and then passes through disc seats to the space of the bowl.The bigger gravity solid phase particles in the stock liquid is settled down to the bowl's wall under the action of the centrifugal force and drained out from the residue under the control of the side bowl,the liquid phase is fully settled down to the center along the discs and drained out by the centripetal pump.



Milk Cream Separator Operation Principle



The separated material will be input into the heart of the separator, i.e. the drum.

By the strong centrifugal force field, the material (hybrid liquid) passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface, the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the soap residue will flow toward the big centripetal pump.

The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump, Maximum pressure must less than 0.3MPa


PLC of Milk Cream Separator



Disc Stack Milk Cream Separator Machine Simple Structure Easy Maintenance 0



Milk Cream Separator  Main Features


1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
4, Lower noise
5, Perfect separating affection.


Model
Treatment capacity (L/H)
Inlet Pressure (Mpa)
Outlet pressure (Mpa)
Motor power (Kw)
Weight (Kg)
Outline dimension (mm)
DHN360
2000-5000
0.05
0.1-0.35
7.5
1200
1530*1150*1500
DHN470
5000-10000
0.05
0.1-0.4
15
1600
1800*1200*1750
DHN550
10000-20000



0.05
0.1-0.4
22
2300
1950*1550*1960
DHN616
25000-35000
0.1
0.3
37
3000
2185*1728*2082


Our Service



Pre-Sales Service


   After-Sales Service
 Inquiry and consulting support  Engineers available to service machinery overseas


 Sample testing support.

 Training how to instal the machine


 View our Factory

 Training how to use the machine


Field installation and commissioning.

Our company has set up a professional after-sales service technical team. All sell-offs products shall have engineer to guide installation, assist debugging and train operators until they have mastered them.

If problem occurs while the equipment operation, we will immediately process it, promise to feedback within two hours after informed. After-sales service engineer shall be arranged to the site to solve the problems. He will never leave, until the user satisfaction.


Packing & Delivery

Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
