| Brand Name: | Juneng Machinery |
| Model Number: | DHN470 |
| MOQ: | Negotiation |
| Price: | Negotiable |
| Delivery Time: | 30 days |
| Payment Terms: | TT, L/C |

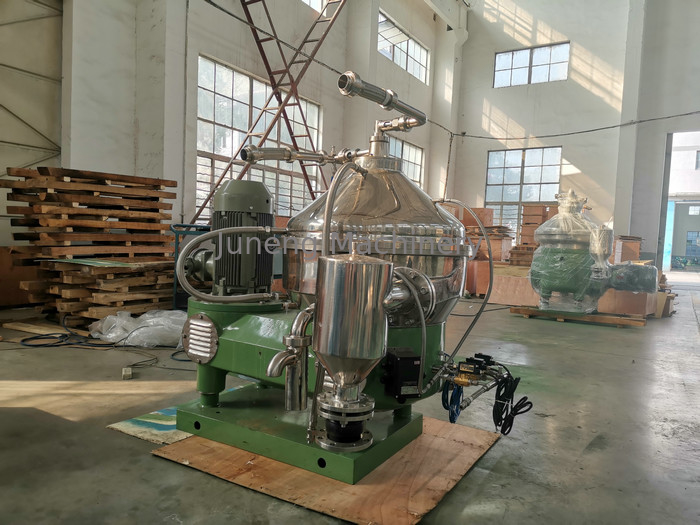

Durable Stainless Steel Cream Separator / Industrial Centrifugal Cream Separator
Stainless Steel Cream Separator Application
Beverage: Wine, tea, coffee and beer.
Juices: Vegetable juices, various kinds of fruit juices
Vegetable oil: Coconut oil, colza oil, cotton seed oil, corn oil, palm oil, soybean oil, peanut oil, rice oil, sesame oil, safflower oil,
Animal oil: Fish oil and other animal oil.
Mineral oil: Fuel oil, diesel oil, lubrication oil, transformer oil and waste oils.
Stainless Steel Cream Separator Feature:
Disc centrifuge can realize liquid-liquid-solid separation. it can be operated manually or automatically or remotely. This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemials, petrol, metallurgy and biology, etc.
|
Model
|
Treatment capacity (L/H)
|
Inlet Pressure (Mpa)
|
Outlet pressure (Mpa)
|
Motor power (Kw)
|
Weight (Kg)
|
Outline dimension (mm)
|
|
DHN360
|
2000-5000
|
0.05
|
0.1-0.35
|
7.5
|
1200
|
1530*1150*1500
|
|
DHN470
|
5000-10000
|
0.05
|
0.1-0.4
|
15
|
1600
|
1800*1200*1750
|
|
DHN550
|
10000-20000
|
0.05
|
0.1-0.4
|
22
|
2300
|
1950*1550*1960
|
|
DHN616
|
25000-35000
|
0.1
|
0.3
|
37
|
3000
|
2185*1728*2082
|
Name: Parts in the rotating bowl drum
Brand: Juneng
Original: China
All parts & components contacting materials are made of stainless steel, can effectively minimize the corrosion from the materials to be separated, and meet hygienic requirements for food.
Machine Parts
Name: Drum
Brand: Juneng
Original: China
The drum is a component to separate material and rotates at high speed, is the heart of the separator.
The separator bowl has gone through precise dynamic balance, it can run steadily, with low vibration and noise at operation.
Name: Shaft
Brand: Juneng
Original: China
The vertical shaft is to transmit power, is equipped with speed step-up gear (small spiral gear) and hi-speed rotating part.
The cross shaft is to transmit motor power to the vertical shaft and main parts of the drum.
Machine Parts
Name: Equipment Base
Brand: Juneng
Original: China
Underframe is the main part for supporting the whole separator and connecting base, all four supporting feet of the baseframe are equipped with damping rubber pads, which can isolate vibration between the separator and building very well.
Name: PLC Control Box
Brand: Juneng
Original: China
The separator is equipped with an automatic control cabinet. It consist of an industrial computer and auto overload protector, is highly automated, highly adaptive to change in process, easy to adjust, can greatly reduce the operation labor of workers.
