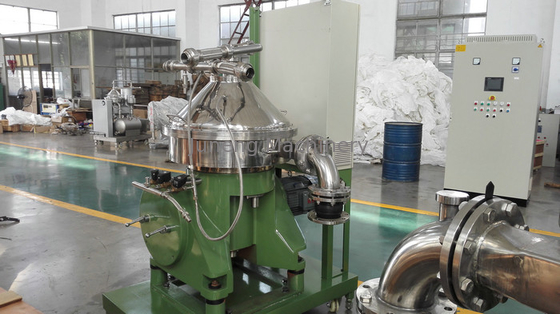

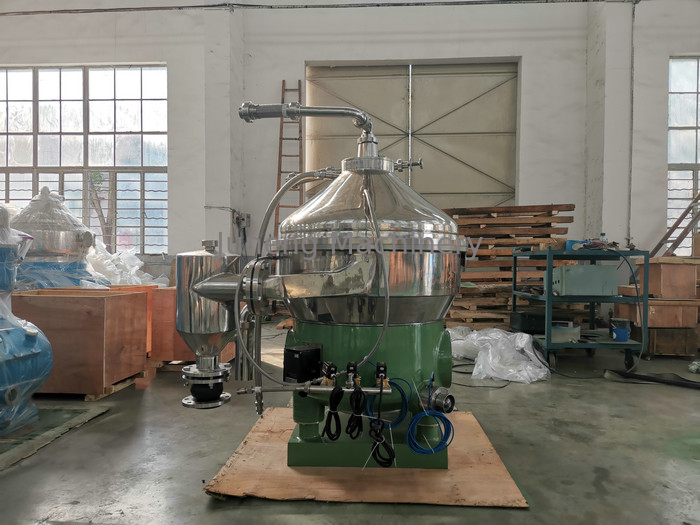

Disc Bowl Centrifugal Separator For Milk Processing Remote Auto Operation

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE
Model Number DHNZ204
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Standard Wooden Packing
Delivery Time 30 days
Payment Terms TT, L/C
Supply Ability 10 set / months
Product Details
Type Centrifuge , Separator ,purifier Condition New
Application Milk Industry Name Centrifugal Separator For Milk Processing
Operation Remote Auto Operation Feature Disc Bowl
High Light

Milk Cream separator

,

milk degrease separator

,

Dairy separator

Leave a Message
Product Description

Disc Bowl Centrifugal Separator For Milk Processing Remote Auto Operation



Centrifugal Separator description:



The DHN (DHNZ) series cream separator have been designed for the separation of the CREAM and of the buttermilk from dairy production.


Juneng Separator enable separate the extreme tiny ( as less than 1mm) solid particles which dispersed in suspensions from the liquid phase out.



DHNZ series separator is mainly used in milk cream industry.


Centrifugal Separator Working principle:



Centrifugal Separator the bowl will be driven by the main motor by the friction clutch and screw gear pair to rotate highly around the main shaft. Stock liquid flows from the center charging inlet on the top to the bottom through the charging pipe. And then passes through disc seats to the bowl's space. The bigger gravity solid phase particles in the stock liquid is settled down to the bowl's wall by the centrifugal force and then under the control of the side bowl drained out of the residue outlet but liquid phase is fully settled down to the bowl wall by the centrifugal force field and then under the control of the side bowl it is drained out of the residue outlet but liquid phase is fully settled down to the center along the discs to drain out by the centripetal pump.



Centrifugal Separator advantage:



1, High rotating speed

2, Lower noise

3, Perfect separating affection.



Centrifugal Separator Specifications:



Model

Treatment
capacity (L/H)

Inlet
pressure (Mpa)

Outlet
pressure (Mpa)

Motor
power (Kw)

Weight(Kg)

Outline
dimension (mm)



DHNZ204

1000-1500

0.05

0.1-0.2

4

520

810*850*1350

DHNZ360 2000-3000 0.05 0.1-0.3 7.5 1200 1530*1150*1500
DHNZ470 3000-7000 0.05 0.1-0.4 15 1600 1800*1200*2030
DHNZ550 5000-10000 0.05 0.1-0.4 22 2300 1950*1550*1960



PLC Control of Centrifugal Separator



Disc Bowl Centrifugal Separator For Milk Processing Remote Auto Operation 0



Quality guarantee
1.Separator manufactured in compliance with quality guaranteen system of ISO9001-2000.
2.The Seller shall guarantee that the separator manufactured in compliance with quality

guarantee standard of JB/T8103-2005.
3.The guarantee period shall be 1 year counted from the date on which the commodity arrives

at the port of destination.,



Disc Bowl Centrifugal Separator For Milk Processing Remote Auto Operation 1

Disc Bowl Centrifugal Separator For Milk Processing Remote Auto Operation 2
