Vacuum Rotary Leaf Filter / Horizontal Leaf Filter Completely Sealed Filtration

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE、 ASME U、ISO9001
Model Number WYB-100
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Carbon Steel,SS304/SS316 Warranty 1 Year
Application Liquid Filtration Type Rotary Leaf Filter
Function Seperation,Purification Filter Spare Parts Supply The Whole Lifetime
High Light

horizontal pressure filters


horizontal leaf filter


liquid filtration horizontal leaf filter

Leave a Message
Product Description

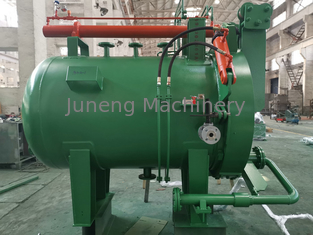

Vacuum Rotary Leaf Filter / Horizontal Leaf Filter Completely Sealed Filtration


Rotary Leaf Filter Characteristics:





(1) completely sealed filtration, no leakage, no environmental pollution

(2) the mesh plate automatic pull structure, convenient for observation and slag removal

(3) double filter, the filter has big filter area, capacity of large amount of slag

(4) vibration slag discharge, reduce the labor intensity

(5) the hydraulic control, to realize the automatic operation

(6) the device can make the large capacity, large areas of filtering system


Rotary Leaf Filter Application:


Food industry : Syrups, edible oils, dewaxing , decolour, degrease

Dry, semidry cake and clean filtrate recovery.


Rotary Leaf Filter advantage:


1, Fully hermetic filter , no leakage, no pollution.

2, Filtering gauze flakes can be pulled out automatically, and easy to be inspected and cleaned.

3, Automatically residue discharging by which labor can be largely reduced.

4, A large filtration area and large solids holding capacity can be obtained .


Rotary Leaf Filter Specifications:


Area series ( ㎡)

Shell diameter series ( mm)

Work pressure ( Mpa)

Work temperature

Proximate treatment
capacity (T/H·㎡)

5, 10, 15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90, 100, 120,
140, 160, 180, 200

900, 1200, 1400, 1500, 1600,
1700, 1800, 2000
