Energy Saving Horizontal Pressure Leaf Filter With Filtration Tank , Filtering Plate

Product Details:
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE、 ASME U、ISO9001
Model Number: WYB-100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Wooden Case
Delivery Time: 60 days
Payment Terms: TT
Supply Ability: 40 set / months
Contact Now

Detail Information

Material: Stainless Steel,carbon Steel Warranty: 1 Year
Application: Oil,Food Type: Horizontal
Working Pressure: 0.4 Mpa Product Name: Horizontal Leaf Filter
Function: Seperation

Product Description

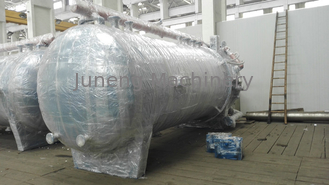

Energy Saving Horizontal Pressure Leaf Filter With Filtration Tank , Filtering Plate



Horizontal Pressure Leaf Filter description:



This equipment is an efficient, energy saving solid-liquid separation equipment of enclosed operation type. It is widely employed in industries such as chemical engineering, petroleum, foodstuff and pharmaceutical, etc.



Horizontal Pressure Leaf Filter consists of filtration tank, filtering plate, drawing structure, and automatic discharge device. It is fully sealed, with no leakage and environmental pollution. The filtering plate can be pulled out automatically, so as to make the observation and residue cleaning more conveniently. It can achieve double-surface filtration, with large filtering area and residue capacity. The residue is discharged through vibration, thus reducing the labor force. The hydraulic pressure can be controlled to achieve the operation automation. This equipment can be made into a filtering system of large capacity and area.



Introduction of Company:



Juneng Group employs a team of well-trained professional, adopts advance EPR production management model in cooperation with state–of–the–art apparatus and process i.e. CNC Turner, Machine Center, Highly Accuracy Test Instrumentation, Quality and Process Control System to ensure quality, stability, and reliability of every product.



Horizontal Pressure Leaf Filter Application:



Food industry : Syrups, edible oils, dewaxing , decolour, degrease

Chemical industries: Sulphur, aluminum sulfate, Polyaluminum chloride, plastic, dyestuff intermediate, bleaching liquid, lubricant additives and intermediate and high pressure polyethylene, etc.

Dry, semidry cake and clean filtrate recovery.



Horizontal Pressure Leaf Filter advantage:



1, Fully hermetic filter , no leakage, no pollution.

2, Filtering gauze flakes can be pulled out automatically, and easy to be inspected and cleaned.

3, As the leaves filtering on both sides, large filtration area and solids holding capacity can be obtained.



Horizontal Pressure Leaf Filter Specifications:



Area series ( ㎡)

Shell diameter series ( mm)

Work pressure ( Mpa)

Work temperature
(℃)

Proximate treatment
capacity (T/H·㎡)

5, 10, 15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90, 100, 120,
140, 160, 180, 200

900, 1200, 1400, 1500, 1600,
1700, 1800, 2000

0.4

150

Oil

0.2





Beverage

0.8



Energy Saving Horizontal Pressure Leaf Filter With Filtration Tank , Filtering Plate
