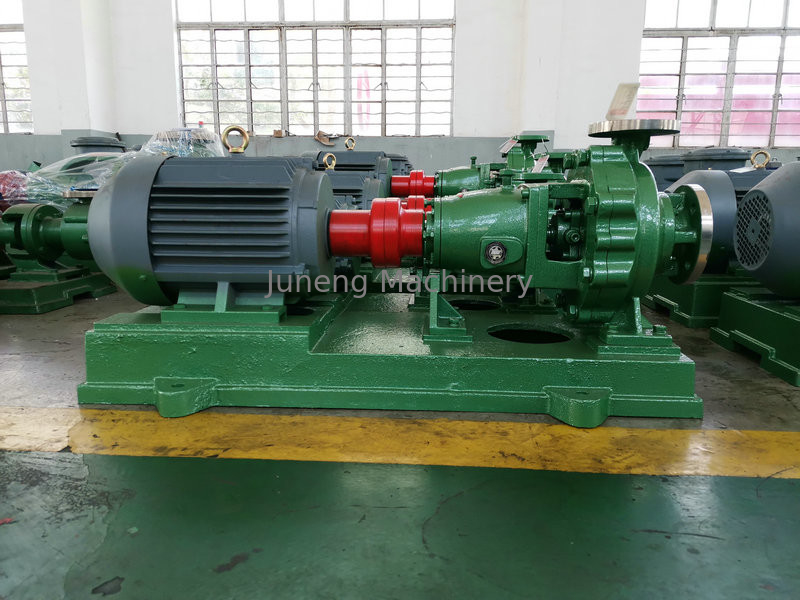

Stainless Steel Centrifugal Transfer Pump Chemical Engineering Using

  • Stainless Steel Centrifugal Transfer Pump Chemical Engineering Using
  • Stainless Steel Centrifugal Transfer Pump Chemical Engineering Using
Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE、ISO9001
Model Number IHK40-25-180
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Standard Wooden Case
Delivery Time 60 days
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Centrifugal Transfer Pump Flow 6.3 M3/h
Lift 40 M NPSHr 2 M
Speed 2900 Rpm Material Stainless Steel
High Light

slurry centrifugal pump

,

waste oil transfer pumps
Leave a Message
Product Description

Stainless Steel Centrifugal Transfer Pump Chemical Engineering Using​



Centrifugal Transfer Pump description:



centrifgual pump complies fully to the European Standard BS EN733 / DIN24255 of performance and dimensions. They are used for pumping clean water or liquids similar to water, achieving wideapplicationin plants, mines, city water supplies, air-conditioning coolers, firefighting system and irrigation.

Pumps of the same model have different performance levels basing on different diameter after impeller trimming. Overall the whole series, there are only four sizes of shaft and five of bearing housing. As long as their bearing housings are of the same size, different pumps can interchange chief parts such as shaft, shaft sleeve, shaft seal, impeller nut, etc.

Centrifugal Transfer Pump is also very easy to be installed and maintained. Back pull-out design, driven through flexible coupling, so that pump casing and motor can remain in position while other spare parts are removed.



Centrifugal Transfer Pump advantage:



1, The structure of the pump conforms to international standard. The impellers are tape open structure. It’s suitable for the liquid with high solids concentration and various suspension.

2, It’s horizontal split type and back pullout construction. It needn’t to dismount pipes and motor when maintenance.

3, Shaft seal introduce mechanical seal and power seal. It’s safety and reliable.

4, Wear parts of the cover of impeller can interchange. Repairing work is simple which reduces costs.




Centrifugal Transfer Pump Specifications:



Model Flow Q m3/h

Lift H

m

Speed

r/min

Power

kW

NPSHr

m
IHK40-25-180 6.3 40 2900 4 2.3
IHK50-32-200 12.5 50 2900 7.5 2.3
IHK65-40-250 25 80 2900 18.5 2.3





QC/Technical Support



1, Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.

2, Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company.





Packaging



Plastic film package inside, wooden case package outside

Stainless Steel Centrifugal Transfer Pump Chemical Engineering Using 0



Lead Time :

Quantity(Set) 1 - 1 >1
Est. Time(days) 30 To be negotiated
