Automatic Disc Stack Centrifuge , Centrifugal Oil Water Separator Three Phase

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT
Supply Ability 40 set / months
Product Details
Type Cooking Oil Separator Voltage 380V(or As Need)
Warranty 1 Year After-sales Service Provided Overseas Service Center Available
Function Disc Separator Operation Fully Automatic
High Light

water oil separators

,

oil separator machine

Leave a Message
Product Description

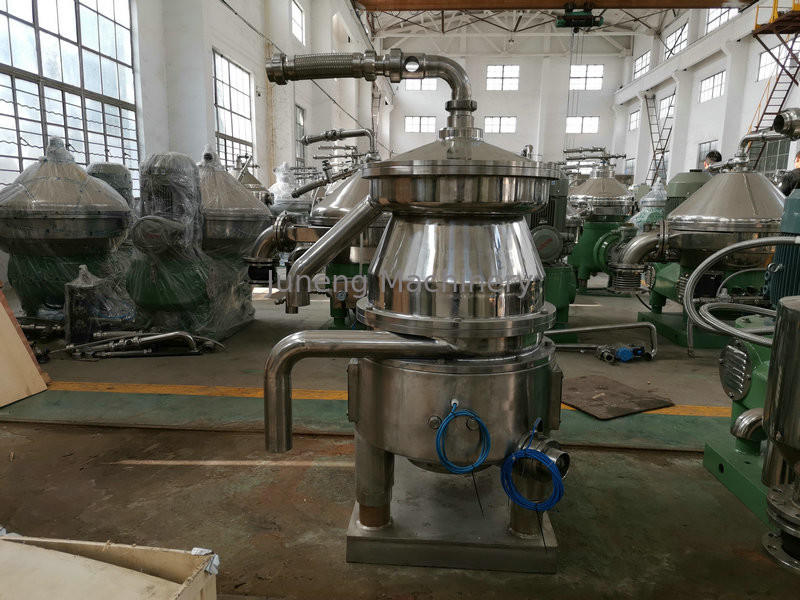

Automatic Disc Stack Centrifuge , Centrifugal Oil Water Separator Three Phase



Working Principle of Disc Stack Centrifuge:



The motor actuates the bowl to rotate around spindle through transmission system. The separated suspension liquid enters into bowl through the feed pipe on top, and falls on the material distribution tray. Under the function of centrifugal force, it flows to the wall of bowl, and the liquid phase is thrown into the space of machine cabinet through gauze and filter opening on the wall of bowl and collected on the under pan, to be discharged via liquid drain pipe, while the solid phase is retained on the inner side of the filter gauze. If rinse is required, washing water is to be added for rinse through washing pipe. After dehydration is completed, the bowl will stop, then the solid-phase substances will be discharged manually.



Disc Stack Centrifuge Application:



The disc separator is specially used for the two-phase and three-phase separation. The two-phase separation is to separate the suspended solid from liquid or separate two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time.

Solid-liquid separation

Liquid-Liquid separation

Liquid-Liquid-Solid Separation


Disc Stack Centrifuge advantage:



1, High rotating speed

2, Operating stability

3, Completely sealed up of the inlet and outlet system

4, Lower noise

5, Perfect separating affection.



Automatic Disc Stack Centrifuge , Centrifugal Oil Water Separator Three Phase 0
