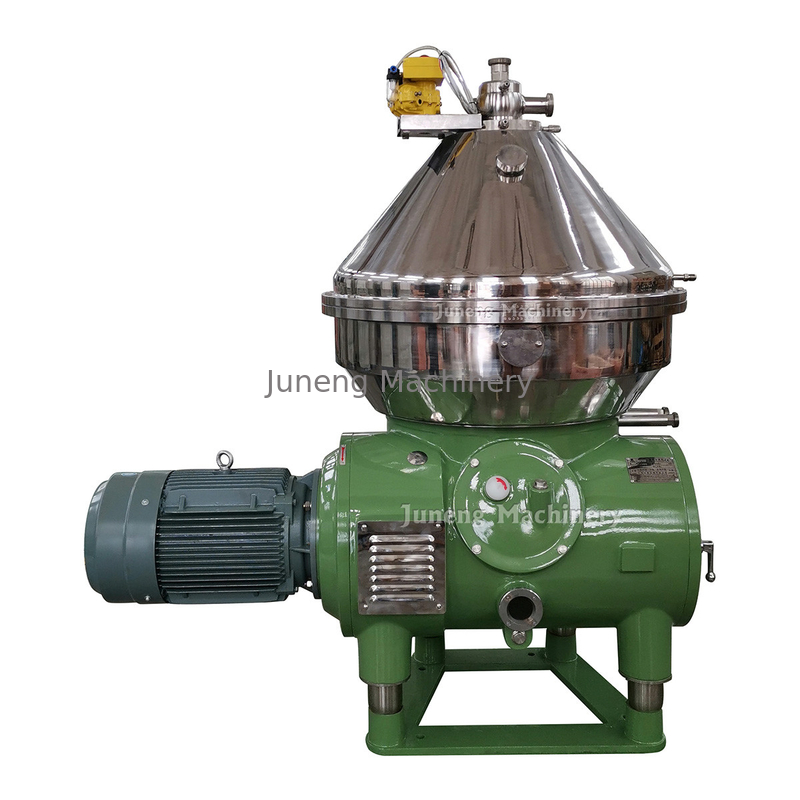

Large Capacity Disc Oil Separator Virgin Coconut Oil Centrifuge Separator
DHZ550E Disk separator is widely used for such process as degumming, de-soaping and water washing for the continuous refining vegetable oil, is one of the best devices for modern oil refining. Meanwhile, depending on different users’ requirements, it is also applicable for separating two liquids, liquid and solid that have different specific gravities in such industries as light industry, chemical, medicine and food, etc.
During the dep processing in the breeding industry, the use of separators can help oil recovery in the processing of subsidiary materials, which not only enhances profits, but also reduces pollution emission.
Three separation disc type separator centrifuge for animal oil factory is mainly used in refining meat oil from animals such as fishmeal facotry,animal oil factory, the capacity from 10t/d~600t/d.
This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
It has advantages of high speed, smooth operating, compact structure, small footprint, all sealed of the inlet and discharge, low noise, good separation. The materials of centrifuge which contact with the parts are stainless steel which meets the requirements of food grade.
The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the feed passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface,
the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the residue will flow toward the big centripetal pump.
The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump.
Product model list
|Model||Flowrate||Inlet pressure||Outlet pressure||Power||Weight|
|DHZ360||1200-2500 LPH||0.05 MPA||0.1-0.25 MPA||7.5 KW||1280 KG|
|DHZ470||2500-7000 LPH||0.05 MPA||0.1-0.25 MPA||15 KW||1880 KG|
|DHZ550||5000-15000 LPH||0.05 MPA||0.1-0.25 MPA||18.5 KW||2200 KG|
|DHZ700||15000-30000 LPH||0.1 MPA||0.2 MPA||30 KW||3300KG|
We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
1. Continuous feeding
2. High separation factor
3. Automatic residue discharging
4. Concise bowl design without frequent washing
5. Hydraulic coupling driving with longer service
6. PLC system automatic control
1. Purifiation of animal fat
2. Purification of fish oil
3. Kitchen waste oil
4. Separation of fish pressed liquid
5. Waste oil
6. Hogwash oil
Separator on site
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.
