| Brand Name: | Juneng Machinery |
| Model Number: | IHK40-25-180 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 60 days |

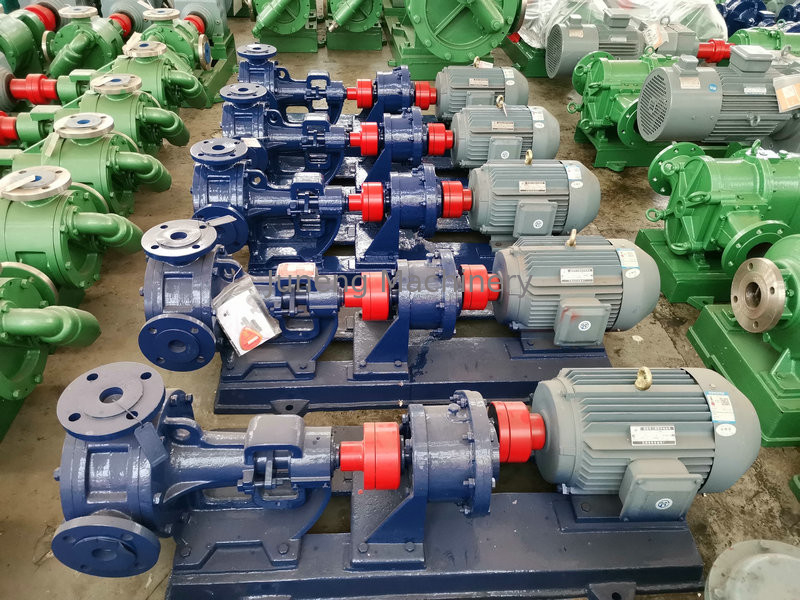

Horizontal Slurry Centrifugal Pump / Small Waste Oil Transfer Pumps
Slurry Centrifugal Pump description:
centrifgual pump complies fully to the European Standard BS EN733 / DIN24255 of performance and dimensions. They are used for pumping clean water or liquids similar to water, achieving wideapplicationin plants, mines, city water supplies, air-conditioning coolers, firefighting system and irrigation.
Pumps of the same model have different performance levels basing on different diameter after impeller trimming. Overall the whole series, there are only four sizes of shaft and five of bearing housing. As long as their bearing housings are of the same size, different pumps can interchange chief parts such as shaft, shaft sleeve, shaft seal, impeller nut, etc.
Slurry Centrifugal Pump advantage:
1, The structure of the pump conforms to international standard. The impellers are tape open structure. It’s suitable for the liquid with high solids concentration and various suspension.
2, It’s horizontal split type and back pullout construction. It needn’t to dismount pipes and motor when maintenance.
3, Shaft seal introduce mechanical seal and power seal. It’s safety and reliable.
4, Wear parts of the cover of impeller can interchange. Repairing work is simple which reduces costs.
Slurry Centrifugal Pump Specifications:
| Model | Flow Q m3/h |
Lift H m |
Speed r/min |
Power kW |
NPSHr m |
| IHK40-25-180 | 6.3 | 40 | 2900 | 4 | 2.3 |
| IHK50-32-200 | 12.5 | 50 | 2900 | 7.5 | 2.3 |
| IHK65-40-250 | 25 | 80 | 2900 | 18.5 | 2.3 |
QC/Technical Support
1, Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.
2, Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company.
Packaging
Plastic film package inside, wooden case package outside
Lead Time :
| Quantity(Set) | 1 - 1 | >1 |
| Est. Time(days) | 30 | To be negotiated |
