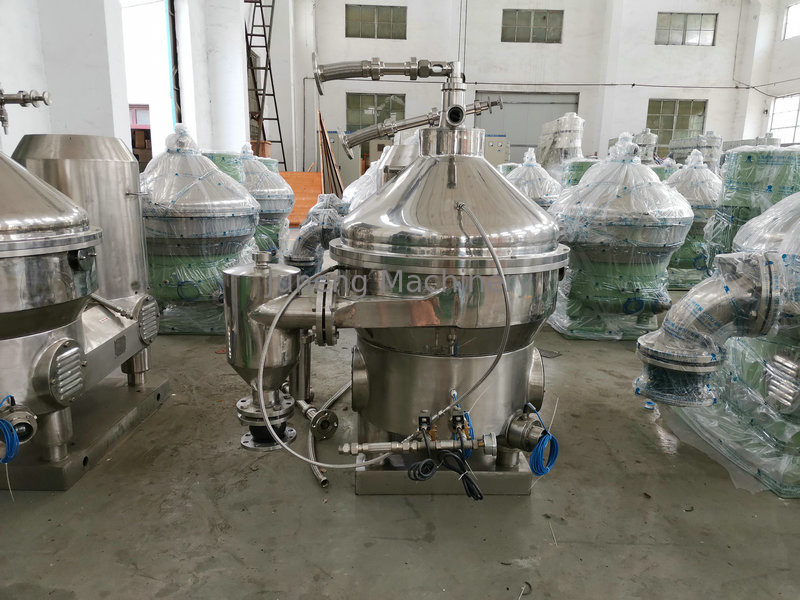

Vetical Centrifugal Solid Liquid Separator / Water Well Sand Separator

Vetical Centrifugal Solid Liquid Separator / Water Well Sand Separator

Centrifugal Solid Liquid Separator Working principle

It can separate rapid succession of solid liquid and liquid liquid ,which is a kind of vertical centrifuge.

A rotary drum is install in the upper end of vertical shaft, the driving device driven by a motor to rotate

at high speed. Drum have a set of a butterfly shaped parts mutually overlapped together.

Have a very small space left between the disc and disc. Suspension pour intodrum by feeding tube

which is located center of the drum.When the slurry flows past the clearance between the disc, solid particles in centrifuge sinking to the sediment is formed on the disc. Sediment falls of the disc along

the sliding surface of the disc and accumulate in the drum at the largest diameter.

The separation of the liquid exhaust drum from the liquid outlet .The function of the disc is to short

the distance between the settlement of solid particles or liquid droplets and to expand the area of settlement of the drum.Because the installation disc in the drum and greatly improves the separators’ production capacity.

Centrifugal Solid Liquid Separator Application:

The disc separator is specially used for the two-phase and three-phase separation. The two-phase separation is to separate the suspended solid from liquid or separate two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time.

Solid-liquid separation

Liquid-Liquid separation

Liquid-Liquid-Solid Separation

Centrifugal Solid Liquid Separator advantage:

1, High rotating speed

2, Operating stability

3, Completely sealed up of the inlet and outlet system
