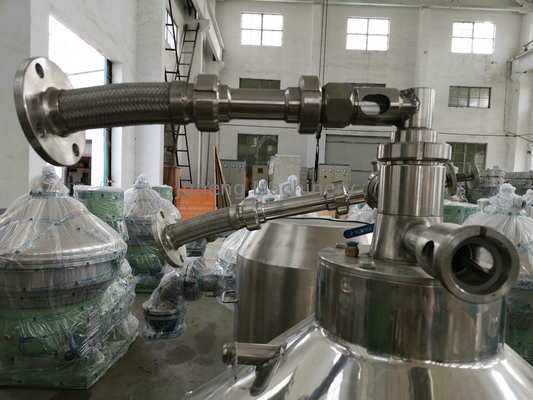

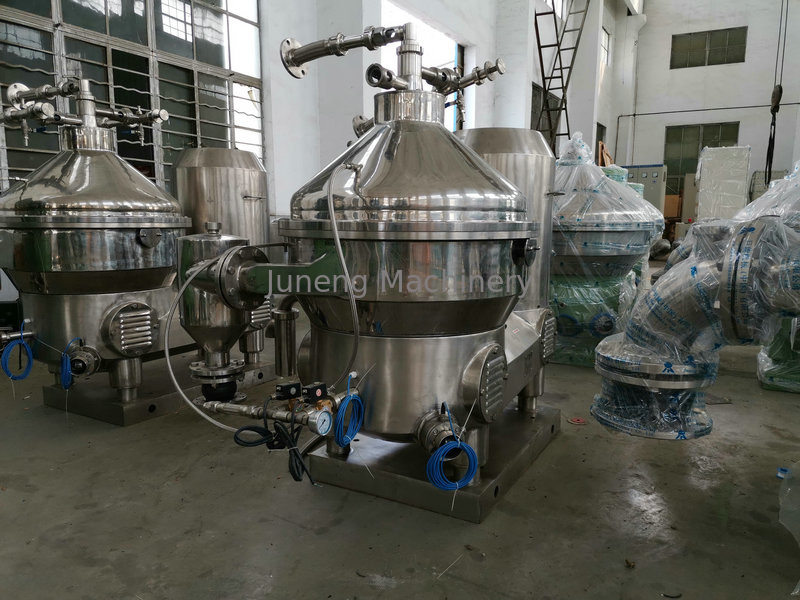

Fruits And Vegetables Disc Oil Separator Continuous Working 220V/380V

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Disc Oil Separator | Voltage | 220V/380V |
---|---|---|---|
Warranty | 12 Months | Function | Liquid-liquid Solid |
Operation | Continuous | Usage | Fruits And Vegetables |
High Light | water oil separators,disc stack centrifuges |
Fruits And Vegetables Disc Oil Separator Continuous Working 220V/380V
Disc Oil Separator Working Principle
The motor actuates the bowl to rotate around spindle through transmission system. The separated suspension liquid enters into bowl through the feed pipe on top, and falls on the material distribution tray. Under the function of centrifugal force, it flows to the wall of bowl, and the liquid phase is thrown into the space of machine cabinet through gauze and filter opening on the wall of bowl and collected on the under pan, to be discharged via liquid drain pipe, while the solid phase is retained on the inner side of the filter gauze. If rinse is required, washing water is to be added for rinse through washing pipe. After dehydration is completed, the bowl will stop, then the solid-phase substances will be discharged manually.
Disc Oil Separator Application:
The solid wall separator are widely used for:
■ separate two liquids from each other, with low solids contents
■ separate one liquid form solids, clarifing liquid or recovering solids
Vegetable oil: Colza oil, cottonseed oil, Corn oil, palm oil, soybean oil, Peanut oil, Rice oil, Sesame oil, Safflower oil and son on.
Disc Oil Separator advantage:
As with disk separators with self-cleaning bowl, the disc separator with solids wall bowl is not able to periodically discharge the separated solids at full speed. Because there is no hydraulic system. So, All solids separated out by a solids wall bowl shall be removed manually.
Due to this separator without control box, so this type separator is very cheaper compare with automatic control separator.
Disc Oil Separator Specifications:
Model |
Treatment |
Inlet |
Outlet |
Motor |
Weight(Kg) |
Outline |
DRZ500 |
6000-18000 |
0.05 |
0.1-0.3 |
22 |
2200 |
1620*1300*2200 |
