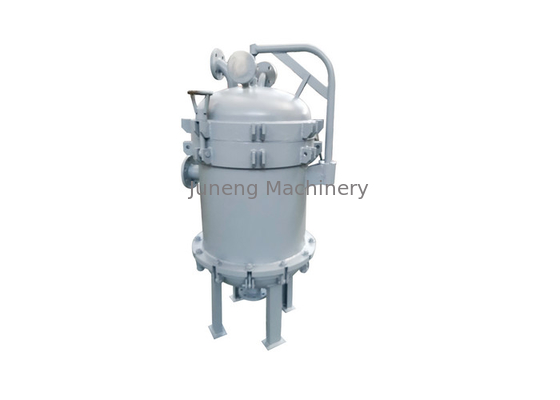

Environmental Protection Vertical Pressure Leaf Filters With Fully Enclosed Operation

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE、 ASME U、ISO9001
Model Number NYB-90
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Standard Wooden Case
Delivery Time 30 days
Payment Terms TT
Supply Ability 40 set / months
Product Details
Product Name Vertical Pressure Leaf Filters Feature Environmental Protection
Warranty Within 12 Months Application Pharmaceutical,chemical,foodstuff
Material Stainless Steel Operation Fully Enclosed Operation
High Light

vertical leaf filter

,

vertical filter press

,

stainless steel vertical pressure filter

Leave a Message
Product Description

Environmental Protection Vertical Pressure Leaf Filters With Fully Enclosed Operation​



Vertical Pressure Leaf Filters Features and Advantages:



1. No filter cloth or filter paper is needed, which greatly reduces the filtration cost;
2, fully enclosed operation, environmental protection, no material loss;
3, vibration slag greatly reduces labor intensity to achieve continuous operation;
4, pneumatic valve slag discharge, greatly reducing the labor intensity of workers;
5, the liquid residue or activated carbon (white clay) filtration or decolorization filtration, can replace the plate and frame filter, is the filter industry is the best choice.


Vertical Pressure Leaf Filters Application:



Oil industry: crude oil, bleached oil, hydrided oil, radonized oil, stearin, fatty acid, etc.

Petrochemical products: diesel oil, lubricating oil, paraffin and mineral moil products
Organic chemical products: various organic acid, ester, benzene and aldehyde
Oil paint: resin, varnish, dye and lacquer


Vertical Pressure Leaf Filters Specifications:



Model

Filtration
 area

Filter cake
 volume

Treatment
capacity

Work

Pressure

Work

temperature

Machine
volume

Machine
 weight

NYB-90

90

1800

14-23 T/H

0.1-0.4 Mpa

≤150℃

7700 L

6500 kg
