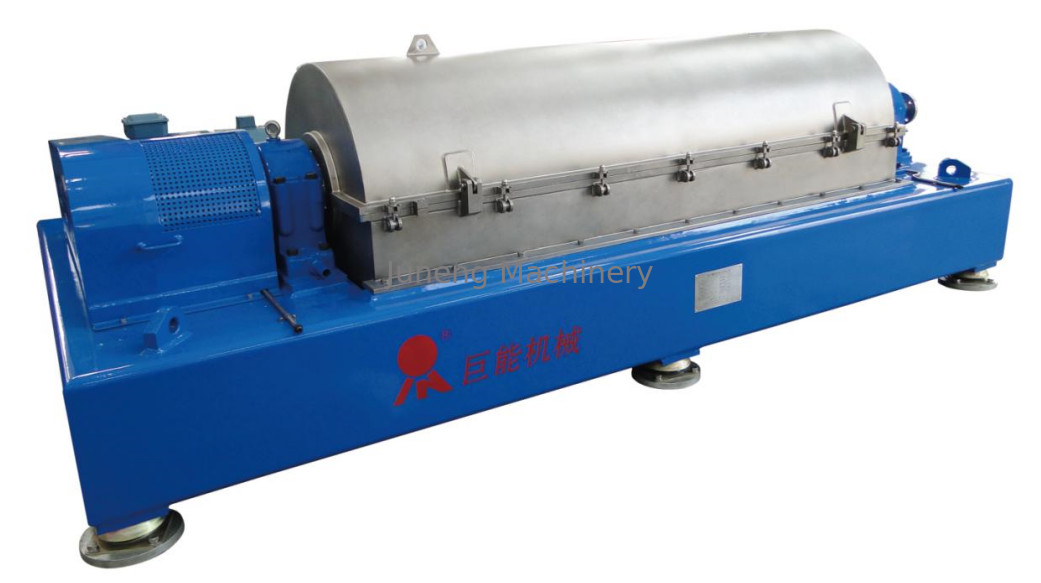

Horizontal Scroll Discharge Centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference . The centrifuges which made by our factory can clarify , dehydrate and classify the suspensions with 0.002-3mm solid - phase particles and thickness range at 0.5~ 40 % . The product can be classify into two type LW counter - current and parallel - current base on its structure feature . According to feed feature , product can be divide into LW two - phase separator , LWS three - phase separator . It is suitable for separating different feed under different process condition , and widely use in pharmaceutical , food , chemical , light industry . Environmental Protection Industry etc.
2.Product structure and operation principle
Production structure : Main body of scroll discharge centrifuge are consist of column - taper drum , helical pusher , speed difference system , shaft seat , frame , encloser , main and auxiliary motor and electric system . Main motor drive drum , auxiliary motor drive planetary gear differential , so that create different speed between drum and screw , then carry on continual separation in 2 4 hours under the strong centrifugal force which produced by the high speed rotate of separator .
Operation principle : Drum and screw rotate at a certain different speed . The feed enters the drum through a stationary inlet tube and is accelerated smoothly by an inlet rotor . The resulting centrifugal forces make the solids collect on the wall of the drum . Screw conveyor continual moving the solid to conical end of drum , discharge through discharge port after dried in the dry area , however , light liquid forms the inner layer and effusion through overflow port of drum , then discharge through liquid outlet port .
3.Main specification and technological parameters
F:Ex-proof W:Waste water S:Three phase FS:Ex-proof and three phase
It applies to carry out separating liquid and solid of the suspensions material which weight thickness of solid phase ≤ 10% (or volume concentration of ≤ 50% after settlement24 hours) and equivalent diameter of solid-phase particle ≥ 0.005 ~ 2 mm, liquid-solid density difference ≥ 0.05 g / cm 3, such as calcium carbonate, calcium sulfate, polyvinyl chloride, lees, bean dregs , soy protein, paper pulp, vegetable oil and palm oil, kaolin, white mud, sludge from environmental protection industry and also applies to various types of chemical products which use settlement centrifugal separation principle, these material all can be carried out effectively.
The material(crude palm oil) passing through the center feeding pipe into the centrifuge(axid feed). Under the action of centrifugal force and material pressure,it passes through the distributor distributed to the drum. The dense solid phase is deposited on the drum wall, and is transported to the drum body cone by auger delivery then falls from the discharge port to the solid collector box.At the same time, the relatively light liquid phase(processed palm oil) is not moving with the spiral because of its fluidity, but through the outlet overflow into the liquid aggregate box.
1)Lower cake transportation costs due to very dry solids
2)Better recovery of nutrients due to very high separation efficiency
3)Lower fresh water consumption compared to other processes
4)Continuous and fully automatic operation
5)24 h operating reliability
6)Optimum wear protection
7)Energy saving design
8) Easy to operate
9 )Easy to maintain
8.Packing & Delivery
9.1 Our service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
3)After-sales Service Technical Team.
Our company has set up a professional after-sales service technical team. All sell-offs products shall have engineer to guide installation, assist debugging and train operators until they have mastered them.
If problem occurs while the equipment operation, we will immediately process it, promise to feedback within two hours after informed. After-sales service engineer shall be arranged to the site to solve the problems. He will never leave, until the user satisfaction.
9.2 Juneng Group
Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Filter, Separator, Decanter centrifuge and pump.
In addition, we have obtained CE certificates, ASME U certificate and ISO 9001 certificate. And Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA,German, Korea,Japan, Pakistan, Malaysia, Singapore, Vietnam and so on.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Recently years, we achieve plenty of honors and we have obtained various certifications such as CE certificates, ASME U certificate and ISO 9001 certificate.
