Antifriction anti – corrosion stainless helical pusher horizontal decanter centrifuge

Product Details:
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE、ISO9001
Model Number: LW350
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard Wooden Case
Delivery Time: 45days
Payment Terms: TT
Supply Ability: 30 set / months
Contact Now

Product Description

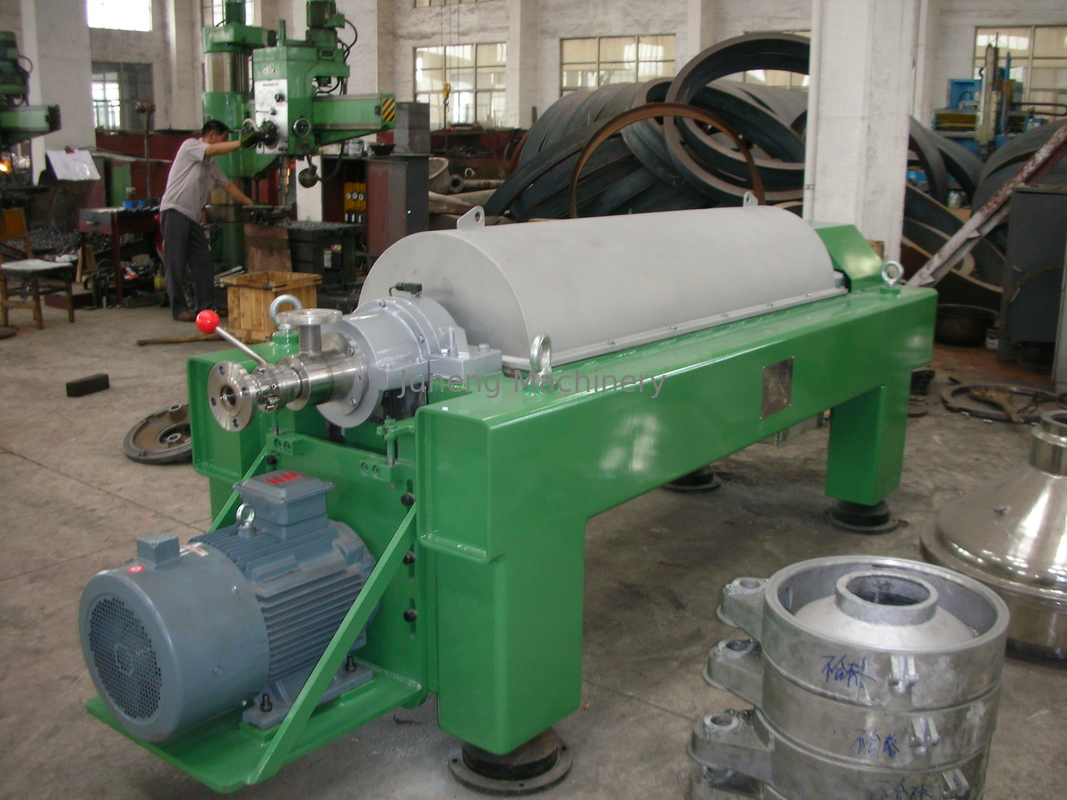

Antifriction anti – corrosion stainless helical pusher horizontal decanter centrifuge
Product description:
Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference. The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature. According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc…



History:



Juneng Group was established at 1987. It has 23 year history. Now its three production bases with a total capacity of 280000 square meters in Nanjing City and Yixing City of Jiangsu Province.



Juneng’s success is contributed by the commitment of every member of the Company. In addition, the specialty and potential of each member is being respected and disinterred.


Product competitive advantage:
1, Helical pusher adopts the special antifriction method: sprinkle hardness alloy or inlay hardness alloy anti-friction disk; anti –corrosion stainless steel is employed for the material of the main parts of drum, so that assure the durability and longer using lifetime of the equipment.
2, According to the operating condition’s characteristics of material, optimize the drum length-diameter raido, drum and structure of drum taper parts.
3, According to the material thickness, flow change , the rotate speed difference and tolerance can be adjusted.
4, The decanter occupied little area, easy to be assembly and commissioning; the whole machine is operated hermetically, and has a good production environment.



Product Specifications:

Model

Drum diameter
mm

Draw Ratio
L/D

Speed of drum
r/min

Factor of
separation G

Spiral difference
rotate speed

r/min

Inlet
capacity(m3/h)

Main/assist
motor (KW)

LW250

250

3.73

4200

2467

2~31

1-7

11/4

LW350

350

4.4

3600

2540

5~25

5~18

22/5.5

LW450

450

4.4

3200

2580

5~25

5~25

30/11

LW520

520

4.1

2850

2365

2~26

10~45

45/11
