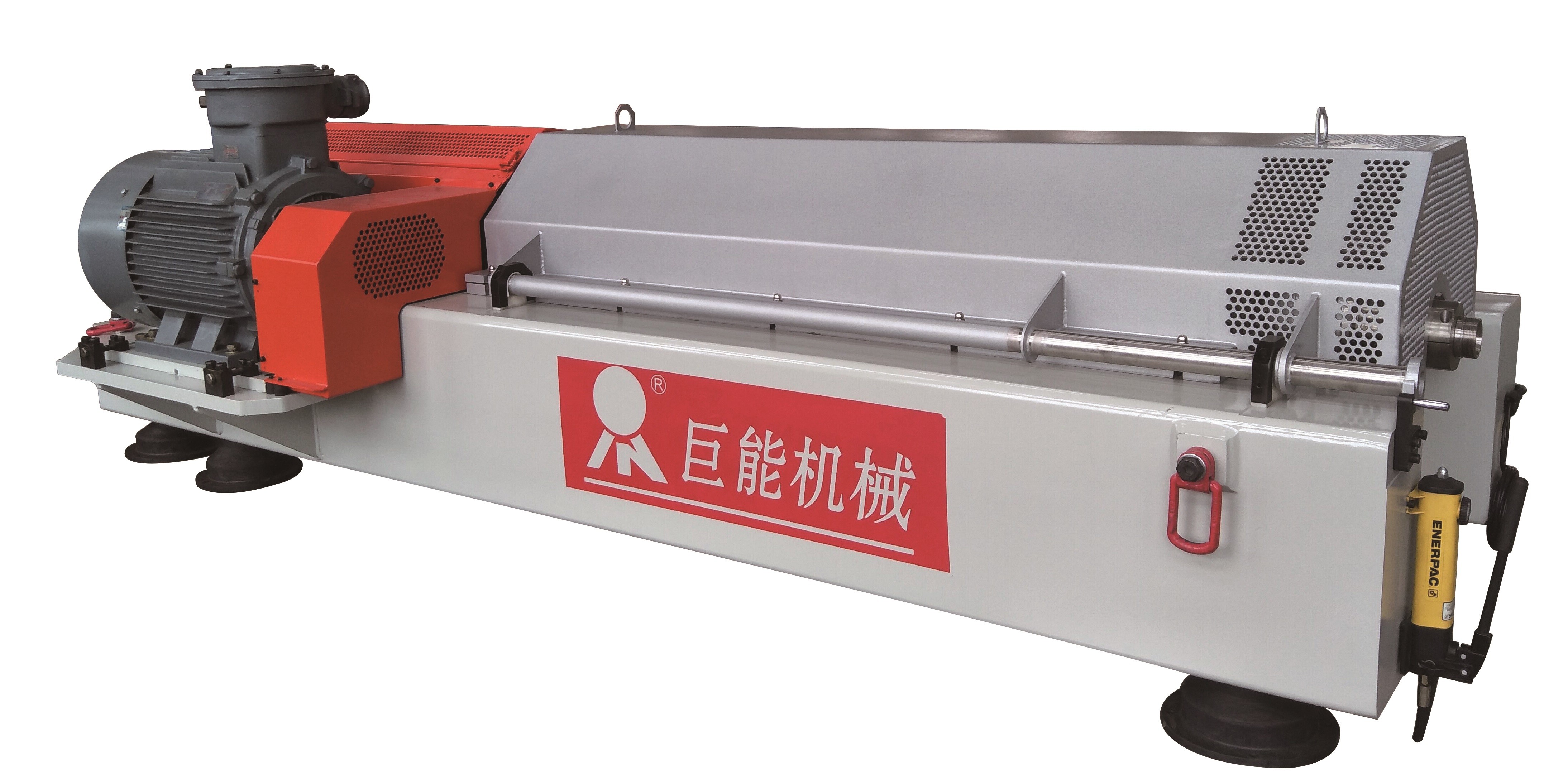

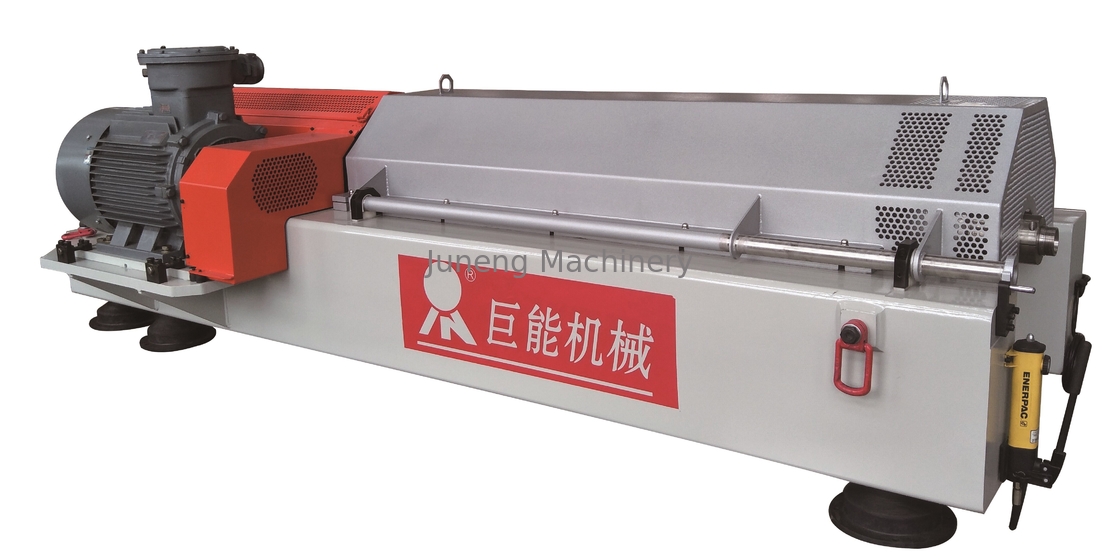

Three Phase Olive Oil Horizontal Centrifugal Decanter Centrifuge For Extraction
|Condition||New||Voltage||Design For Different Country|
|Power||Design For Different Country||Weight||1200-12000 Kg|
|Dimension(L*W*H)||Model Choosing||Warranty||1 Year|
|Operation||Automatic Continuous Operation||Material||Stainless Steel|
|Discharge||Self-cleaning (PLC Control)|
CE Approved Horizontal Decanter Centrifuge,
Horizontal Three Phase Decanter Centrifuge,
Decanter Centrifuge Machine For Extraction
1.Introduction of decanter centrifuge
In these years , Juneng Machinery always insist on producing high - technology centrifugal decanter series painstakingly and obtained several patents . The company supplies its products with many series , various forms , multi - tunction , high separation factor and multi - purpose and becomes the important supplier of centrifugal decanter domestic and overseas at present
The centrifugal decanter can feed , separate and discharge continuously . it is suitable for solid - liquid separation , size grading and mixed liquor clarification of different kinds of suspension liquid , especially for the situation which have big change of concentration , granularity and filter cloth recycles difficultly . This device has the advantage of big capacity , low energy consumption , simple operation , convenient maintenance , etc .
Horizontal Scroll Discharge Centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference . The centrifuges which made by our factory can clarify , dehydrate and classify the suspensions with 0 . 0 0 2 - 3 mm solid - phase particles and thickness range at 0 . 5 ~ 4 0 % . The product can be classify into two type LW counter - current and parallel - current base on its structure feature . According to feed feature , product can be divide into LW two - phase separator , LWS three - phase separator . It is suitable for separating different feed under different process condition , and widely use in pharmaceutical , food , chemical , light industry , Environmental Protection Industry etc .
Main body of scroll discharge centrifuge are consist of column - taper drum , helical pusher . speed difference system , shaft seat , frame , encloser , main and auxiliary motor and electric system . Main motor drive drum , auxiliary motor drive planetary gear differential , so that create different speed between drum and screw , then carry on continual separation in 2 4 hours under the strong centrifugal force which produced by the high speed rotate of separator .
Operation principle : Drum and screw rotate at a certain different speed . The feed enters the drum through a stationary inlet tube and is accelerated smoothly by an inlet rotor . The resulting centrifugal forces make the solids collect on the wall of the drum . Screw conveyor continual moving the solid to conical end of drum , discharge through discharge port after dried in the dry area , however , light liquid forms the inner layer and effusion through overflow port of drum , then discharge through liquid outlet port .
4.Main specification and technological parameters
*** F: Ex-proof, W:Waste water, S: Three phase FS: Ex-- proof and three phase
1. Lower cake transportation costs due to very dry solids
2. Better recovery of nutrients due to very high separation efficiency
3. Lower fresh water consumption compared to other processes
4. Continuous and fully automatic operation
2.Inspection of material is required during in process manufacturing & prior shipment
3.Compliance to technical requirements
