Fish Oil Processing Scroll Discharge Decanter Centrifuge Machine

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number LW
Minimum Order Quantity 1 set
Price USD25000-100000/set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Voltage Design For Different Country
Power Design For Different Country Weight 1200-12000 Kg
Dimension(L*W*H) Model Choosing Warranty 1 Year
Operation Automatic Continuous Operation Material Stainless Steel
Discharge Self-cleaning (PLC Control)
High Light

Fish Oil Processing Decanter Centrifuge

,

Stainless Steel 3 Phase Decanter Centrifuge

,

PLC control Decanter Centrifuge Machine

Leave a Message
Product Description

Fish Oil Processing Scroll Discharge Decanter Centrifuge Machine



1. Product Application



Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.

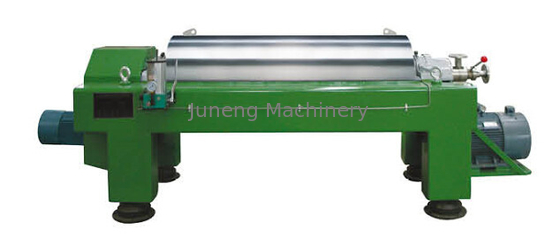

Fish Oil Processing Scroll Discharge Decanter Centrifuge Machine 0

Model
Drum diameter mm
Inlet liquid capacity㎥/h
Power of main/auxiliary motor Kw
Weight Kg
Dimension (max) mm
LW250
250
1-4
11/4
1200
2650*720*900
LW(F)250
250
1-4
11/4
1200
2650*720*900
LW250(W)
250
1~5
11/4
1300
2750*720*900
LW350
350
5~15
22/5.5
2000
3585*980*1238
LW(F)350
350
5~15
22/5.5
2000
3585*980*1238
LW350(W)
350
5~18
15/5.5
2200
3412*1090*950
LW(S)350
350
2~10
22/5.5
2000
3676*980*1238
LW450
450
5~20
30/11
3000

 4380*1080*1360

LW(F)450
450
5~20
30/11
3000

 4380*1080*1360

LW450(W)
450
5~28
30/11
3200

 4380*1080*1360

LW(S)450
450
5~15
37/11
3200

 4195*1080*1360

LW520
520
10~26
45/15
5000

 4840*1160*1465

LW(F)520
520
10~26
45/15
5000

 4840*1160*1465

LW520(W)
520
10~35
16742
5000

 4840*1160*1465

LW550W
550
10-45
20394
6500

 5038*1388*1578

LW650A
650
7-9T
110
8000

 4407*2280*1340

LW650(W)
650
25-60
75/22
8000

 5500*2280*1340

LW720A
720
8-10T
132/160
11000

 4410*3280*1450

LW720(W)
720
35-85
110/30
13000

 5600*3280*1450

*** F: Ex-proof, W:Waste water, S: Three phase FS: Ex-- proof and three phase

2. Application

1)Washing and dehydration of starch
2) Dehydration of soybean wheat proteins
3) Dehydration of fish meal and fish
4) Dehydration of brewers’ grains
5) Purification of juice and dehydration of fruit fiber
6)  Separation and purification of animal and vegetable oil

7) Separation and purification of coal tar
8) Clarification and purification of gypsum
9) Classification and dehydration of starch
10)Classification and dehydration of Kaolin and graphic
11) Classification and dehydration of dyes and pigments
12) Classification and dehydration of mineral thick liquid





3. Main Features



• All parts coming into contact with the product are made of stainless steel.

• 3-phase AC motor for controlled torque starting via frequency converter

• Approximately 80 to 90 % of the oil is recovered.

• Low personnel costs due to continuous and automatic operation.

• Highest g-force for higher solids output

• Adjustable bowl speed via VFD

• Automatic adjustment of differential speed via VFD

• Two motor drive

• Belts for both primary motor and secondary motor

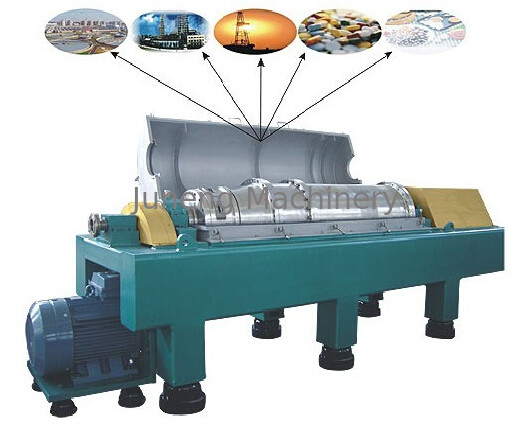

Fish Oil Processing Scroll Discharge Decanter Centrifuge Machine 1



4.Procuct characteristics



1 . Helical pusher adopts the special antifriction method : sprinkle hardness alloy or inlay hardness alloy anti - friction disk ; anti - corrosion stainless steel is employed for the material of the main parts of drum , so that assure the durability and onger using lifetime of the equipment .
2 . According to the operating condition ' s characteristics of material , optimize the drum length - diameter radio , drum and structure of drum taper parts .
3 . According to the material thickness , flow change , the rotate speed difference and tolerance can be adjusted intelligently . During dehydration of the separator , if the thickness of input feed is changed , you can adjust the speed difference and tolerance of the drum and helix .
4 . Select the planetary gear differentia with heavy load and large drive radio .
5 . The separator occupied little area , easy to be assembly and commissioning : the whole machine is operated hermetically , and has a good production environment .
6 . Adopt double frequency conversion control for main motor and differentia auxiliary motor , so make stepless speed regulation come true as well as enlarge the scope of application .

Fish Oil Processing Scroll Discharge Decanter Centrifuge Machine 2



5.Electrical control system



1 . Standard control system : Motor control , transducer control
2 . PLC control system : Consist of PLC programmable controller and other various executive agency , and carry on operating through the touch screen which on the control panel .
( 1 ) Separator speed difference control
( 2 ) Comprehensive electric protection
( 3 ) Attain digital display various running parameter
( 4 ) Touch screen man - machine interface operation





6.Company profile

Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.
In addition, we have obtained CE certificates, ASME U certificate and ISO 9001 certificate. And Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA,German, Korea,Japan, Pakistan, Malaysia, Singapore, Vietnam and so on.
