Centrifuge Oil Water Separator
Created with Pixso. Stainless Steel Disc Centrifuge Separator Machine For Kitchen Illegal Oil

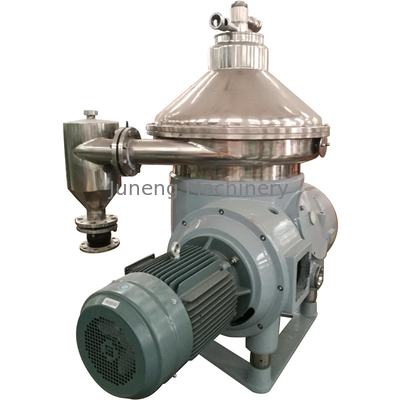

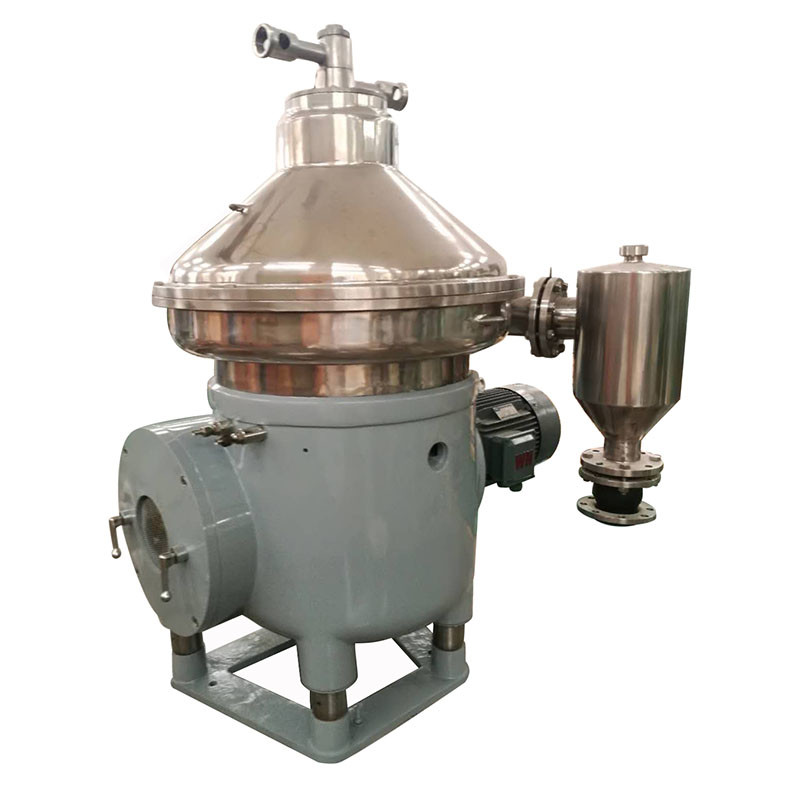

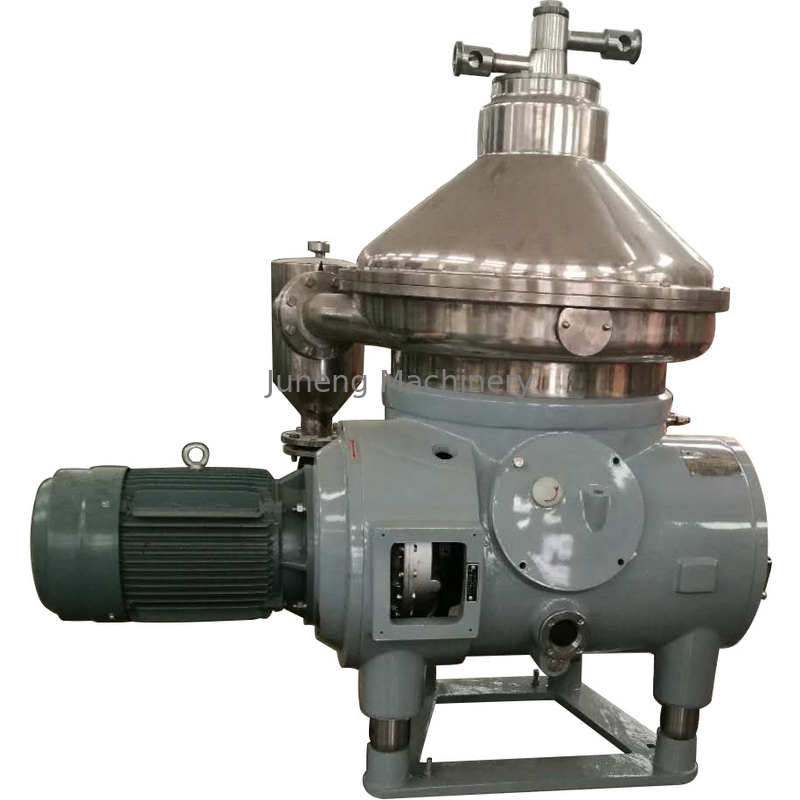

Stainless Steel Disc Centrifuge Separator Machine For Kitchen Illegal Oil

Brand Name: Juneng
Model Number: DHFY211
MOQ: 1 set
Price: USD20000-30000/set
Delivery Time: 50 work days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Jiangsu,China
Certification:
ISO/CE
Product Name:
Disc Centrifuge Separator Machine
Power:
15 Kw
Weight:
1800 Kg
Dimension(L*W*H):
1800*1200*1800
Material:
Stainless Steel
Capacity:
2000-5000 L/H
Voltage:
Customized
Packaging Details:
seaworthy packing
Supply Ability:
30 sets/month
Highlight:

Disc Centrifuge Oil Water Separator

,

Illegal Oil Disc Centrifuge Separator

,

Disc Centrifuge Separator Machine

Product Description

Stainless steel disc centrifuge separator machine for kitchen waste oil and illegal oil

1.Product Description
Huge amount of kitchen waste oil or illegal cooking oil ( commonly known as slops, swill, pigwash) can be treated and obtain biogas, biodiesel, organic fertilizer, high-protein feed and other products.

However, the mature technical is needed to support the oil-water-solid separation in this treatment processing.

Our technical engineers with their advanced design concept have been researched and developed the new special disk separator based on its hard separation feature of kitchen waste oil or illegal, and make the separation efficiency reaches to the extreme and super conditions.
Stainless Steel Disc Centrifuge Separator Machine For Kitchen Illegal Oil 0





2.Technical data



Separation technical parameter for fermentation liquor
Model
Treatment capacity (L/H)
Inlet Pressure (Mpa)
Outlet pressure (Mpa)
Motor power (Kw)
Weight (Kg)
Outline dimension (mm)
DHFY211
2000-5000
0.05
0.1-0.3
15
1880
1800*1200*1800
DHFY214
4000-10000
0.05
0.1-0.3
22
2200
1850*1550*2050





3.Process flow

Stainless Steel Disc Centrifuge Separator Machine For Kitchen Illegal Oil 1



4.Advantages

1, There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum respectively.

2, This series of separator outfits various specific gravity rings with different diameter, which can be used according to the density and volume of the materials.



5.Detailed Images

Main Features

Name: Drum
Brand: Ju neng
Original: China
Domestic famous engines, strong driving force

Stainless Steel Disc Centrifuge Separator Machine For Kitchen Illegal Oil 2



Maintain and Repair.

During warranty period, our engineer could service door-to-door if necessary, or customer could send the fault equipment to our factory.

Stainless Steel Disc Centrifuge Separator Machine For Kitchen Illegal Oil 3



6.Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Stainless Steel Disc Centrifuge Separator Machine For Kitchen Illegal Oil 4



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Stainless Steel Disc Centrifuge Separator Machine For Kitchen Illegal Oil 5
