DL Series Industrial Bag Filters Fully Hermetic Filtering No Pollution

Place of Origin Jiangsu,China
Brand Name Juneng
Certification CE、 ASME U、ISO
Model Number DL
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT, L/C
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Industrial Bag Filtration System Bag Filter Filter Bag Material PP/Nylon/SS
Filter Housing Material Carbon Steel、Stainless Steel 304 / 316 Filtration Accuracy 1-1200 μm
Filtration Area 0.25-16m² Max Working Temperature 120℃ Temperature And The Use Of Bags Related Materials
High Light

DL series Industrial bag filter


Fully Hermetic Filtering Industrial Bag Filter


no pollution Industrial Bag Filter

Leave a Message
Product Description

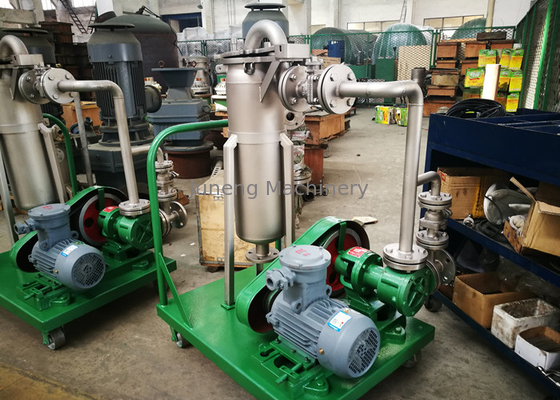

Carbon steel/Stainless steel Industrial bag filtration system bag filter installed in a small cart flexible to move


1.Product Description

DL series bag filter is a multifunction filter equipment with new structure , small occupancy , flexible operation , energy - saving , high - efficiency , enclosed operation and excellent applicability . DL series filter bag is mainly composed by filter cylinder , cylinder lid , quick - opening structure , filter bag reinforce net .
DL series filter bag belongs to pressure filter equipment , liquid flow into the filter bag through the side - way . Filter bag itself is fitted in the reinforce net that the qualified filtrate is achievedafter the liquid pass the filter bag which has various precision ranks.The impurity is seized by the filter bag . The filter bag is easy to be changed and has little consumption of materials .


The filtration system installed in a small cart , it can be flexible in the filtration system Necessary to use different segments .


DL Series Industrial Bag Filters Fully Hermetic Filtering No Pollution 0


2.Main technological parameters

DL Series Industrial Bag Filters Fully Hermetic Filtering No Pollution 1


2.1 Explanation of the Model


DL-P1S: Used for the filter bag with the standard length and the filtration area to be 0.25m²


DL-P2S: Used for the filter bag with double standard length and the filtration area to be 0.50m²


DL-B: The supporting pump and pipelining system of the single filter assembled on a movable type handcart.


DL-2B: The supporting pump and pipelining system of the double-filter assembled on a movable type handcart (the two filters can be used in turn).


2.2 Model description

DL Series Industrial Bag Filters Fully Hermetic Filtering No Pollution 2



3.Parts shows

Stainless steel filter

Stainless steel filter net : adding the stainless steel net in the reinforcingnet can resist high temperature and pressure , repeat washed and prolong service life . The materials are from SS 3 0 4 and SS 3 1 6 . The filter precision is u25m - 1200um

DL Series Industrial Bag Filters Fully Hermetic Filtering No Pollution 3




It ' s widely used in paint , beer , vegetable oil , pharmaceutical , cosmetic , chemicals , petroleum products , textile chemicals , sensitization chemical , electroplate , milk , mineral water , hot solvent , milk rubber , industrial water , sweet water , resin , printing ink , industrial waste water , juice , edible oil , etc .


5.Competitive advantages


1, Fully hermetic filtering operation, no leakage, no pollution

2, Once filtering complete clarified, it filtering precision up to PPM.

3, Low filtration cost, and no need of filter paper and filter cloth.

4, Complete recovery, without residual filtrate.

5, The residue is easy to be automatically discharged, only pressing a controlled button.

6, Recovery the filtrate and the filtering residues together.

7, Combined with a computer, the whole filtering process are completely automatic.




6.QC/Technical support


1, Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.

2, Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company.



7.Wearing parts list




(External diameter ×wire diameter × number)

  Main seal gasket

(Thickness X Width X nominal diameter)
DL (T)-1P
