Solid Liquid Filtering Core Precision Filter Carbon Steel Enclosed Cylinder

Place of Origin Jiangsu,China
Brand Name Juneng
Certification CE\ISO
Model Number TL
Minimum Order Quantity One set
Price USD1000-USD10000
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 40 set / months
Product Details
Product Name Solid-liquid Filtering Core Precision Filter Material Carbon Steel/Stainless Steel
Function Solid-liquid Separation Filter Filter Core Material PP、PP Folded、stainless Stleel Filter Core
Filtration Precision 1、3、5、10、15、20、30、50、70、100、125um Working Pressure 0.4MPa
High Light

Solid Liquid Filtering Core Precision Filte

,

Core Precision Filter Carbon Steel

,

enclosed cylinder Candle Purification Filter

Leave a Message
Product Description

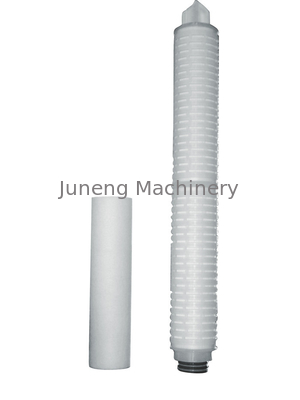

Carbon/Stainless steel solid-liquid filtering core precision filter use PP /PP folded/stainless steel filter core



1.Product Description

TL series filters are accord with the international standard. It’s a kind of solid—liquid separation equipment with high-efficiency, energy-saving , enclosed operation and precision clarification. The traits are unique structure, compact size, easy to assemble the filtering core and clean the filter cylinder conveniently.

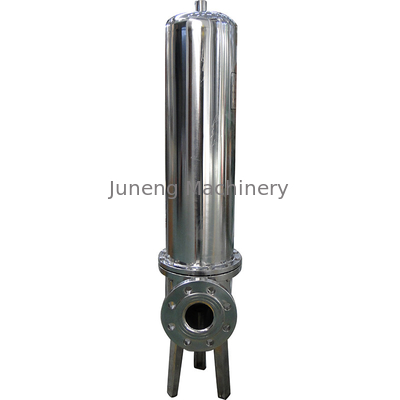

This filter is composed of several filtering cores installed upright in the enclosed cylinder. Compressed filtering is made in the cylinder that depends on filtering cores as the filter medium.



 Solid Liquid Filtering Core Precision Filter Carbon Steel Enclosed Cylinder 0



2.Application scope
1.Beverage and foodstuff

2.Photographic emulsification

3.Pharmaceutical and cosmetic

4.Petroleum chemical material and oil

5.Paint and dry

6.Industrial water




3.Technical data

Model

Shell diameter (mm)

Filtration

Precision(um)

Work
pressure (Mpa)

Work
temperature(℃)

Inlet/outlet caliber



TL(O)-3×500

¢219

1, 3, 5, 10, 15, 20, 30, 50, 70, 100, 125

0.4

120

DN40



TL(O)-6×500

¢273

DN50



TL(O)-8×500

¢300

DN50



TL(O)-12×500

¢400

DN65



TL(O)-22×500

¢500

DN80



TL(O)-35×500

¢600

DN100





Note :

1 . The length of filtering elements of above models is 2 0 " ( equal to 5 0 0 mm ) , also can provide the length with 1 0 ( 2 5 0 mm ) , 3 0 " ( 7 5 0 mm ) , 4 0 " ( 1 0 0 0 mm ) .

2 . The inlet and outlet size can be customized .



Solid Liquid Filtering Core Precision Filter Carbon Steel Enclosed Cylinder 1



4.Compective advantages



1, Small occupancy

2, Flexible operation

3, Energy saving

4, High efficiency

5, Suitable for many industries
