Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity

Place of Origin Jiangsu , China
Brand Name Juneng
Certification ISO/CE
Model Number DPF800
Minimum Order Quantity 1 set
Price USD50000-200000/set
Packaging Details Seaworthy packing
Delivery Time 60 work days
Payment Terms L/C, T/T
Supply Ability 40 set/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Large Capacity Starch Disc Separator Power 90000~132000
Dimension(L*W*H) 2.8*1.5*2.2m Material Food Grade Stainless Steel
Voltage Customized, According To Buyer Advantages Small Vibration,large Capacity,stable Running And So On
High Light

Starch Disc Separator

,

Large Capacity Starch Disc Separator

,

Food Grade Starch Centrifugal Separators

Leave a Message
Product Description

Food grade stainless steel large Capacity starch disc separator



1.Product overview

People will crash and separate the mature crops depend on their physical properties , then obtain starch . So the starch separator is the key in the process of starch extraction .

In the starch separation process , the separator rotates in high speed then creates the centrifugal force , so the separation efficiency is improved . At the same time maximize the production efficiency . We devote ourselves to make Juneng starch separator to the most professional and efficient in starch processing industry , it collects all the advantages of various separator such as small vibration , large capacity , stable running and so on . It ' s mainly used in pre - concentration starch , separation of starch and gluten , concentration of gluten ( protein ) , clarify of process water in the after step and so on .



starch disk separator for starch and gluten separatopn, starch pre-concentrtion, gluten concentration, clarification

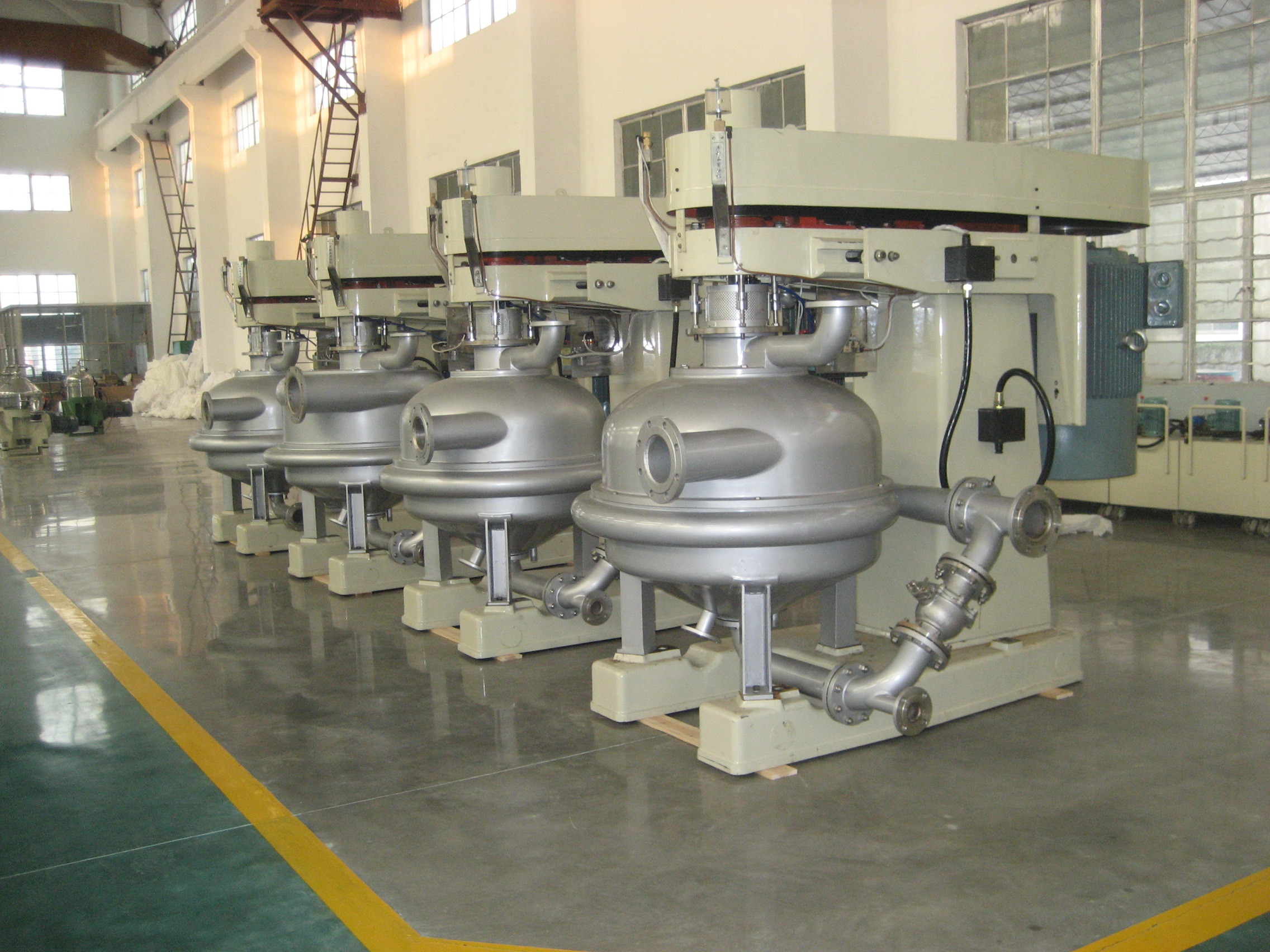

Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 1







2.Technological parameters

Model Throughput capacity (T/H) Max.bowl speed(RPM) Motor power(KW) Weight (kg) Outline size
DPF445 20-35 4500-5200 30 1400 1284*1407*1457
DPF520 25-45 4650 37 1550 1617*1240*1565
DPF600 30-60 2850-4800 75/55 3500 2000*1000*2050
DPF800 22-115 2750-3300 132/110 7800 2800*1500*2200
DPF935 45-225 2250-3050 250/220 11000 3200*1800*3100
DPF960 45-250 2250-3000 250/220 11500 3200*1800*3100
DPF1000 45-300 2250-2950 300/220 12000 3200*1800*3100
DPF1170 50-500 2200-2800 315/250 15000 3500*2000*3300

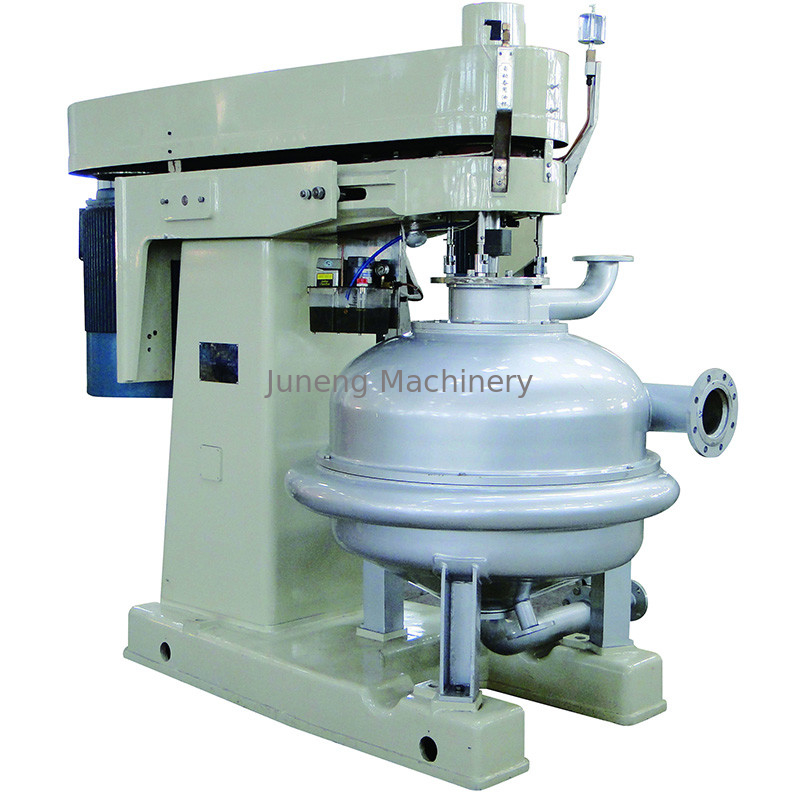

3.DPF800 description
DPF800 disk separator is the main equipment used in the big starch process industry.

The separator mainly consists of base, cantalever, hydraulic oil cylinder, motor ram, main axis suspension device, drum, upper volute and lower volute, etc.



4.Applications

DPF series disc separator applys to :
1,Corn startch and gluten separation;
2,Concentration of gluten;
3,Pre-concentration of starch milk;
4,Clarify; also suitable for other similar product’s separation.

5.Specification
When separate viscous material or the nozzles is blocked, wash the disks, refluent pipe, diffluent pipe, nozzles and the upper volute chamber.
Special Tools
Small bench
Bracket
Bigger bench
Drum lifter
Wrench for lock ring
Drum barrow




6.Features of products

1) Big diameter of drum, large area of disk, strong capacity of production (separation), excellent effect of sepration.
2)Adopting top-suspension driving, which makes the separator with high rotation stability, and largely improves the using life of bearings and main shaft.
3)Adopting automatic control of lubricating oil circuit, which protects and prolongs the using life of driving system.
4) Adopting big nozzles, which has big feed capacity, reduces the chances of block, assuring the continuous production.
5) Fitted with hydraulic system for lifting drum, which makes more easily to check the drum and replace nozzles.
6) The material of drum adopts imported high-strength corrosion-proof stainless steel, whcih assues the safety and stability of separator.
7) This machine can be started up when non-loading.
8) This machine can treat the materials with various concentration without internal adjustment.
9) Fitted with inner circulation system, whcih keeps the stability of separation and good to adjust and control accurately.
10) Operating easily, the workers can master the opertion regulation in short time.





7.Company Profie

Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.

The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City ,permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation.

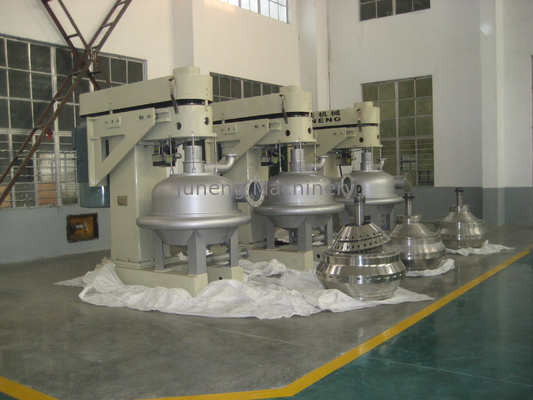

Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 2



7.1 Packing & Delivery

Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 3Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 4



7.2 Test & Inspection



1. Material Test Report

2. Magnetic Particle Examination
3. Nondestructive Examination

4. Liquid Penetrant Examination
5. Dynamic Balancing Test

6. Radiographic Examination

Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 5
Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 6
Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 7
Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 8
Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 9





7.3 Certifications



Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 10Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 11











nozzle corn starch centrifuge separator machine







7.4 Exhibition



Exhibitions We Attended.

We have attended various exhibitions during these years, such as ACHEMA, AchemAsia 2019, ProFood Tech --The Food & Beverage Processing Event,  21st Interphex Week Japan, Spring and Autumn Conton Fair and other domestic fairs.



Food Grade Starch Centrifugal Separators Disc Stainless Steel Large Capacity 13
