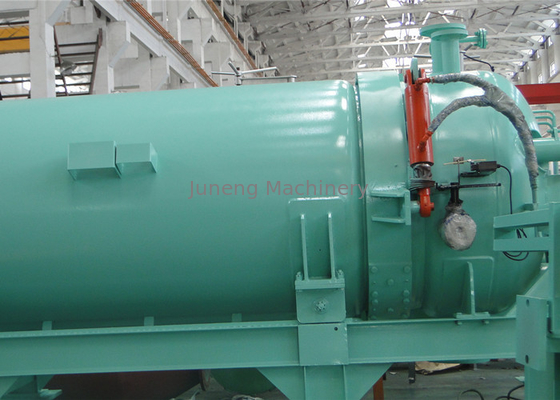

Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement

  • Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement
  • Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement
  • Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement
Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number WYB-YL-TY-80
Minimum Order Quantity 1 set
Price USD15000-200000/set
Packaging Details seaworthy packing
Delivery Time 60 work days
Payment Terms L/C, T/T
Supply Ability 30 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Horizontal Pressure Filters Carbon Steel Single With Carbon Steel Jacket Cylinder Medium Liquid Sulfur
Cylinder Working Temperature 148℃ Jacket Medium Steam
Jacket Working Temperature 158℃ Discharge Type Vibration
Working Principle Cylinder Movement
High Light

Horizontal Pressure leaf Filters With Jacket

,

Steam Horizontal Pressure Leaf Filter

,

Cylinder movement Horizontal leaf Filter
Leave a Message
Product Description

Horizontal pressure filters carbon steel single with carbon steel jacket which filter impurities from molten sulfur



1.Description

WYB series horizontal leaf filter is a fineclarify filtrate equipment with high-efficiency, energy-saving and auto-hermetic.

It is widely used in chemicals,petroleum, foodstuff and pharmacy.

Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement 0



2.Technical parameters

Description Parameters
Inner tank Jacket
Design pressure(Mpa) -0.1/1.05 -0.1/0.55
Design temperature(℃) 163 163
Working temperature(℃) 148 158
Filtering area(m²) 80



3.Structure and characteristics



Cylinder movement when discharging , the steam insulation inlet and outlet pipes on the cylinder are connected with stainless steel metal hoses and fixed with carbon steel metal drag chains. There is no need to disassemble the pipes during operation, which is safe, reliable and convenient to operate.

Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement 1



As the filter is moved into the cylinder movement,,the feeding system has been thoroughly improved, the liquid sulfur into the cylinder is more evenly distributed, the filter cake formed on the filter plate is more uniform, so as to ensure the filter effect is more stable, the liquid sulfur clear flow after filtration transparent.

Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement 2Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement 3



4.Advantages

(1)Fully enclosed filter, no leakage, no pollution;
(2)Solid-liquid separation can be realized under pressure or vacuum state. Filter cakesare evenly distributed when filtering which can get good effect.
(3)Stirring system can stepless speed regulating and multi-function work. It can enlargefurthest for the cake space, thus filter cake can be fully cleaned; the time of drying isreduced greatly, with high efficiency.
(4)Discharge valve can discharge automatically which can lower labor intensity.
(5)Especially suitable for the material that has large solid content, and recovering liquidphase and solid phase respectively.
(6)Adopting horizontal placing filter material, one time completely filtering no remains.
Filter material has unique sealing structure which is easy to be changed.
(7)Stirring, mixing, beating, reacting, washing and multiform process working can bepracticed in the body and it can carry out full automatic control.
(8)Anticorrosion three in one system is made of special material which can be suitable formultiform anticorrosion medium.



5.Company introduction

Juneng Group is a large scale manufacturer of industrialproducts in China with its subsidiaries namely Juneng Machinery (China)Co., Ltd and Jiangsu JunengMachinery Co., Ltd. The Group principally engagedwith the in-house research development as well asmanufacturing of various industrial filters, separatorsand pumps. The Company is proud to be the leaderin such industry with approximately 80% domesticmarket share in Oils Fats industry, Chemical industry,Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-knownproducers and suppliers in the world.

5.1 Our market

Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement 4



5.2 Company shows



Single Steam Horizontal Pressure Leaf Filter With Jacket Cylinder Movement 5
