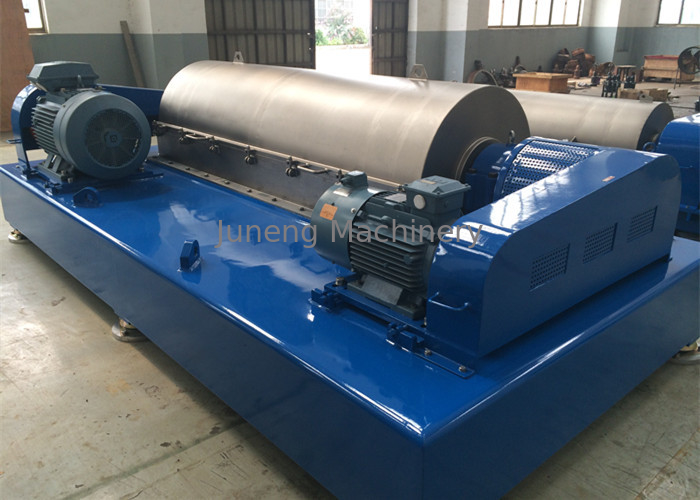

Scroll Horizontal Discharge Decanter Centrifuge Solid Liquid Separation For Kitchen Waste

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number LWS520
Minimum Order Quantity 1 set
Price USD25000-100000/set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 20 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Three-phase Horizontal Scroll Discharge Decanter Centrifuge Dimension 4600X1407X1000
Weight 5000kg Noisy ≤80dB
Material Of Drum 2205 Duplex Stainless Steel Material Of Core Tube 2205 Duplex Stainless Steel
High Light

Horizontal Scroll Discharge Decanter Centrifuge

,

Kitchen Decanter Centrifuge

,

Solid Liquid Separation Decanter Centrifuge

Leave a Message
Product Description

Three-phase horizontal scroll discharge decanter centrifuge solid-liquid-liquid separation for kitchen waste



1.Product Description

The three-phase horizontal scroll discharge decanter centrifuge uses the centrifugal sedimentation principle to continuously separate the solid-liquid-liquid suspension. The centrifuge can not only realize the solid-liquid separation, but also separate the liquid with different specific gravity.

Scroll Horizontal Discharge Decanter Centrifuge Solid Liquid Separation For Kitchen Waste 0

The machine is a continuous and efficient solid-liquid-liquid separation equipment. It has a wide range of applications and good adaptability to materials. It can be widely used in industrial departments such as food waste, gutter oil, chemical industry, light industry, food, papermaking and mining.



2.Main specification and technological parameters

Model LWS520
Handling medium Kitchen waste
Capacity(m3/h) 15
Drum inner diameter(mm) 520
Effective length of drum(mm) 2142
Draw ratio 4.1
Maximum speed of drum(r/min) 3000



3.Characteristics

The discharge structure of separating liquid phase of three-phase centrifuge generally adopts two ways, namely gravity discharge and built-in centripetal pump. The traditional centrifuge adopts gravity discharge structure for separating liquid phase. When adjusting the liquid layer, the liquid layer adjustment plate needs to be replaced, which is time-consuming and laborious, the adjustment accuracy is not easy to grasp, and the separation effect is poor.



Our centrifuge adopts centripetal pump with extrusion structure, adopts on-line adjustment without shutdown, and the light phase is discharged by gravity. The heavy phase is discharged under pressure by centripetal pump, and the light phase is discharged by overflow gravity. The structure can greatly improve the yield of oil extracted from kitchen waste and obtain better economic benefits.





3.Main parts

3.1 Drum

Super  2205 duplex stainless steel, with overall centrifugal pouring and ultra-high strength, provides a separation factor close to 3000G for the centrifuge and improves the recovery of oil phase and solid phase of the separation liquid. It is mainly composed of straight section drum, cone section drum, large and small end caps, etc. Slag discharge openings are evenly distributed on the 360 ° circumference of the drum in the cone section, and a portable cemented carbide wear sleeve is equipped to avoid direct contact between solid materials and the drum, thus damaging the drum.

Scroll Horizontal Discharge Decanter Centrifuge Solid Liquid Separation For Kitchen Waste 1

3.2 Scroll

The core tube is  2205 duplex stainless steel, the blade is SUS316L, the blade surface is polished, the unique cloth mouth of Juneng spiral, and the square replaceable ceramic sleeve is adopted to ensure the freshness of the cloth and no material accumulation.

Scroll Horizontal Discharge Decanter Centrifuge Solid Liquid Separation For Kitchen Waste 2



4.Our company

Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.

Scroll Horizontal Discharge Decanter Centrifuge Solid Liquid Separation For Kitchen Waste 3



In addition, we have obtained CE certificates, ASME U certificate and ISO 9001 certificate.

Scroll Horizontal Discharge Decanter Centrifuge Solid Liquid Separation For Kitchen Waste 4Scroll Horizontal Discharge Decanter Centrifuge Solid Liquid Separation For Kitchen Waste 5Scroll Horizontal Discharge Decanter Centrifuge Solid Liquid Separation For Kitchen Waste 6
