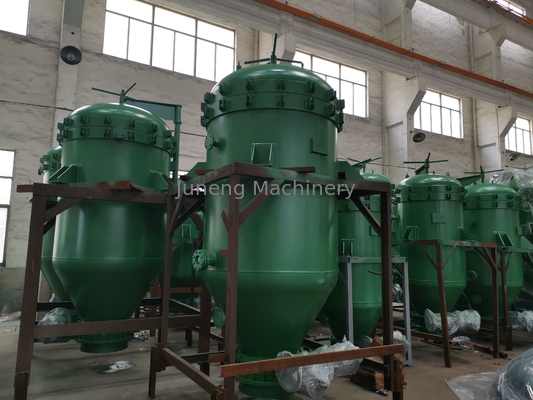

Carbon Steel Vertical Pressure Hermetic Filter High Efficiency Plate Type

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number NYB
Minimum Order Quantity 1 set
Packaging Details seaworthy packing
Delivery Time 50 work days
Payment Terms L/C, T/T
Supply Ability 30 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Vertical High Efficiency Plate Type Pressure Hermetic Filter Material Stainless Steel Or Carbon Steel
Color Design As You Requested Working Pressure 0.4
Design Temperature 0-150°C Or Customized Service 12 Month After Sale Service And Online Guiding
High Light

Carbon Steel Vertical Pressure Leaf Filter


Plate Type Vertical Pressure Leaf Filter


Vertical Leaf Pressure Hermetic Filter

Leave a Message
Product Description

Stainless steel or carbon steel vertical high efficiency plate type pressure hermetic filter


1.Product Description

NYB high efficiency plate type hermetic filter is a high - efficient , energy - saving and hermetically operated fine filter equipment.It is widely used in chemical industry, grease, petroleum, coating, foodstuff, pharmaceutical and other industries.

Carbon Steel Vertical Pressure Hermetic Filter High Efficiency Plate Type 0

2.Outline form and assebly size of filter


Model Shell diameter Space between filter leaf Inlet/Outline caliber Overflow port Discharge port Height Floor space
NYB-2 ⌀400 50 DN25 DN25 DN150 1550 620*600
NYB-4 ⌀500 50 DN40 DN25 DN200 1800 770*740
NYB-7 ⌀600 50 DN40 DN25 DN250 2200 1310*1000
NYB-10 ⌀800 70 DN50 DN25 DN300 2400 1510*1060
NYB-12 ⌀900 70 DN50 DN40 DN400 2500 1610*1250
NYB-15 ⌀1000 70 DN50 DN40 DN400 2650 1710*1350
NYB-20 ⌀1000 70 DN50 DN40 DN400 2950 1710*1350
NYB-25 ⌀1100 70 DN50 DN40 DN500 3020 1810*1430
NYB-30 ⌀1200 70 DN50 DN40 DN500 3150 2030*1550
NYB-36 ⌀1200 70 DN65 DN50 DN500 3250 2030*1550
NYB-40 ⌀1300 70 DN65 DN50 DN600 3350 2130*1560
NYB-45 ⌀1300 70 DN65 DN50 DN600 3550 2130*1560
NYB-52 ⌀1400 75 DN80 DN50 DN600 3670 2230*1650
NYB-60 ⌀1500 75 DN80 DN50 DN600 3810 2310*1750
NYB-70 ⌀1600 80 DN80 DN50 DN600 4500 3050*1950
NYB-80 ⌀1750 80 DN80 DN50 DN600 4500 3210*2100
NYB-90 ⌀1850 80 DN80 DN50 DN600 4650 3300*2200



The machine is a precision clarification and filtration equipment with completely closed operation. No leakage and no environmental pollution; High filtration efficiency, good transparency and fineness of filtrate; There is no material loss in the filtration process, no consumption of filter paper and filter cloth, and the operation cost is low; Convenient equipment operation, maintenance and cleaning; It has a wide range of application and can be applied to the filtration of a variety of materials. During filtration, first form a filter cake layer on the filter screen plate, and conduct actual filtration through the fine particles on the filter cake layer.

Carbon Steel Vertical Pressure Hermetic Filter High Efficiency Plate Type 1


The filter screen is the main working part of the filter. The filter screen is composed of multiple layers of stainless steel nets of different specifications, with filtrate channels between them. The periphery of the filter screen is a rectangular or circular section frame made of stainless steel plate, which is used as the filtrate collection channel, and the filter screen is riveted with the filter screen frame.

Carbon Steel Vertical Pressure Hermetic Filter High Efficiency Plate Type 2




Refining processes such as oil products and chemical products are mainly decolorization and removal of mechanical impurities (i.e. filtering bleaching soil and activated carbon), and filtration is the key. The plate hermetic filter is a kind of intermittent filtration. When the filter residue accumulates to a certain extent, there must be a cleaning step. In order to make the filtration operation continuous, the main machine of the filter must be equipped with two sets. During the filtration process, the filter cake shall not be overfilled. The filter cake can be dried and easily removed only when the filter cake of the two adjacent filter screens is kept at a space of about 2cm. Or when the filtration reaches the maximum allowable filtration pressure (≤ 0.4MPa), slag discharge shall be started.


Carbon Steel Vertical Pressure Hermetic Filter High Efficiency Plate Type 3
